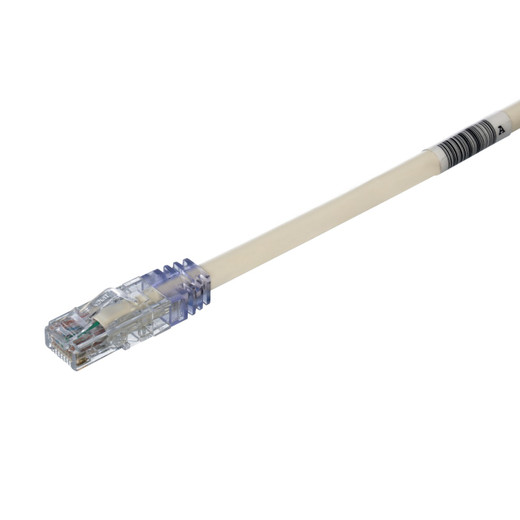

Panduit UTP6AX3 Cat 6A UTP Patch Cord 3ft

Panduit UTP6AX3 Cat 6A UTP Patch Cord

The Panduit TX6A™ UTP6AX3 delivers 10GBASE-T performance in a 3-foot Cat 6A unshielded patch cord engineered for high-density data center interconnects, server virtualization fabrics, and enterprise backbone aggregation. Built on 24 AWG solid copper conductors with integrated foil tape alien crosstalk mitigation, this U/UTP cable exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA specifications across the full 1-500 MHz spectrum. RapidID pre-installed barcodes enable automated port mapping and asset tracking, while the tangle-free modular latch design streamlines moves, adds, and changes in cable-dense environments.

Key Features

• 10GBASE-T Certified: Exceeds TIA-568.2-D Cat 6A and ISO 11801 Class EA standards for reliable 10 Gb/s transmission from 1 to 500 MHz
• Solid Foil Tape Construction: 24 AWG solid copper conductors with U/UTP foil tape shielding minimize alien crosstalk in high-density rack environments
• RapidID Integration: Pre-installed barcode labels enable automated port mapping, MAC address association, and asset tracking via Panduit RapidID software
• Tangle-Free Latch: Snag-resistant modular plug design with fast-release latch reduces installation time and prevents cable damage during MACs
• Full PoE++ Support: Supports IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt Type 3/4 (PoE++) for high-power edge devices up to 90W
• Slim 0.250" Profile: Compact 6.4mm diameter reduces pathway fill and improves airflow in cable management systems
• Dual Wiring Scheme Compatibility: Factory-terminated to support both T568A and T568B termination standards
• CM Rated: UL 1863 and CSA C22.2 certified for general-purpose commercial building installations

The TX6A solid copper conductor architecture distinguishes this patch cord from stranded-conductor alternatives. While stranded cables offer greater flexibility for frequent reconnection, solid conductors provide lower DC resistance and superior high-frequency performance—critical for 10GBASE-T links pushing the upper limits of Cat 6A bandwidth. The integrated foil tape acts as a barrier against alien crosstalk from adjacent cables, a primary concern in 40U racks running 200+ parallel data connections. This construction maintains signal integrity without requiring the diameter penalty and termination complexity of fully shielded F/UTP or S/FTP cables. The off-white jacket maintains a clean appearance in overhead cable trays and structured cabling closets.

Data center architects will recognize the value proposition: this cable directly addresses I/O consolidation challenges in virtualized server environments where a single 10GbE uplink replaces four separate 1GbE connections. The 3-foot length is optimal for top-of-rack switch connections, patch panel cross-connects, and short server-to-KVM runs where cable slack must be minimized to maintain airflow clearances per ASHRAE thermal guidelines. PoE++ Type 4 support makes this cable suitable for high-power access points, PTZ cameras, and 802.3bt-powered switches where both data and power delivery must remain stable under continuous load. Backbone aggregation deployments—where multiple access-layer switches uplink to a distribution layer—benefit from the cable's ability to sustain 10 Gb/s throughput without performance degradation from crosstalk or impedance mismatches.

The RapidID barcode system is Panduit's differentiator for enterprise-scale deployments. Each cable ships with a machine-readable label encoding a unique identifier that links to a database record in Panduit's asset management platform. During installation, technicians scan the barcode to associate the physical cable with specific switch ports, VLANs, and endpoint devices. This creates an auditable chain of custody for compliance-sensitive environments (financial services, healthcare HIPAA, government FedRAMP) and reduces troubleshooting time when tracing connectivity issues across multi-building campuses. The tangle-free latch eliminates the frustration of snagged cables in dense patch-panel arrays, a common source of damage during MAC events that can result in intermittent connectivity and expensive truck rolls. For integrators managing structured cabling retrofits in occupied buildings, this cable's 10-year Panduit warranty and RoHS compliance provides the risk mitigation needed to meet client uptime SLAs and environmental procurement mandates.
