Product Type:

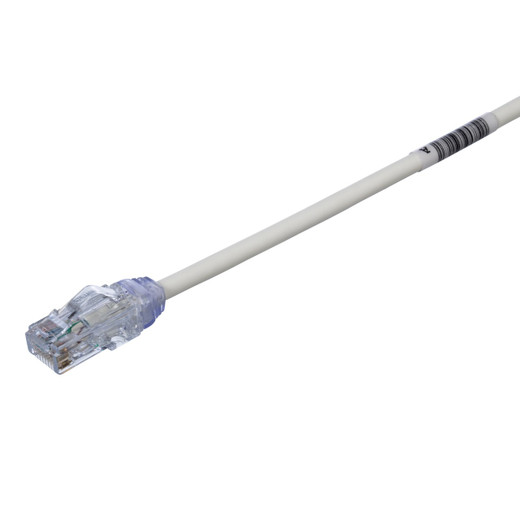

Cat 6A UTP Patch Cord
Brand:
Panduit
MPN:
UTP28X3
Sub-Brand:
Pan-Net®
Product Line:
TX6A-28™
Length:
3 ft (0.91 m)
Cable Construction:
U/UTP (Unshielded Twisted Pair)
Conductor Gauge:
28 AWG
Conductor Type:
Solid Copper
Cable Diameter:
0.185 in (4.7 mm)
Jacket Color:
Off White
Flammability Rating:
CM/LSZH
Connector 1:
RJ45 Modular Plug (8P8C)
Connector 2:
RJ45 Modular Plug (8P8C)
Performance Category:
Category 6A (Class EA)
Bandwidth:
500 MHz
Supported Applications:
10GBASE-T, PoE++, Data Center I/O Consolidation, Server Virtualization, Backbone Aggregation
PoE Support:
IEEE 802.3af/at (48-cable bundle), 802.3bt Type 3/4 (24-cable bundle)
Standards Compliance:
ANSI/TIA-568.2-D, ISO 11801 Class EA, ANSI/TIA-1096-A, IEC 60603-7, UL 1863, CAN/CSA-C22.2, RoHS
Special Features:
RapidID Barcode, Tangle-Free Latch, Centered De-Embedded Plug, Integral Pair Manager
Testing:
100% Factory Tested (Wire Map, NEXT, Return Loss)
Package Quantity:
1
Carton Quantity:
10
UPC:
074983994564
Type:
Patch Cord
Connectivity:
Cat 6A UTP
Poe Power:
PoE++ (802.3bt)
Sub Brand:
Pan-Net®
Application:
(1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5)Parallel processing and high speed computing.
Length Ft:
3
Length M:
0.91
Carton Qty:
10
Package Qty:
1
Upc:
07498399456
Cable Category:
copper-systems
