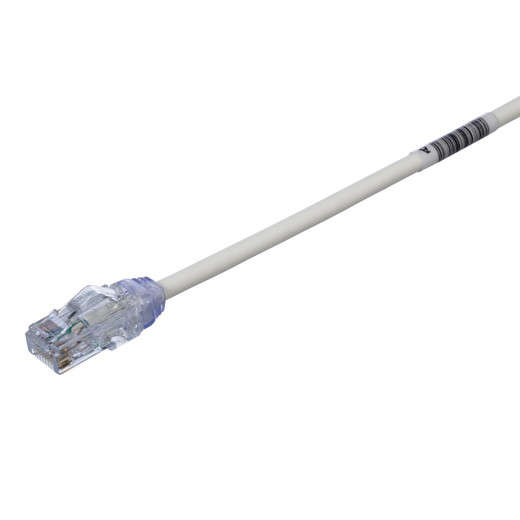

Panduit UTP28X8IN Cat 6A 28AWG 8in Patch Cord

Panduit UTP28X8IN Cat 6A 28 AWG UTP Copper Patch Cord, 8 in

The Panduit UTP28X8IN is an 8-inch Cat 6A patch cord engineered specifically for high-density data center and server room environments where cable congestion chokes airflow and blocks access. At 28 AWG with a 0.185" (4.7mm) diameter—roughly 40% smaller than standard 24 AWG cords—it clears pathways for cooling while maintaining full 10GBASE-T performance to 500 MHz. The tangle-free latch design eliminates the snag-and-yank problems that slow moves, adds, and changes in dense racks, and pre-installed RapidID barcodes let you map ports with a scanner instead of tracing cables by hand. This is the cord for top-of-rack switches, blade servers, and I/O consolidation points where every cubic inch of panel space matters.

Key Features

• 28 AWG solid copper construction, 0.185" diameter—fits 40% more cables per conduit vs. 24 AWG
• Full Cat 6A performance: exceeds ANSI/TIA-568.2-D and ISO 11801 Class EA to 500 MHz, supports 10GBASE-T
• Patented tangle-free latch prevents snags during extraction, speeds MACs in congested patch fields
• RapidID pre-installed barcodes for automated port mapping and asset tracking via Panduit RapidID software
• PoE compliant: IEEE 802.3af/at (48-cable bundles), 802.3bt Type 3/4 (24-cable bundles) per ANSI/TIA-1096-A
• Centered de-embedded plug and integral pair manager maintain geometry through termination
• 100% factory tested for wire map, NEXT, and return loss—every cord ships with verified performance
• CM/LSZH jacket, cULus Listed (UL 1863, CSA C22.2), RoHS compliant

Standard 24 AWG patch cords create two problems in modern data centers: they block airflow between racks (forcing inefficient cooling), and their stiff jackets make dense patching a wrestling match. The TX6A-28 solves both. Its 28 AWG solid conductor construction keeps the cord flexible enough to route cleanly around tight bends without kinking, while the reduced diameter opens space for exhaust air to flow past patch panels. The centered de-embedded plug and Panduit's integral pair manager maintain twist geometry all the way to the contact interface, so you get the full 500 MHz bandwidth even at this smaller gauge. Factory testing verifies wire map, near-end crosstalk (NEXT), and return loss on every cord—eliminating the intermittent link failures that come from field-terminated cables. PoE support extends to 802.3bt Type 4 (up to 100W) in 24-cable bundles, meeting TIA-1096-A thermal limits for sustained power delivery in enclosed pathways.

Deploy the UTP28X8IN anywhere cable density threatens cooling or access: top-of-rack 10GbE switch interconnects, blade server I/O modules, SAN fabric connections, virtualized host uplinks, or breakout panels feeding high-density compute nodes. The 8-inch length is purpose-built for adjacent U-space patching—switch to server in the same rack, or patch panel to switch when mounted back-to-back. In hyperconverged or composable infrastructure, where a single chassis might host 20+ network interfaces within a 2U footprint, the slim profile and tangle-free latch let you terminate all ports without the cable bundle spilling into the next rack. The RapidID barcode system turns documentation into a scan job: use Panduit's mobile app or a Bluetooth scanner to map every port during install, then update the database when you move a connection—no more chasing yellow cables through a rat's nest to find the right link.

This cord meets ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical specs, satisfies IEC 60603-7 mechanical requirements, and carries cULus listing under UL 1863 and CSA C22.2 (UL File E129886). The CM/LSZH jacket provides plenum-equivalent low-smoke, low-toxicity performance for installations under raised floors or above ceilings where fire codes restrict PVC. If you're building or refreshing a data center with 10G or 25G top-of-rack switching, or consolidating I/O on virtualized hosts where every watt of cooling capacity counts, the UTP28X8IN delivers the density, performance, and documentation integration that separates a clean install from a service call waiting to happen.
