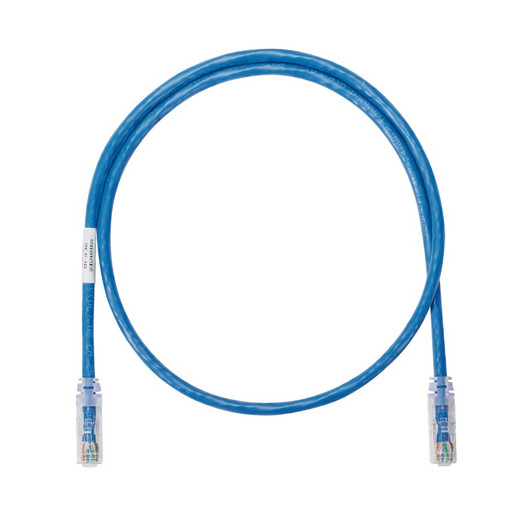

Panduit NK6APC3BU NetKey Cat 6A UTP Patch Cord

The Panduit NK6APC3BU NetKey Cat 6A patch cord delivers commercial-grade 10GbE performance in a compact 3-foot form factor engineered for high-density network installations. Built with 26 AWG stranded copper conductors and unshielded twisted pair (U/UTP) construction, this blue patch cord provides the bandwidth and signal integrity required for modern IP surveillance networks, access control systems, and converged infrastructure deployments. Panduit's patented tangle-free latch design and slender strain relief boot make the NK6APC3BU ideal for integrators managing frequent moves, adds, and changes in equipment rooms, IDFs, and patch panel environments where cable management and accessibility are critical.

Key Features

Cat 6A performance certified to 500 MHz for 10GBASE-T Ethernet applications

Patented tangle-free latch prevents snags during installation and reduces release effort by 50% compared to standard designs

26 AWG stranded copper construction provides flexibility for tight bend radius requirements in high-density rack environments

Slender strain relief boot design enables up to 30% more cables per cable management pathway

100% factory tested for wiremap, NEXT, and return loss performance

Supports IEEE 802.3af/at PoE+ and 802.3bt PoE++ (Type 3/4) power delivery up to 90W for high-power devices

Compatible with both T568A and T568B wiring schemes for universal deployment

CM/LSZH jacket rating provides flame resistance and low smoke/halogen emissions for safe installation

The NK6APC3BU is built around Panduit's enhanced performance modular plugs featuring an integral pair manager that maintains consistent pair geometry throughout the termination. This design eliminates alien crosstalk and ensures the patch cord exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA channel requirements at swept frequencies up to 500 MHz. The 50-microinch gold-plated contacts deliver corrosion resistance and long-term signal reliability across thousands of insertion cycles—critical for environments where patch cords are regularly reconnected during system expansions or troubleshooting. Stranded conductor construction provides the mechanical flexibility needed for work area connections and patch panel jumpers, while maintaining the electrical performance required for high-speed data transmission. The U/UTP cable construction eliminates the added diameter and stiffness of shielded designs, making the NK6APC3BU easier to route through conduit and cable trays while still delivering robust performance in typical commercial building environments.

Integrators deploying IP camera networks, access control panels, and PoE-powered devices benefit from the NK6APC3BU's verified support for 802.3bt Type 3 and Type 4 Power over Ethernet applications, which deliver up to 60W and 90W respectively per port. This makes the patch cord suitable for connecting high-power PTZ cameras, multi-sensor panoramic cameras, door controllers with integrated card readers, and network switches with PoE budget constraints. The 3-foot length is optimized for equipment rack and wall-mount panel connections where longer cables create cable management challenges and shorter cables lack sufficient service loop for future maintenance. The blue jacket provides visual identification in multi-system installations where color-coding is used to differentiate network segments, VLANs, or equipment types—a common practice in commercial security and IT infrastructure deployments.

The NK6APC3BU meets cULus safety standards under UL 1863 and CAN/CSA-C22.2, is RoHS compliant for hazardous substance restrictions, and complies with ANSI/TIA-1096-A (formerly FCC Part 68) for telecommunications equipment. Panduit's NetKey product line is backed by comprehensive third-party performance verification and a 25-year warranty when installed as part of a complete Panduit structured cabling system—providing commercial integrators with the long-term reliability and manufacturer support required for mission-critical infrastructure projects.
