Panduit ISTPH6X0.3MTL 600V Industrial Cat 6A Patch Cord

Panduit ISTPH6X0.3MTL Industrial Cat 6A Shielded 600V Patch Cord

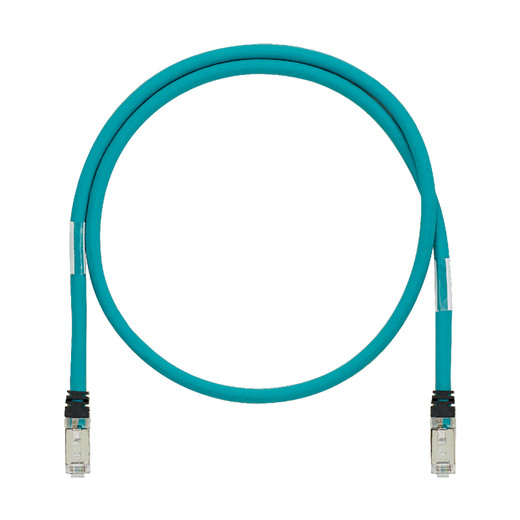

The Panduit ISTPH6X0.3MTL IndustrialNet™ Cat 6A Shielded Patch Cord delivers 600-volt-rated Ethernet connectivity for control panels and on-machine installations where data and power cables share conduit or tight enclosures. This 0.3-meter teal patch cord uses 26 AWG stranded copper in an SF/UTP shielded configuration with industrial bulkhead modular plugs, purpose-built for high-flex robotic applications, C-track cable management systems, and panel-to-panel links subject to vibration and repeated movement. When you're running Ethernet/IP or Profinet alongside 480V three-phase power inside a control cabinet, standard Cat 6A patch cords rated for 300V can create code violations and inspection failures—this 600V UL AWM Style 2463 rated cable eliminates that risk and meets NEC Article 725 requirements for Class 1 circuit sharing.

Key Features

• 600V UL AWM Style 2463 rating allows safe installation in control panels and enclosures shared with high-voltage power circuits
• 26 AWG stranded copper conductors with SF/UTP shielded construction provide flex life exceeding 1 million cycles for robotic and moving-machine applications
• Industrial bulkhead modular plugs with black strain relief boots withstand panel-mount connector abuse and frequent mating cycles
• Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class Ea specifications for 10 Gbps transmission up to 100 meters
• IEEE 802.3af/at compliant for PoE and PoE+ delivery to industrial IP cameras, VoIP phones, and access control panels at full 30W budget
• 0.3-meter length (approximately 1 foot) ideal for short panel-to-panel links, switch-to-DIN-rail-device connections, and tight-space cabinet wiring
• Teal jacket color provides instant visual identification of industrial-rated cabling separate from office-grade infrastructure
• CMR (riser) flame rating and RoHS compliance meet commercial building and international environmental standards

The IndustrialNet™ construction addresses the mechanical demands of factory-floor and machine-control Ethernet that office-grade patch cords cannot survive. The 26 AWG stranded conductors—thinner and more flexible than the 23 AWG solid wire found in horizontal building cable—bend around tight corners inside crowded control cabinets without kinking or breaking. The SF/UTP shielded design (screened foil over unshielded twisted pairs) protects Gigabit and 10 Gigabit Ethernet signals from electromagnetic interference generated by VFDs, servo drives, contactors, and high-current power wiring routed in parallel. The industrial bulkhead plugs use metal bodies and robust strain relief boots engineered for panel-mount jacks subjected to vibration, thermal cycling, and the mechanical stress of cables pulled taut across moving gantries or robotic arms. Standard RJ45 plugs with thin plastic latches fail in these environments—Panduit's industrial connectors are built for 5,000+ mating cycles and pass UL 1863 industrial connectivity testing.

Deploy this patch cord in control panels for machine builders and system integrators connecting PLCs, industrial Ethernet switches, servo controllers, and HMI touchscreens where NEC Article 725 Class 1 circuits (over 30V, up to 600V) share the same wireway or enclosure with data cabling. Standard Cat 6A patch cords carry a 300V or lower voltage rating and technically violate code when bundled with 480V three-phase power feeds—inspectors will flag it, and you'll face costly rework. The 600V rating on the ISTPH6X0.3MTL eliminates that compliance gap. Use it for Ethernet/IP uplinks from the control panel to a consolidation point in an industrial managed switch rack, for Profinet or Modbus TCP links between a PLC and distributed I/O blocks, or for PoE+ delivery to an industrial IP camera mounted on a robot cell enclosure. The 0.3-meter length keeps cabinet wiring clean and minimizes cable slack that interferes with thermal airflow or creates snag points during machine maintenance. The teal jacket differentiates industrial-rated cabling from beige or gray office infrastructure, preventing accidental substitution during expansions or repairs.

Panduit ISTPH6X0.3MTL patch cords meet ANSI/TIA-568-C.2 Category 6A channel and component requirements, ISO 11801 Class Ea international standards, and all ANSI/TIA-968-A telecommunications cabling requirements. UL 1863 approval certifies industrial-grade plug and cable construction. IEEE 802.3af and 802.3at compliance guarantees full PoE (15.4W) and PoE+ (30W) power delivery for IP cameras, wireless access points, and VoIP phones without voltage drop or overheating. The stranded conductors pass UL AWM Style 2463 flex-life testing at 80°C and 600V, validating suitability for robotic applications, C-track cable carriers, and any installation where cables experience repeated bending cycles. RoHS compliance ensures the cable contains no lead, mercury, cadmium, or restricted flame retardants, meeting EU environmental directives and simplifying disposal for international machine exports. When you're wiring an automated production line, a CNC machine tool enclosure, or a packaging system control cabinet where Ethernet shares space with high-voltage power and the installation must pass industrial electrical inspection, the 600V rating and industrial-grade mechanical construction of the ISTPH6X0.3MTL provide code-compliant connectivity that standard office patch cords cannot deliver.
