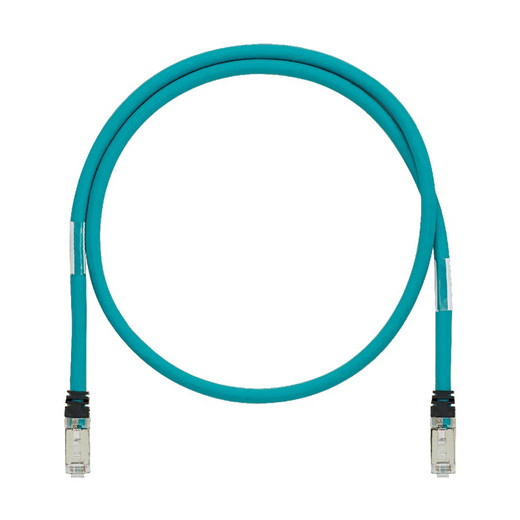

Panduit ISTPH6X10MBL Industrial Cat 6A Shielded 600V Patch Cord

The Panduit ISTPH6X10MBL IndustrialNet Cat 6A patch cord brings data-center-grade networking performance into the harshest industrial environments where standard commercial cables fail. Rated for 600 volts, this 10-meter shielded patch cord is purpose-built for control panels and on-machine applications where Ethernet infrastructure shares conduit and cabinet space with high-voltage power cables. Industrial bulkhead modular plugs with reinforced strain relief boots, 26 AWG stranded conductor construction, and SF/UTP shielding deliver the mechanical robustness and electrical isolation that Industrial Ethernet, EtherNet/IP, and PROFINET deployments demand. Whether you're wiring robotic work cells, C-Track cable carrier systems, or consolidation point uplinks in manufacturing automation, this patch cord handles continuous flexing cycles and electromagnetic interference that would degrade or destroy commodity Cat 6A cables within weeks.

Key Features

• 600V UL AWM Style 2463 Rating: Safely shares raceways with motor drives, VFDs, and power distribution—eliminates costly separate pathways for data cabling
• SF/UTP Shielded Construction: Foil shield over twisted pairs blocks EMI from variable frequency drives and high-current switching, maintains signal integrity in electrically noisy industrial floors
• Industrial Bulkhead Modular Plugs: Metal-shielded RJ45 connectors with rugged strain relief boots survive panel-mount pass-throughs, cable gland installations, and high-vibration machinery mounting
• 26 AWG Stranded Conductor: Seven-strand copper conductors flex repeatedly without work-hardening or conductor fracture—rated for robotic applications and cable track systems with millions of flex cycles
• 10 Meter (32.8 ft) Length: Bridges typical machine-to-panel or panel-to-consolidation-point distances without mid-run splicing
• Gigabit Ethernet + PoE+ Certified: Exceeds TIA-568-C.2 Category 6A channel specs, supports 1000BASE-T data plus IEEE 802.3at PoE+ (25.5W) for IP cameras, access points, and VoIP phones in industrial settings
• CMR Flame Rating: Riser-rated jacket meets NEC requirements for vertical shaft and between-floor installations in industrial facilities
• Black Jacket: Field-proven color coding for data circuits in industrial environments, clearly distinguishes network cables from yellow safety circuits and blue instrumentation wiring

Panduit engineered the ISTPH6X10MBL specifically for industrial Ethernet applications where mechanical stress, electromagnetic interference, and electrical hazards converge. The SF/UTP (shielded foiled/unshielded twisted pair) construction wraps an overall aluminum foil shield around four unshielded twisted pairs, blocking external EMI from motors, drives, and welding equipment while maintaining the bend radius and flexibility advantages of UTP. The 26 AWG stranded conductors—seven individual strands per conductor rather than solid copper—absorb repeated flexing without the metal fatigue failures that plague solid-conductor patch cords in moving applications. Industrial bulkhead plugs feature all-metal shells with 360-degree shielding continuity and integrated strain relief boots molded in black TPE (thermoplastic elastomer), clamping the cable jacket to prevent pull-out forces from reaching the delicate pin contacts. This construction survives the vibration, thermal cycling, and mechanical abuse of factory-floor deployments where standard office-grade patch cords fracture conductors, crack plastic plug bodies, or lose shielding effectiveness within months.

Deploy the ISTPH6X10MBL anywhere Industrial Ethernet protocols—EtherNet/IP, PROFINET, Modbus TCP, or standard TCP/IP—must coexist with high-voltage power distribution. Control panel builders use these 600V-rated patch cords to wire switches, PLCs, HMIs, and I/O modules inside enclosures where 480V motor feeders and 24VDC control power occupy the same wire duct, eliminating the code-required separation distances that commercial 300V-rated cables demand. Machine integrators rely on the high-flex stranded construction for robotic arms, pick-and-place gantries, and automated guided vehicles where cables traverse cable track or drag chain systems through thousands of flex cycles per shift. Manufacturing network engineers specify these shielded patch cords for uplinks from machine-mounted switches to floor-level consolidation points in stamping plants, foundries, and assembly lines where VFD hash and arc welding transients destroy unshielded cable performance. The 10-meter length bridges typical factory-floor distances—machine base to overhead cable tray, robot controller to teach pendant pass-through, panel interior to DIN-rail switch—without the signal degradation, impedance mismatch, and failure points introduced by mid-run couplers or field-terminated connectors.

The ISTPH6X10MBL meets or exceeds ANSI/TIA-568-C.2 Category 6A and ISO/IEC 11801 Class Ea specifications for 10GBASE-T performance up to 500 MHz, ensuring headroom for future network speeds even though most industrial applications today run Gigabit or Fast Ethernet. UL 1863 listing and UL AWM Style 2463 (80°C 600V) certification confirm it meets National Electrical Code requirements for data cables in shared power/data raceways. IEEE 802.3af and 802.3at PoE+ compliance means you can power industrial IP cameras, wireless access points, and VoIP phones through the same cable carrying data—critical for converged networks in warehouses and production facilities where separate power drops are impractical. RoHS compliance ensures the cable contains no lead, mercury, or banned substances, meeting EU and California environmental regulations for equipment exported or deployed in regulated markets. When your application demands Ethernet connectivity in spaces where voltage, vibration, and EMI make standard commercial patch cords a liability, the Panduit ISTPH6X10MBL delivers the electrical safety ratings, mechanical durability, and performance certifications that keep industrial networks running.
