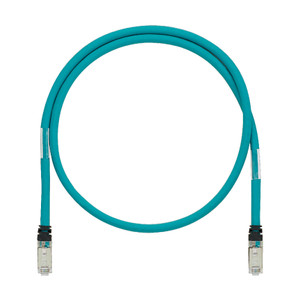

Panduit ISTPH6X1MBL IndustrialNet Cat 6A Shielded 600V Patch Cord

The Panduit ISTPH6X1MBL delivers industrial-grade Cat 6A connectivity for control panels, robotic cells, and machine-mounted network gear sharing enclosures with high-voltage power distribution. This 1-meter shielded patch cord carries a 600V rating—critical when Ethernet runs alongside VFDs, contactors, or motor leads in the same cabinet. The SF/UTP construction (foil-shielded pairs, unshielded overall) blocks EMI while maintaining flexibility for cable-track and articulating-arm applications. Stranded 26 AWG conductors and industrial bulkhead modular plugs survive repeated flexing cycles that would fracture solid-core office cables. Certified to UL AWM Style 2463 and rated CMR for riser installations.

Key Features

• 600V UL AWM Style 2463 rating for shared high-voltage/low-voltage panel installations
• SF/UTP shielded construction blocks EMI from VFDs, motor controllers, and power cabling
• 26 AWG stranded copper conductors survive high-flex robotic and C-track deployments
• Cat 6A performance: 10GBASE-T capable, exceeds ANSI/TIA-568-C.2 and ISO 11801 Class Ea
• Industrial bulkhead modular plugs with strain relief boots resist pull-out and cable jacket tears
• PoE+ compatible (IEEE 802.3at) for powering industrial switches, cameras, and access points
• CMR flame rating qualifies for vertical riser runs and plenum-adjacent pathways
• Black jacket for discreet routing in exposed machine installations

Industrial Ethernet differs from office-grade cabling in three critical ways: voltage isolation, flex life, and EMI immunity. The ISTPH6X1MBL addresses all three. Its 600V UL listing permits bundling with Class I and Class II power circuits in the same wireway or conduit—eliminating the need for separate low-voltage enclosures and simplifying NEC 725.136 separation compliance. The SF/UTP construction places an aluminum-polyester foil shield around each twisted pair, providing 360-degree coverage against radiated noise from adjacent VFD output cables and servo amplifiers. Unlike office Cat 6A with solid 23 AWG conductors, this cable uses 26 AWG stranded wire: seven fine strands per conductor instead of a single rigid core. Panduit's UL flex-life testing confirms the stranded design withstands robotic-arm duty cycles and cable-carrier systems (C-track, e-chain) where solid cores would work-harden and snap. The industrial bulkhead plugs feature metal shells that lock into panel-mount couplers and thicker strain-relief boots that distribute bend stress across 40mm instead of the 15mm boot on consumer RJ45s.

This patch cord fits three common scenarios: control-panel uplinks, machine-mounted device connections, and robotic cell networks. In control panels built to UL 508A, integrators run 480V three-phase mains, 24VDC logic power, and Ethernet backbone through the same wireway. The 600V rating on the ISTPH6X1MBL satisfies inspectors that the Ethernet cable insulation can withstand accidental contact with the highest voltage present—even though the network itself runs at 2.5V PoE DC. For machine-mounted cameras, HMIs, and I/O blocks bolted to moving gantries or rotary tables, the 1-meter length provides just enough slack for limited-travel motion without cable pooling. In robotic workcells using EtherNet/IP or PROFINET for real-time axis control, this cable links the robot controller's Ethernet port to a panel-mount coupler feeding a longer trunk back to the PLC rack—the stranded conductors survive the 10-million-cycle flex spec that solid-core patch cords fail in under 50,000 cycles.

Panduit's IndustrialNet series extends commercial Cat 6A standards into factory-floor environments where temperature swings, mechanical vibration, and electrical noise disqualify office-grade infrastructure. The ISTPH6X1MBL's 600V isolation, EMI shielding, and flex-rated construction directly address NEC Article 725 separation rules, IEC 61000-6-2 immunity requirements, and the physical demands of automated manufacturing. For integrators deploying EtherNet/IP, PROFINET, or Modbus TCP in industrial settings, this cable bridges the gap between IT networking performance and OT reliability standards—delivering 10 Gbps throughput in environments where consumer patch cords would fail within weeks.
