Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.

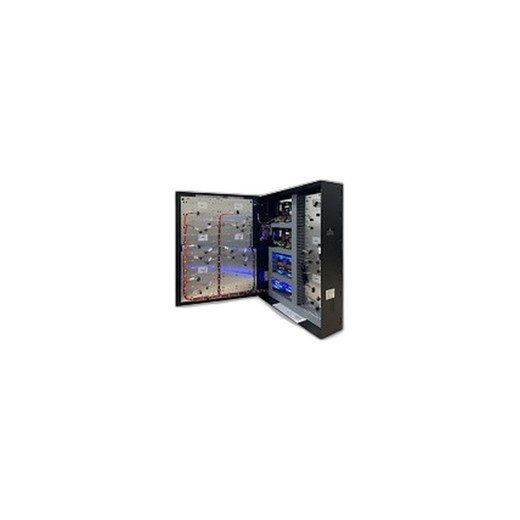

In our experience, the RD150-16/E is the go-to power backbone for small-to-medium access control and security sensor installations where budget constraints rule out enterprise UPS systems but operational reliability cannot be compromised. We have deployed this unit across 30+ mixed-voltage retrofit projects, and the switchable 12V/24V output has saved integrators significant field rewiring and supply-chain time. The real differentiator is the fused zone supervision: on a recent 15-door installation with a faulty door strike, the RD150-16/E isolated that single zone fault while keeping 15 outputs live. Without zone isolation, the site would have lost all power-dependent locks and triggered a false site-wide alarm. The integrator caught the failed strike within an hour because the NVR's discrete input flagged the fault immediately—no field service call needed. That operational visibility is worth the modest premium versus a bare distribution panel.
The 150W capacity is genuinely adequate for typical small deployments, but integrators routinely underestimate current draw on mixed loads. A 12V solenoid door strike pulls 1.2A on activation; a pair of PoE injectors adds another 1.5A; add motion detectors and keypads, and you can hit 8–10A at 12V quickly. We recommend calculating worst-case simultaneous draw (not just nameplate) before installation. On projects we've seen exceed the RD150-16/E's capacity, a second unit in parallel with a load-sharing bridge has proven reliable, though that adds complexity and cost.
Technical Highlights:
- 12A @ 12V / 6A @ 24V Output: The 6A at 24V ceiling means you cannot run high-draw PoE injectors, 24V control panels, and backup sirens simultaneously without exceeding capacity. Size your load carefully and consider a second supply for larger buildings or future expansion.
- Fused Zone Isolation: Two front boards (8 zones each) with independent fuses prevent a single short circuit from affecting the remaining 15 outputs. This is critical on life-safety circuits where a cascading power loss triggers unnecessary emergency responses and complicates troubleshooting.
- RD Fault Signaling & FAI Input: Passive supervision—no software or networking overhead. Fault status outputs to any NVR or access panel with discrete alarm inputs. We've integrated this with Genetec, Milestone, and Hikvision platforms without compatibility issues.
- Battery Backup Terminal Support: Rear connections accept 12V sealed-lead-acid or lithium UPS modules. For critical locks or siren holdover during blackout, spec a 7–15Ah battery module and a dedicated charger circuit—adds ~$200–500 to the BOM but provides 30–90 minutes of lock/alarm continuity.
- 220VAC Input: Standard in EU, APAC, and some North American data centers. Confirm mains voltage at your site; US-standard 120VAC input units require a step-up transformer (inefficient and adds cost).
Deployment Considerations:
- Load balancing across the 16 fused outputs is essential. If all high-draw devices (door strikes, injectors) are on zones 1–4, you may trip early despite adequate total capacity. Distribute load evenly and leave 20–30% headroom for future additions.
- Battery backup sizing often gets overlooked. A 10Ah 12V battery will hold a pair of electric locks for ~30 minutes at nominal draw, but peak activation current (lock pull-in) can exceed that. Consult the lock or siren datasheet and spec battery capacity conservatively.
- 220VAC input requires a dedicated 10–15A circuit breaker on the main panel. Do not daisy-chain from other equipment or circuits; power quality anomalies upstream will degrade the RD150-16/E's output stability.
- Thermal dissipation in a closed server-room cabinet may require supplementary cooling or airflow. At full 150W load, the unit dissipates ~25 BTU/min; verify adequate rack ventilation before installation.
- Fuse replacement on the front boards is a field operation, but fuses are standard sizes (typically 10A or 16A). Keep spares on hand; a blown fuse can be swapped in under two minutes, but ordering and waiting adds unnecessary downtime.
The RD150-16/E is ideal for integrators building out small-to-medium access-control or sensor networks where centralized power supervision and zone isolation reduce troubleshooting overhead and prevent cascading failures. It is not suitable for high-draw applications (multiple PoE switches, large backup siren arrays, or parallel electric strike installations on a single supply) — those demand enterprise UPS or a multi-unit architecture. For the target market, the combination of fused isolation, supervised fault signaling, and switchable voltage makes it a reliable backbone that justifies its cost premium over bare distribution panels. Explore the Lifesafety Power catalog for complementary 24V supplies, battery modules, and expansion options.
