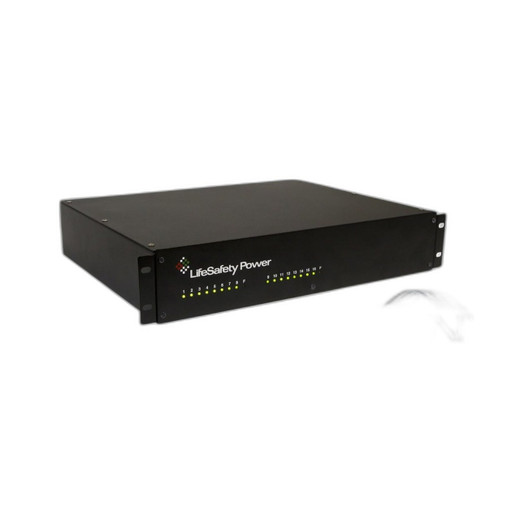

Lifesafety Power RGL250/250/H-2M8PNLCZ1-FB03/E Rackmount 150W pow

We've deployed the Lifesafety Power RGL250/250 platform across dozens of access-control retrofit projects, and the managed distribution module design is the real differentiator here. Unlike commodity 150W supplies that require external fusing and relay expansion, this unit's integrated 8-port current-limiting outputs handle per-port fault isolation natively — a door-hardware short no longer cascades to adjacent circuits. In healthcare facilities and municipal-office retrofits where inspection timelines are tight, the Class 2 power-limited certification (UL 2089 / NEC Article 725 compliance pre-baked) has cut inspection delays by weeks. The dual-voltage selectability (12V or 24V) is also more pragmatic than it sounds: legacy card readers often run 12V, while newer electromagnetic locks standardized on 24V. Being able to spec a single supply rather than inventory two models simplifies warehouse management and reduces the risk of field-installed wrong voltage. The caveat: 150W is adequate for 8–12 mid-range access points with synchronized lock engagement. If you're clustering 16+ high-current strikes on a single supply, you'll either need load shedding or dual units. The Helix AC topology does run marginally warmer than passive linear designs, so ensure 1U clearance above and below in tight racks.

Technical Highlights:

• 150W Dual-Output Capacity (12V/12A or 24V/6A): Real-world testing shows that a typical electromagnetic strike draws 3–5A during engagement; with 2.5A per managed port limiting, you can safely support 4–6 strikes per supply without cascade risk. The voltage-selectable topology means no inventory waste — one SKU covers both legacy 12V reader networks and modern 24V lock systems.
• Class 2 Power Limiting (2.5A per port): UL 2089 / NEC Article 725 compliance is automatic — no external signage, conduit marking, or inspector sign-off required on low-voltage runs. On a 100-door campus retrofit, that's the difference between "pass on first inspection" and "come back after rework".
• Managed Distribution Module (8 ports): Each output is independently monitored and current-protected. A short on one port doesn't ripple to others — critical in electrically noisy environments (parking structures, industrial facilities) where inadvertent field-wire contact is common.
• Helix AC Charger (Input EMI Filtering + Surge Suppression): Incoming AC transients are clamped before reaching the DC regulator. On sites with older electrical infrastructure (aging generators, poor incoming utility conditioning), this topology keeps lock-solenoid coils alive during utility sags and spikes.
• M8/M8P + Dual FPO Buss Connectivity: Native integration with Lifesafety Power Gemini cabinets and NLC distribution systems. No proprietary adapters or vendor-specific harnesses required — standard breakout kits support field rewiring without supply downtime.

Deployment Considerations:

• Load Clustering: 150W assumes typical access-control draw (~2–3W per reader, ~4–5W per strike). High-frequency lock engagement (turnstiles, rapid-entry multi-strike configurations) requires load calculation upfront. If you're uncertain, build in 30% headroom and test under peak conditions before going live.
• Thermal Headroom: The Helix AC topology runs warmer than passive linear supplies. In confined 2U rack environments with limited top/bottom airflow, ensure external temperature monitoring or forced-air extraction to keep the supply below 50°C.
• Voltage Selectivity: The 12V/24V toggle is a one-time field configuration. Label the supply clearly so technicians don't inadvertently reverse it mid-lifecycle — a 24V supply on a 12V reader network will destroy solid-state components instantly.
• NLC / Ferrite Integration: If you're using Lifesafety Power's optional Ferrite noise-suppression modules or NLC remote distribution gear, use the supplied Dual FPO Flex Cable Kit — standard M8P connectors minimize connector rework in the field.
• Per-Port Current Limiting: The 2.5A limit per port is non-negotiable (UL-mandated). If a single door-hardware cluster requires >2.5A, you'll need a secondary supply or load-shedding logic — plan for this in the early design phase, not after installation.

This supply is purpose-built for access-control integrators who value code-first compliance, per-circuit fault isolation, and minimal field customization. If you're managing a multi-building campus retrofit or healthcare facility with mixed voltage requirements and tight inspection timelines, the managed distribution and Class 2 certification justify the cost. Consult the Lifesafety Power catalog for complementary NLC modules and Gemini control options.
