Kantech KT-4DE2-WTA 4-Door Access Control Enclosure Pre-Wired

Overview

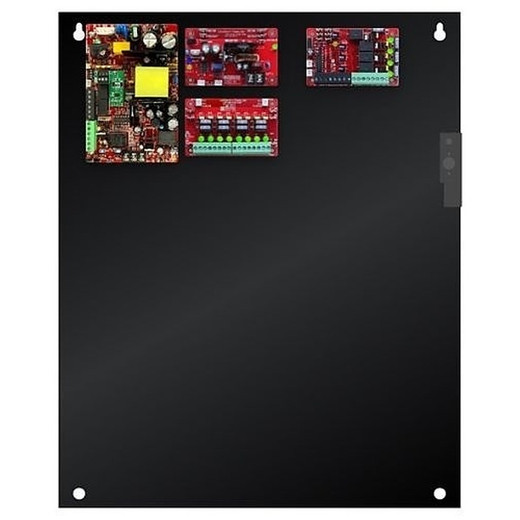

The Kantech KT-4DE2-WTA is a factory pre-wired 4-door access control enclosure designed to cut installation labor on multi-door commercial deployments. Every internal connection arrives wired and tested in the factory — no field technician has to wire point-to-point inside the cabinet. This matters on multi-location rollouts or retrofit projects where wiring time directly eats into project budgets and introduces field error risk. The unit accepts 120VAC, 208VAC, or 230VAC input (50/60Hz) and delivers both 12VDC and 24VDC outputs with fused lock and auxiliary distribution, all controlled by the onboard KT-1-PCB/2/4 access control panel. A managed dual-voltage power architecture means you're not locked into a single supply voltage — useful when your facility's main panel or UPS only offers one option.

Compatibility

This enclosure integrates with Kantech's KT-1-PCB/2/4 access control panels. The KT-4DE2-WTA is part of the Kantech Unified Power Systems family, which pairs access control logic with LifeSafety Power battery management on a single removable backplate. It supports 4-door configurations as a standard pre-wired module. The fused lock and auxiliary outputs are managed by the KT controller relays, protecting the panel from high-current lock switching. Onboard fire alarm interface (FAI) enables emergency door release across all four doors on trigger.

Installation Notes

The enclosure arrives with internal wiring secured via tie wraps and factory-installed harnesses connecting the power distribution modules to the KT-1-PCB/2/4 controller backplate. Operating temperature range is 32 to 122°F (0 to 50°C) — verify your equipment room stays within this window, especially if the enclosure is mounted near heat sources. Input voltage selection (120, 208, or 230VAC) must match your facility's available supply; dual-voltage design means no adapter is needed across regional or international sites. The predrilled backplate simplifies cabinet mounting. No additional field wiring harnesses are required between the controller and power outputs — this is the central labor savings versus a non-pre-wired unit.
