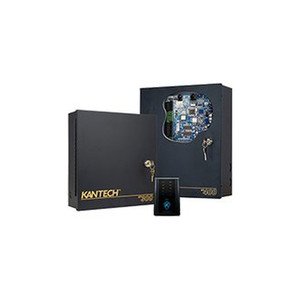

Kantech KT-16DNE6-WTA 16-Door ProWire Network Enclosure Pre-Wired
Overview
The KT-16DNE6-WTA is a factory pre-wired, all-in-one access control power enclosure rated for up to 16 doors. It solves the integration bottleneck in multi-door deployments: by arriving fully assembled with internal wiring harness, cable routing, and power distribution already completed, it cuts field installation labor by eliminating on-site configuration. This enclosure is built for security integrators managing mid-to-large campus deployments, hospital systems, or multi-building facilities where standardized, repeatable hardware reduces commissioning time and lowers the risk of field-wiring errors.
Compatibility
The KT-16DNE6-WTA is designed to work with Kantech KT-1-PCB/2/4 controllers mounted on the predrilled factory backplate. It provides integrated power and distribution for Kantech access control panels running ProWire protocol. The enclosure supports both lock power and system power draw from the KT controllers, with onboard fire alarm interface (FAI) for emergency door release integration. Verify your existing or planned Kantech controller model matches the KT-1 family before procurement.
Installation Notes
Input voltage is user-selectable: 120VAC, 208VAC, or 230VAC at 50/60Hz. The enclosure outputs both 12VDC and 24VDC with fused lock and auxiliary outputs controlled by the KT controller relay logic — this dual-voltage design means you can power different lock types from the same unit without additional external supplies. Operating temperature range is 32–122°F (0–50°C). Prewired configuration includes factory-installed point-to-point documentation; no additional internal cabinet wiring is required by field installers. The predrilled backplate accepts standard screwdriver-mount KT modules, reducing assembly time on-site. Battery system (SLA or LiFePO4 options) management is onboard, with 50% faster recharge cycles and automatic deep-discharge cutoff to extend battery life.
What's in the Box
- KT-16DNE6-WTA enclosure with factory-installed power distribution modules
- Prewired internal harness assembly
- Predrilled backplate for KT-1-PCB/2/4 controller mounting
- Point-to-point wiring documentation
