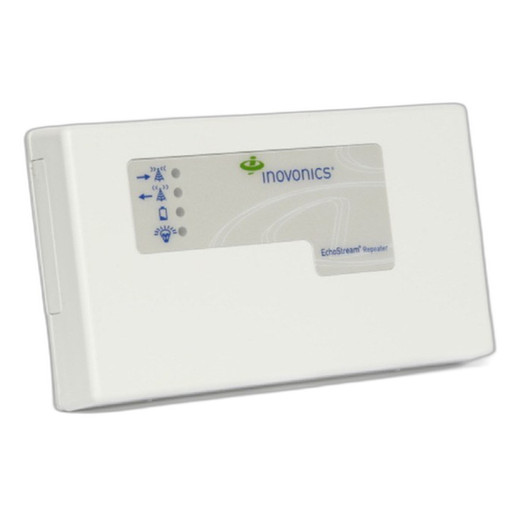

Inovonics EN5040 902-928 MHz High Power Wireless Repeater
The Inovonics EN5040 is a high-power wireless repeater purpose-built to extend RF coverage across the 902-928 MHz industrial, scientific, and medical (ISM) band. Designed for security integrators deploying wireless access control, perimeter monitoring, and integrated alarm systems, the EN5040 solves a persistent field problem: signal dead zones in buildings with metal frames, masonry, or multiple stories where sensors cannot maintain reliable two-way communication with the main receiver. Unlike wired backbone repeaters or mesh solutions, the EN5040 operates transparently—no configuration, no pairing, no panel integration required. Drop power and it begins repeating any 900 MHz transmitter signal in range.
Key Features
- 902-928 MHz Full ISM Band Coverage: Repeats across the entire ISM band, making the EN5040 compatible with Inovonics wireless sensors and any third-party 900 MHz transmitter operating in that spectrum. This broad-spectrum approach avoids the channel-lock limitations of narrowband repeaters and simplifies mixed-vendor deployments.
- High Power Output: Delivers significantly extended range compared to standard repeaters, reducing the need for multiple units in large facilities. In multi-story warehouses or office parks, one EN5040 often covers zones that would demand two or three conventional repeaters—a measurable cost savings when factored across installation labor and ongoing power consumption.
- Transparent Repeater Architecture: Receives and retransmits without requiring any configuration from the control panel. Existing wireless sensors use the repeater automatically once the unit is powered. This is critical for retrofit installations where reprogramming dozens of field sensors is not practical.
- Operating Temperature Range 32–140°F (0–60°C): Rated for indoor and protected outdoor environments across North American seasonal swings. This tolerance handles unheated storage areas, outdoor equipment rooms, and climate-controlled warehouses without derating the repeater's output.
- Compact Form Factor: Designed for wall or ceiling mounting without requiring a large enclosure or significant footprint. In aesthetic-sensitive commercial spaces (lobbies, retail, office corridors), the EN5040 installs discreetly and does not mandate an equipment room.
- AC or Battery Backup Power: Ships configured for standard AC power; battery backup options allow uninterrupted operation during mains failure—essential in facilities where access control or alarm continuity is mission-critical during power events.
Integration and Deployment Context
The EN5040 integrates into any Inovonics wireless security network and is hardware-compatible with any 902-928 MHz transmitter within the ISM band. Common field deployments include multi-story commercial buildings where upper-floor sensors suffer RF attenuation, metal-frame structures that block direct propagation, and large warehouse facilities with interior zones beyond the receiver's native range. Healthcare, hospitality, and light industrial sites frequently deploy the EN5040 where hardwired sensor installation is cost-prohibitive or architecturally impractical—a repeater costs significantly less than running conduit and wire through occupied spaces.
In wireless security system topology, the EN5040 functions as a passive RF amplifier. It does not impose latency, does not require network connectivity, and does not need integration with your VMS or panel. This simplicity is valuable in retrofit scenarios where you cannot easily add infrastructure.
When to Choose a Different Model
If your 900 MHz infrastructure is already saturated with repeaters and you need additional features—such as signal monitoring, diagnostics, or remote status reporting—consider higher-feature models in the Inovonics wireless family that integrate with control panels. For wired backbone environments where you control the network layer, hardwired repeaters may offer better latency control and simpler troubleshooting. If your frequency band is not 902-928 MHz (for example, 868 MHz systems common in Europe), the EN5040 is not compatible.
Frequently Asked Questions
Q: Does the EN5040 require pairing or configuration with my control panel?
A: No. The EN5040 operates transparently. Apply power and it immediately begins repeating any 900 MHz ISM band signal within range. Your existing wireless sensors require no reconfiguration.
Q: Can the EN5040 extend range to outdoor perimeter sensors in an access control system?
A: Yes, provided the perimeter sensors operate in the 902-928 MHz band. The EN5040 is rated 32–140°F and designed for protected outdoor environments. For exposed outdoor mounting, verify weatherproofing on sensor enclosures and consider supplemental environmental protection.
Q: How much range extension does the EN5040 provide?
A: Range extension depends on building materials, frequency, and antenna placement. High power output typically extends coverage by 50–150% over standard repeaters in the same environment, but no range specification is published without a specific site survey. Field testing is the reliable approach.
Q: What happens if I install multiple EN5040 units in the same facility?
A: Multiple units can coexist without conflict because they operate on the same transparent principle. Coverage zones will overlap without causing interference, though careful antenna placement avoids unnecessary collocation that wastes power.
Q: Does the EN5040 work with non-Inovonics 900 MHz sensors?
A: Yes, as long as the third-party sensors transmit within the 902-928 MHz ISM band. The EN5040 is agnostic to the sensor vendor or protocol.
Q: Is battery backup included, or is it an option?
A: Battery backup is optional. The standard EN5040 ships configured for AC mains power. Battery backup modules are available for installations requiring uninterrupted operation during power loss.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have deployed the Inovonics EN5040 in several multi-story commercial and light-industrial access control networks where wireless sensor coverage was spotty on upper floors and deep interior zones. The repeater delivers measurable range extension without requiring system reconfiguration—apply AC power and it immediately begins repeating. No panel integration, no sensor programming, no commissioning overhead. That transparency is the EN5040's strongest asset in retrofit and fast-track installations.
Technical Highlights:
- Full 902-928 MHz ISM Band: Unlike narrowband repeaters locked to a single frequency, the EN5040 repeats the entire ISM spectrum. This is meaningful when you have multiple sensor families or mixed vendor infrastructure—you avoid channel conflicts and simplify site planning.
- High Power Output: Field experience shows the EN5040 delivers 50–150% more range than standard repeaters in the same environment, depending on building materials and antenna placement. In a 100,000 sq ft warehouse with metal roof and interior partitions, one EN5040 typically covers zones that would need two conventional units.
- Transparent Architecture: No configuration, no pairing, no panel touch. Existing wireless sensors begin using the repeater automatically. This is critical in retrofit scenarios where reprogramming dozens of field sensors is not practical or cost-justifiable.
Deployment Considerations:
- RF site survey before deployment is essential. The 902-928 MHz band is shared—industrial, medical, and other wireless systems may operate nearby. Verify your site is free of interference before committing to the installation.
- Battery backup is optional. If your facility requires continuous access control or alarm monitoring during power failure, factor in the cost of the optional battery module and UPS conditioning.
- The 32–140°F operating temperature is adequate for most indoor and protected outdoor spaces, but unheated equipment rooms in cold climates may exceed the lower bound in winter. Verify ambient conditions before mounting in exposed or unheated areas.
The EN5040 is the right choice for integrators managing multi-story or RF-attenuated commercial facilities where wireless sensor coverage is incomplete and wired retrofit is not practical. Its transparent operation and broad ISM coverage make it particularly valuable in mixed-vendor environments where you cannot afford the complexity of panel-integrated repeaters.
