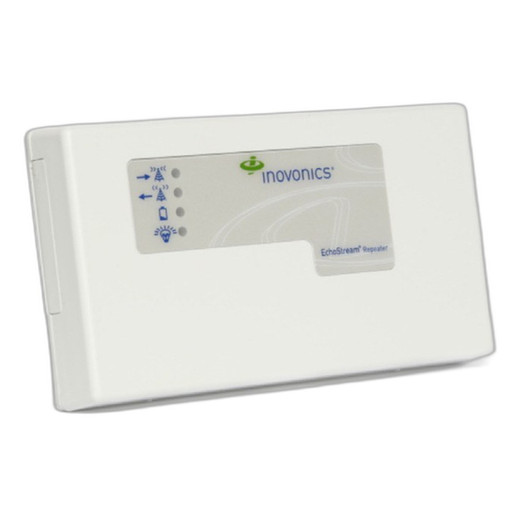

Inovonics EN5040-T High Power Wireless Repeater
Overview
The Inovonics EN5040-T is a high power wireless repeater engineered to extend RF coverage in security system deployments where distance or building materials create signal dead zones. Operating in the 902-928 MHz industrial, scientific, and medical (ISM) band, the EN5040-T amplifies and retransmits wireless signals from compatible sensors and endpoints without requiring wired connections between them. This approach is practical for multi-building campuses, large warehouses, and facilities where running new cable infrastructure would be prohibitively expensive or disruptive. The transformer-based power supply and simple passive relay operation mean integrators can deploy the EN5040-T with minimal configuration overhead—it monitors the operating band continuously and amplifies any signal it detects, making it transparent to devices from any manufacturer operating on the same frequency.
Key Features
- 902-928 MHz Operating Frequency: Operates in the unlicensed ISM band, compatible with most wireless security sensors, door contacts, motion detectors, and other devices designed for this frequency range. No frequency coordination or licensing required.
- High Power Transmission: Amplified signal strength extends wireless range across larger coverage areas and through structural barriers (concrete, metal studs, multiple floors). Eliminates the need to reposition endpoints or add additional hardwired infrastructure.
- Passive Relay Architecture: No programming, pairing, or configuration required. The EN5040-T continuously monitors and amplifies signals within its operating band—this passive approach means it works with any device brand or sensor type on 902-928 MHz, reducing compatibility risk in mixed-vendor environments.
- Transformer-Equipped Power Supply: Integrated transformer provides stable, regulated power delivery for 24/7 continuous operation in security applications. Reduces the need for external power conditioning and simplifies AC installation in commercial security deployments.
- Wide Operating Temperature Range (32°F to 140°F / 0°C to 60°C): Reliably handles both climate-controlled indoor installations and uncontrolled environments—outdoor equipment closets, parking structures, non-climate-controlled basements, and intermediate zones where building materials block wireless signals. Temperature stability is critical for consistent RF performance across seasonal changes.
- Wireless Signal Relay Without Direct Wired Connection: Extends coverage in point-to-point and multi-node topologies without requiring a cable run between the repeater and endpoints. Useful in retrofit projects where running conduit is impractical, and in new construction where the repeater can be positioned strategically in hallways, stairwells, or intermediate zones to bridge RF gaps.
Integration and Deployment Context
The EN5040-T integrates transparently into existing 902-928 MHz wireless security systems. Because it operates as a passive amplifier with no configuration or programming, compatibility concerns across different device manufacturers and sensor types are eliminated—any wireless device transmitting on the 902-928 MHz band will have its signal relayed. System designers position the EN5040-T in strategic intermediate locations to overcome distance and obstruction challenges. In campus-wide deployments, a single repeater can extend range from a central hub to outlying buildings; in large indoor facilities, placement in hallways or mechanical rooms can bridge RF dead zones created by structural materials. The transformer-based power approach aligns with common 24/7 AC power infrastructure already present in commercial security installations, simplifying power planning.
When to Choose a Different Model
If your system requires mesh networking capabilities, automatic signal routing, or dynamic frequency selection, investigate repeater models with active relay and network protocol support. The EN5040-T's passive relay approach is deliberately simple—it amplifies and retransmits whatever signal it receives without error correction, routing intelligence, or frequency hopping. For systems where devices must discover repeaters dynamically or where you need acknowledgment that a signal was successfully relayed, a protocol-aware repeater may be more suitable. Also confirm that all endpoints in your system operate on 902-928 MHz; if you have devices on other frequency bands (like 2.4 GHz ISM), the EN5040-T will not assist them.
Frequently Asked Questions
Q: Does the EN5040-T require programming or pairing with my security sensors?
A: No. The EN5040-T operates as a passive signal booster—it continuously monitors the 902-928 MHz band and amplifies any signal it detects. No pairing, configuration, or programming is required. It works immediately upon power-up.
Q: Can I use the EN5040-T with wireless devices from different manufacturers?
A: Yes. Because the EN5040-T is manufacturer-agnostic and relays any 902-928 MHz signal, it is compatible with wireless sensors and endpoints from any vendor operating in that frequency band. This makes it practical for mixed-brand deployments.
Q: What is the maximum range extension the EN5040-T provides?
A: The evidence does not specify an absolute range extension in feet or meters. Effective range depends on transmit power of the endpoint, building materials, antenna placement, and RF environment. For specific range estimates in your deployment, consult the manufacturer or conduct a site survey with test devices.
Q: Can the EN5040-T be used outdoors?
A: The operating temperature range of 32°F to 140°F (0°C to 60°C) supports deployment in uncontrolled outdoor environments such as equipment closets, parking structures, and unconditioned spaces. However, the evidence does not specify an outdoor IP or IK rating. Confirm enclosure protection with the manufacturer before outdoor installation in wet or high-impact environments.
Q: Does the EN5040-T support multiple repeater daisy-chaining?
A: The evidence does not detail multi-repeater cascading or daisy-chain configuration. For deployments requiring multiple repeaters or meshing topologies, contact the manufacturer for guidance on placement and potential signal degradation.
Q: What power supply does the EN5040-T require?
A: The EN5040-T includes a transformer-equipped power supply designed for standard AC installation in commercial security deployments. Consult the datasheet or manufacturer for specific voltage and current requirements.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the Inovonics EN5040-T in campus-wide security deployments where RF coverage gaps emerge between buildings or in basement-level sensor networks. This repeater addresses a common integration challenge: extending wireless range without re-architecting the entire system or adding hardwired communication runs. The 902-928 MHz band selection aligns with numerous wireless security sensors, making compatibility straightforward and reducing vendor lock-in risk.
Technical Highlights:
- Passive Relay Operation (No Programming): The EN5040-T amplifies and relays any signal within the 902-928 MHz range without requiring pairing, configuration, or programming with specific end devices. This manufacturer-agnostic approach is a real time-saver during integration and means you can swap sensor brands without worrying about repeater compatibility.
- Transformer-Based Power Supply: Integrated transformer regulation eliminates the need for external power conditioning and aligns with 24/7 AC power infrastructure already present in commercial security facilities. This reduces installation complexity and power planning overhead compared to repeaters requiring external power supplies.
- Extended Operating Temperature Range (32°F to 140°F): The -40°C to 60°C specification supports deployment in non-climate-controlled spaces—outdoor equipment closets, parking structures, and intermediate zones where HVAC is absent. Consistent RF performance across seasonal temperature swings is critical for reliable signal extension in real-world deployments.
Deployment Considerations:
- The EN5040-T is a passive amplifier—it relays signals without error correction, acknowledgment, or dynamic routing. If your system requires intelligent mesh networking or protocol-aware signal routing, investigate active repeaters with network stack support.
- Effective range extension depends on the transmit power of your endpoints, building materials, antenna positioning, and RF environment. Conduct a site survey with test devices before finalizing repeater placement, especially in large facilities with significant structural barriers.
- Confirm that all wireless devices in your system operate on 902-928 MHz. The EN5040-T will not assist devices transmitting on other bands (e.g., 2.4 GHz ISM). Mixed-frequency deployments require separate repeaters for each band.
The EN5040-T is well-suited for integrators and facility owners who need straightforward RF range extension across existing wireless security networks without the complexity of mesh protocols or the expense of running new cable infrastructure. It's particularly effective in retrofit projects and multi-building campuses where strategic repeater placement can eliminate coverage gaps at a fraction of the cost of wired sensor migration.
