Switch Modules

Switch modules expand network switch capability by adding uplink options, fiber connectivity, and modular expansion ports. Select compatible SFP transceivers and switch modules to match your switch hardware, fiber type, and distance requirements.

Plan Your Deployment

Switch model compatibility and supported module types
Fiber type selection (single-mode vs multi-mode)
Distance requirements and transceiver range
Uplink speed requirements (1G, 10G, etc.)
Network design and redundancy planning

Network Switches Get Recommendations

Showing Results for Switch Modules

Compare

Out of stock
Vivotek

SKU: SFP-2000-MM85-X3

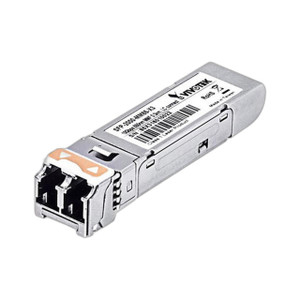

Vivotek SFP-2000-MM85-X3 10G Multimode SFP Module

10G multimode SFP+ module for short-range fiber links up to 300m
- 10 Gigabit Ethernet over 50/125μm multimode fiber with LC connector
- 850nm VCSEL laser with -1 to -9.9 dBm Rx sensitivity, 3.3V operation
- MSA-compliant, hot-swappable design; operates 0°C to 70°C
Special Order · Usually Ships in 2-3 Weeks

$144.00 $102.99 Save $41.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: SFP-2000-SM13-10

Vivotek SFP-2000-SM13-10 10G Singlemode LC SFP Module

10G singlemode SFP+ module for long-distance fiber links up to 10 km
- 10 Gbps data rate with 1310 nm DFB laser over singlemode fiber
- Reaches 10 km transmission distance on 9/125μm singlemode cable
- LC connector, MSA-compliant, operates 0°C to 70°C
Special Order · Usually Ships in 2-3 Weeks

$228.00 $161.99 Save $66.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: SFP-1000-CPTX-X1I

Vivotek SFP1000CPTX X1I Industrial Gigabit SFP Converter

Industrial SFP-to-RJ45 converter for Gigabit fiber-to-copper links
- 1000 Mbps Gigabit over 100m Cat.5e/Cat.6 with auto-negotiation
- Operates -40°C to 85°C in harsh industrial environments
- MSA-compliant SFP module with auto-MDI/MDI-X for plug-and-play setup
Special Order · Usually Ships in 2-3 Weeks

$142.00 $100.99 Save $41.01

Add to Cart
The item has been added

What to Look For When Buying

The decisions that matter most before you spec.

Match Module Type to Switch Chassis & Port Density

Switch modules must be compatible with your base switch hardware—verify slot types (SFP, QSFP, fixed vs. modular). Network collapse at the core often stems from mismatched uplink modules or insufficient expansion capacity when adding cameras to existing infrastructure.

Fiber Distance & Multimode vs. Single-Mode Selection

Single-mode fiber modules (9/125 µm) reach 10+ km; multi-mode (50/125 or 62.5/125 µm) typical to 2km. Choose based on inter-building distance and backbone topology. Wrong fiber type wastes budget and creates signal attenuation that degrades video frame rate and reliability across distributed sites.

Power Budget & PoE Scaling Across Modular Builds

Modular switches with integrated PoE modules must provide sufficient power delivery per port and across the entire stack. PoE budget planning becomes critical when clustering switches; undersized modules cause camera dropout and cascading system failures during peak recording.

Redundancy & Stacking for Mission-Critical Surveillance

Stacking modules and redundancy cards allow N+1 failover in surveillance backbones, preventing single points of failure. System failures during incidents are often caused by non-redundant core infrastructure; modular stacking protects uptime when incidents demand continuous monitoring.

Temperature & Environmental Hardening

Comnet and Transition Networks offer industrial-grade modules rated for -40°C to +70°C and conformal coating for outdoor or damp enclosures. Surveillance systems in uncontrolled environments require modules rated beyond commercial office specs to avoid thermal shutdown or corrosion.

Future Capacity Planning & Modular Growth

Select switches and modules with empty expansion slots to avoid forklift upgrades. Systems often exceed rated capacity within 2–3 years; modular architecture lets you add fiber uplinks or PoE cards without replacing the entire switch when scaling from 20 to 200+ cameras.

Technology Stack

The specs and acronyms that actually affect switch modules performance.

SFP / SFP+ / QSFP Transceivers

Small Form Factor pluggable modules that convert electrical signals to fiber optics (or vice versa). SFP handles 1 Gbps, SFP+ handles 10 Gbps, QSFP+ handles 40+ Gbps. Correct transceiver type matches your switch ports and bandwidth needs; mismatched modules won't seat or will downgrade performance.

Single-Mode vs. Multi-Mode Fiber

Single-mode (SMF, 9/125 µm core) supports 10+ km distances at lower cost per km but requires precision alignment; multi-mode (MMF, 50/125 µm) supports shorter distances (typically 300m–2km) with easier installation. Choose based on building spacing and budget; wrong choice means expensive rework or signal loss.

Port Density & Slot Type Compatibility

Modular switches have fixed slot configurations (e.g., 4-slot chassis accepts modules with specific form factors). Verify your base switch model supports the module you're ordering; plugging an SFP+ module into an SFP-only slot will not work and delays deployment.

Stacking Bandwidth & Backplane Throughput

Stacking cables and modules interconnect multiple switches into one logical unit with aggregated bandwidth. Insufficient backplane throughput (e.g., 48 Gbps backplane on switches with 48×1Gbps ports) creates bottlenecks between stacked units and limits surveillance backbone capacity.

PoE Power Budget Per Module & Chassis

PoE modules supply up to 30W per port (PoE+) or 95W per port (PoE++). Verify your module's total power delivery and the switch's power supply capacity; PoE injectors can augment undersized modules for camera-heavy deployments.

Managed vs. Unmanaged Module Features

Managed modules support VLAN tagging, spanning tree (STP), link aggregation, and SNMP monitoring; unmanaged are plug-and-play. Surveillance networks benefit from managed features to isolate camera traffic, ensure failover, and monitor uplink health during incidents.

Typical Deployment Scenarios

Multi-Building Campus with 300+ IP Cameras

Three buildings 500m apart connected via media converters and single-mode fiber modules. Core stack: 2× managed switches with stacking modules, each with 4 SFP+ uplink modules (10 Gbps each) and integrated PoE cards supplying 960W per switch. Redundancy ensures building isolation if one core switch fails. Core network design prevents collapse under concurrent recording.

K-12 School District: Classroom + Perimeter Expansion

Elementary school adds 80 cameras in phases. Start with one managed switch (12 fixed PoE ports), upgrade to modular chassis with 2 PoE modules (48 additional PoE ports) and 1 fiber uplink module to connect the high school 2km away. K-12 surveillance design recommends staged modular expansion to match budget cycles without downtime.

Warehouse + Loading Dock: Data Capture Across Three Zones

Distributed warehouse data capture system with 150 IP cameras and RFID readers across climate-controlled zones. Core: industrial-grade Transition Networks modular switch with 4 PoE modules (120 cameras + 30 IoT devices). Fiber modules uplink to routers in central monitoring room. Temperature-hardened modules resist dock condensation and freezer environments.

High-Density Edge Deployment: 200 Cameras, Single Ceiling Cabinet

Compact surveillance node: 1 managed switch with 4 SFP+ fiber modules and 2 PoE modules stacked in U-space. Axis cameras feed into local PoE modules; fiber uplinks carry traffic to central video storage and access control core. Single module failure doesn't cascade; redundant power supplies prevent module dropout during events.

Frequently Asked Questions

What is the difference between SFP and SFP+ switch modules?

SFP (Small Form Factor Pluggable) transceivers handle 1 Gbps over copper or fiber; SFP+ handles 10 Gbps. Both fit the same form factor but are not cross-compatible—an SFP module will not work at full speed in an SFP+ slot, and vice versa. Always match transceiver speed to your switch's port rating and your bandwidth demand. For surveillance backbones carrying 50+ 4K cameras, 10 Gbps SFP+ modules prevent congestion.

How do I know if a switch module is compatible with my switch?

Check your switch's model number and documentation for supported module types (SFP, QSFP, PoE vs. line-card modules). Verify slot count, port count, and power budget. Comnet and Transition Networks publish detailed compatibility matrices; contact Ask an Expert if your model is not clearly documented. Incompatible modules will not seat or will error-out during startup.

What fiber distance do I need: single-mode or multi-mode?

Single-mode fiber reaches 10+ km reliably; multi-mode is typically 300m–2km depending on grade and wavelength. Measure the distance between your switch locations (including vertical runs in stacked buildings). For distances under 500m, multi-mode is cost-effective; over 1km, single-mode becomes competitive in total cost. Wrong choice results in signal loss, dropped frames, or camera disconnects.

Can I stack switch modules from different manufacturers?

Most industrial switches support vendor-agnostic stacking via standard stacking cables and backplanes, but verify before purchase. Transition Networks and Comnet industrial modules often support cross-vendor stacking under same protocol (e.g., Ethernet stacking). Consumer-grade modules typically require matching brands. Always confirm in the switch datasheet to avoid a non-functional stack.

How much power do PoE switch modules consume and supply?

Standard PoE (15.4W per port, 30W total per port including switch overhead) and PoE+ (30W per port, 60W total) are typical ratings. A 12-port PoE module can supply ~360W; verify your power supply and UPS can handle total module load plus redundancy margin. For 100+ cameras, plan 5–10W per camera average draw; undersized modules cause brown-out and dropout. PoE budget planning guide details sizing.

What is stacking, and why do I need it for surveillance?

Stacking interconnects multiple switches via high-speed backplane cables, creating one logical switch with aggregated bandwidth and failover. If one physical switch fails, traffic reroutes through remaining units. For surveillance, stacking prevents single points of failure in the backbone; system failures during incidents are often caused by core switch collapse. Redundant stacking is critical for mission-critical deployments like access control integration and continuous recording.
