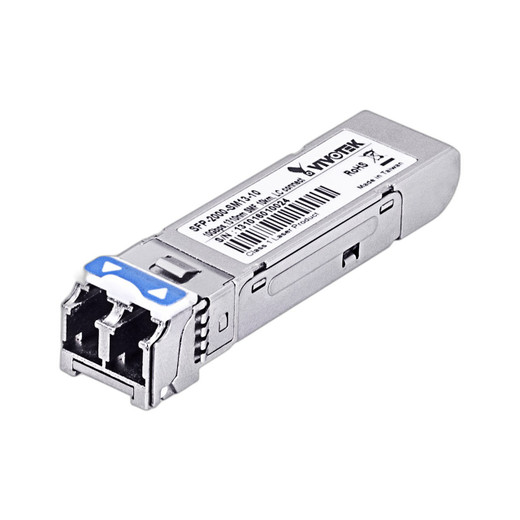

Vivotek SFP-2000-SM13-10 10G Singlemode LC SFP Module front view
Vivotek SFP-2000-SM13-10 10G Singlemode LC SFP Module front view

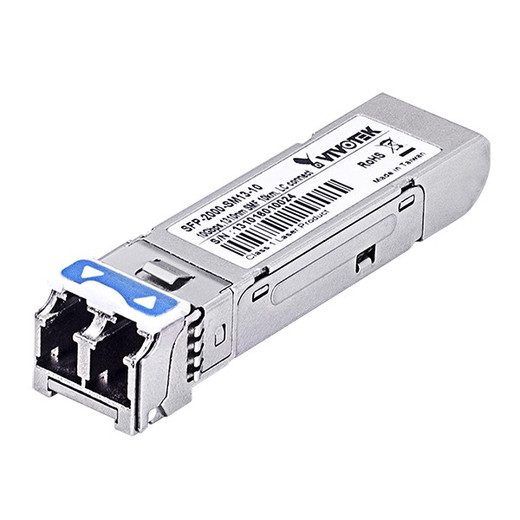

Vivotek SFP-2000-SM13-10 10G Singlemode LC SFP Module - image 2
Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: SFP-2000-SM13-10
UPC: 4712123676067
Condition: New
Availability: Special Order · Usually Ships in 2-3 Weeks
Write a Review 29% OFF
Vivotek

Vivotek SFP-2000-SM13-10 10G Singlemode LC SFP Module

10G singlemode SFP+ module for long-distance fiber links up to 10 km

$228.00 $161.99 SAVE $66
Special Order
Ships in 2-3 Weeks

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Message Call

Vivotek SFP-2000-SM13-10 10G Singlemode LC SFP Module

$228.00
$161.99
Add to Cart

Overview

SKU: SFP-2000-SM13-10
UPC: 4712123676067
Condition: New
Availability: Special Order · Usually Ships in 2-3 Weeks

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Vivotek SFP-2000-SM13-10 10G Singlemode LC SFP Module

The Vivotek SFP-2000-SM13-10 is a high-performance 10 Gigabit SFP+ transceiver module designed for long-distance network connectivity in enterprise security and surveillance deployments. Delivering 10 Gbps data rates over singlemode fiber up to 10 kilometers, this module enables reliable, high-bandwidth transmission across distributed IP camera networks, data centers, and critical infrastructure installations.

Key Features

  • 10 Gigabit per second data transmission for ultra-high-speed connectivity
  • Extended reach up to 10 kilometers via singlemode fiber (9/125μm)
  • 1310 nm wavelength with DFB laser technology for signal stability
  • LC connector for standard singlemode fiber optic connections
  • MSA-compliant design ensures interoperability with standard SFP+ ports
  • Low latency performance critical for real-time surveillance applications
  • Compact form factor: 55.9 x 14.69 x 12.39 mm

Technical Specifications

  • Data Rate: 10 Gbps
  • Transmission Range: Up to 10 km (singlemode fiber)
  • Wavelength: 1310 nm
  • Laser Type: DFB (Distributed Feedback)
  • Tx Power: -8 to 0.5 dBm
  • Rx Sensitivity: -1 to -14.4 dBm
  • Operating Temperature: 0°C to 70°C
  • Supply Voltage: 3.3V
  • Compliance: IEC 825, EN60825-1, FDA 21 CFR 1040.10/1040.11

Applications

Ideal for connecting dispersed network nodes in large-scale surveillance systems, campus networks, city-wide monitoring infrastructure, and data center environments requiring high-speed, long-distance fiber optic links.

Expert Analysis
Specifications
Model: SFP-2000-SM13-10
Data Rate Gigabit: 10G
Product Type: SFP+
Center Wave Length: 1310 nm
Laser Type: DFB
Tx: -8 ~ 0.5 dBm
Rx: -1 ~ -14.4 dBm
Voltage: 3.3V
Transmission Range: 9/125μm, up to 10km
Fiber Type (MMF/SMF: SMF
Connector: LC
Dimensions (L x W x H: 55.9 x 14.69 x 12.39 mm
Operating Temperature: 0°C ~ 70°C (32°F ~ 158°F)
Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
Humidity: 5 ~ 90% (non-condensing)
MSA Compliant: Yes
Features: IEC 825, EN60825-1, FDA 21 CFR 1040.10 and 1040.11
Housing Color: White
Poe Power: PoE+ (802.3at)
Mount Type: Wall; Ceiling; Pole; Rack
Management: Type VivoCam L2 Managed VivoCam L2 Managed VivoCam L2 Managed Web Smart L2 Plus Managed L2 Plus Managed
Dimensions: 220 (L) x 242 (W) x 44 (H) mm 442 (L) x 211 (W) x 44 (H) mm 442 (L) x 211 (W) x 44 (H) mm 220 (L) x 242 (W) x 44 (H) mm 442 (L) x 211 (W) x 44 (H) mm 442 (L) x 211 (W) x 44 (H) mm
Operating Temp: 0°C ~ 50°C (32°F ~ 122°F) 0°C ~ 50°C (32°F ~ 122°F) 0°C ~ 50°C (32°F ~ 122°F) 0°C ~ 50°C (32°F ~ 122°F) -20°C ~ 60°C (-4°F ~ 140°F) -20°C ~ 60°C (-4°F ~ 140°F)
Mounting: Type Rack-Mount Rack-Mount Rack-Mount Rack-Mount Rack-Mount Rack-Mount
Data Rate: Fast Ethernet Fast Ethernet Gigabit Ethernet Gigabit Ethernet Gigabit Ethernet
Poe: 802.3af 802.3af Passive 802.3af / 802.3at 802.3af / 802.3at Passive 802.3at
Input Voltage: Range 90~264VAC 90~264VAC 90~264VAC 90~305VAC 90~305VAC 90~305VAC
Resolution Pixels: 56 x 15
Power: PoE
