Network Switches, PoE Injectors & Surveillance Infrastructure

Plan Your Deployment

Total PoE power budget and port density requirements
Switch throughput and uplink capacity planning
Redundancy and failover design considerations
Distance limitations and fiber conversion needs
Power conditioning and voltage compatibility

Sub categories

Showing Results for Infrastructure

Compare

Out of stock
Altronix

SKU: T3MK77F16

Altronix T3MK77F16 16-Door Access Control Kit

16-door access control kit with Trove3M3 platform and dual readers
- Trove3M3 control platform with centralized management and event logging
- Dual eFlow104NB readers support Wiegand, Magstripe, and contactless formats
- Dual PD8UL power distribution with RSB2 relay supervision for 16 doors
Special Order · Ships in 2-3 weeks

$2,687.67 $2,065.99 Save $621.68

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3MK77F16D

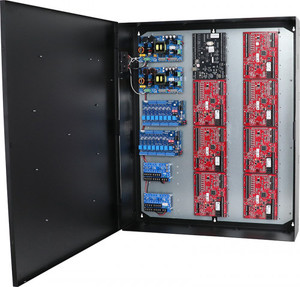

Altronix T3MK77F16D 16-Door Access Control Kit

16-door access control kit with integrated power and card readers
- Trove3M3 processor with dual eFlow104NB network reader modules
- Dual PD8ULCB power modules deliver 8-channel relay control per unit
- Wiegand and magnetic stripe reader support with RSB2 relay supervision
Special Order · Ships in 2-3 weeks

$2,687.67 $2,063.99 Save $623.68

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3MK77F16QV

Altronix T3MK77F16QV 16-Output Supervised Power Supply

16-channel 220V supervised power supply with per-output fusing
- 16 independent monitored outputs with individual circuit protection
- 220V AC input on DIN rail for cabinet-mounted security systems
- Battery backup compatible via auxiliary modules for continuous operation
Special Order · Ships in 2-3 weeks

$2,872.61 $2,229.99 Save $642.62

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3MKG7F16DQ

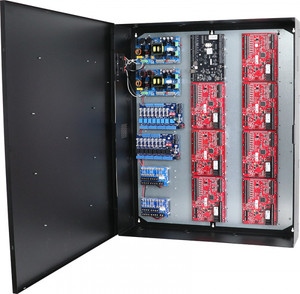

Altronix T3MKG7F16DQ Trove3M3 with TMV2 door backplane

16-channel 24VDC distribution with programmable protection and battery backup
- 10A regulated 24VDC supply with dual VR6 regulators for downstream stability
- 16 independent dual input/output circuits with programmable PTC per-channel protection
- Integrated battery leads and LINQ supervision for remote circuit management
Special Order · Ships in 2-3 weeks

$2,884.47 $2,262.99 Save $621.48

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3S277F28DSN

Altronix T3S277F28DSN 28-Door S2 Trove Kit

28-door S2 Trove kit with enterprise access control and complete installation hardware
- Manages up to 28 doors with integrated relay outputs and hardwired supervision
- Supports proximity, smart cards, and multiformat readers on 24VDC power
- Includes reader modules, wiring harnesses, and mounting hardware for rapid deployment
Special Order · Ships in 2-3 weeks

$4,207.47 $2,644.99 Save $1,562.48

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3SH775F24DPQ

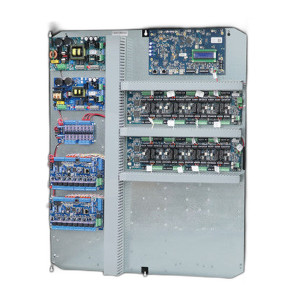

Altronix T3SH775F24DPQ 24-Door Access Control Integration Kit

24-door access control kit with integrated dual-rail power supply
- 24 fail-safe/fail-secure outputs support full door control from one unit
- Dual power rails: 24VDC @ 20A + 12VDC @ 10A from single 115V input
- Eight 12VDC auxiliary outputs with PTC protection for cameras and accessories
Special Order · Ships in 2-3 weeks

$4,290.78 $2,429.99 Save $1,860.79

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3SH777XK1D

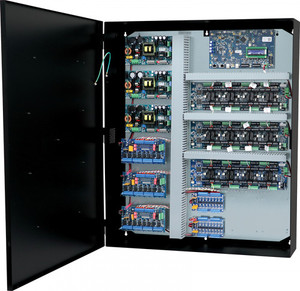

Altronix T3SH777XK1D 24VDC Supervised Power Supply

24VDC supervised power supply with integrated battery backup for security systems
- Real-time supervision with alarm reporting and LED diagnostics
- Integrated charger for lead-acid battery backup during power loss
- DIN rail and wall-mount compatible with overload/short-circuit protection
Special Order · Ships in 2-3 weeks

$5,751.17 $3,250.99 Save $2,500.18

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3SK7516

Altronix T3SK7516 16-Door Access Power Integration Kit

16-door access control power kit with centralized distribution
- Supports 16 doors in single integrated platform for multi-door systems
- Factory-configured for rapid deployment and reduced installation labor
- Centralized power distribution architecture simplifies wiring complexity
Special Order · Ships in 2-3 weeks

$2,360.77 $1,811.99 Save $548.78

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3SK7516D

Altronix T3SK7516D Trove3SH3 16-Door Access Power Kit

16-door power distribution kit for Trove3SH3 access control
- Centralized multi-door power management supporting 16-door deployments
- Trove3SH3 Software House compatible for integrated access control
- Simplified installation configuration for multi-door system expansion
Special Order · Ships in 2-3 weeks

$2,360.77 $1,825.99 Save $534.78

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3SK7516DV

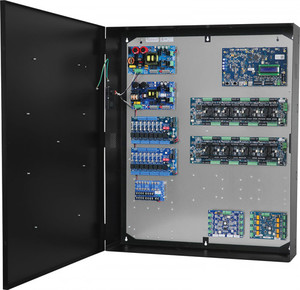

Altronix T3SK7516DV 16-Door Access Power Integration Kit

16-door access control hub with 220V centralized power distribution
- Supports 16 doors with centralized power architecture for multi-door systems
- 220V input with streamlined wiring integration reduces installation complexity
- Compatible with Altronix access control systems for coordinated lock management
Special Order · Ships in 2-3 weeks

$2,360.77 $1,817.99 Save $542.78

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3SK7516V

Altronix T3SK7516V 16-Door Access Power Integration Kit

16-door access control power hub with 220V centralized distribution
- Supports 16 doors with individual fused circuit protection per door
- Centralized 220V power architecture simplifies multi-door wiring complexity
- UL-listed design meets code compliance for commercial access installations
Special Order · Ships in 2-3 weeks

$2,360.77 $1,814.99 Save $545.78

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3SK758DV

Altronix T3SK758DV Trove3 8-Door Access Control Power Kit

Centralized 8-door power distribution for Trove3 access control systems
- 220V input with regulated DC output for card readers and locks
- Single power hub eliminates separate supplies at each door
- 8-door capacity for multi-point synchronized access control
Special Order · Ships in 2-3 weeks

$2,273.64 $1,747.99 Save $525.65

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3SK758V

Altronix T3SK758V 8-Door Access Power Integration Kit

8-door power distribution kit with 220V input and fused circuit protection
- Individual fused circuits per door for isolated protection across 8-door installations
- 220V input voltage with centralized fused power management for multi-door access control
- UL-listed design for coordinated power delivery to lock and reader interfaces
Special Order · Ships in 2-3 weeks

$2,273.64 $1,747.99 Save $525.65

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3SK75F16

Altronix T3SK75F16 16-Door Altronix/Software House Access

16-door access control kit with Software House platform and battery backup
- Trove3SH3 control platform with eFlow network modules for IP-based door management
- PD8UL power distribution unit with integrated battery backup support for all doors
- Proximity, smartcard, and biometric credential compatibility across 16 independent doors
Special Order · Ships in 2-3 weeks

$2,432.03 $1,892.99 Save $539.04

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3SK75F16D

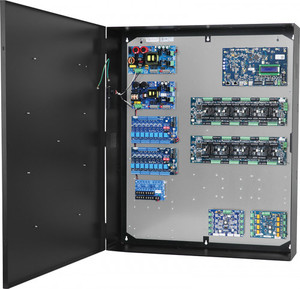

Altronix T3SK75F16D 16-Door Access Control Kit

16-door access control kit with integrated power and battery backup
- Trove3SH3 processor controls 16 independent access points with credential verification
- eFlow reader modules (4+2 inputs) connect standard card readers to each door
- PD8ULCB power distribution with RSB2 battery module backs up all 16 doors
Special Order · Ships in 2-3 weeks

$2,432.03 $1,869.99 Save $562.04

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: T3SK75F8D

Altronix T3SK75F8D 8-Door Access Control Kit

8-door access control kit with centralized power and battery backup
- Trove3SH3 platform with Software House compatibility for unified management
- PD8ULCB power distribution handles 8 outputs with centralized control
- Dual eFlow modules (104NB + 102NB) for I/O expansion and scalability
Special Order · Ships in 2-3 weeks

$2,344.92 $1,802.99 Save $541.93

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

PoE Power Budget Math

A 24-port PoE+ switch with 370W total budget can't actually run 24 outdoor cameras at peak 25W each. Simultaneous peak — not nameplate — is the limit. Always verify per-port PoE allocation and total budget against actual camera load. See PoE budget planning and why your PoE switch fails after 18 cameras.

328-Foot Ethernet Limit

Cat5e, Cat6, and Cat6A all top out at 100 meters (328ft) per TIA-568. Past that, you need a media converter to fiber, a PoE extender, or an intermediate switch. Common gotcha: in-wall patch + faceplate + drop + jumper all count against 328ft. Long runs to perimeter cameras frequently exceed the limit — plan for fiber or coax-PoE extension.

Managed vs Unmanaged Switches

Unmanaged switches work for small deployments but provide no VLAN segmentation, no QoS for video traffic, no monitoring, and no remote troubleshooting. Managed switches (Layer 2 or Layer 3) let you isolate cameras on a dedicated VLAN, prioritize video over office traffic, and diagnose link failures from a central SNMP platform. Spec managed for any deployment over 8 cameras.

UPS Sizing & Runtime

NVR + switches + cameras + access control have very different power profiles than office gear. Size UPS for actual wattage of all connected loads + 20% headroom, and calculate runtime with battery-life curves (runtime is non-linear — doubling load often cuts runtime 60%+). Surveillance UPS should provide 15-30 min to accommodate generator transfer or graceful shutdown.

Copper vs Fiber Uplinks

In-rack uplinks on 10G copper (Cat6A) work fine for short runs. Between-building and multi-floor uplinks should be fiber — single-mode for >300m, multimode for under. Fiber is also electrically isolated, which matters in lightning-prone environments. Axis, Hanwha, and Ubiquiti switches include SFP/SFP+ uplinks across most models.

Cooling & Airflow in Racks

Surveillance gear runs 24/7 — a closed rack at 90°F interior temperature will fail drives and switches faster than spec. Specify perforated doors, rack-mount fans, and leave 1U of airflow gap above/below heat-generating equipment. NVRs with internal fans need front-to-back airflow; network switches vary by vendor. Check thermal spec before sealing a wall-mount enclosure.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

802.3af / at / bt PoE Standards

802.3af = 15.4W/port (entry cameras), 802.3at PoE+ = 25.5W/port (most outdoor cameras), 802.3bt PoE++ Type 3 = 60W, Type 4 = 90W (PTZ, heated, multi-sensor). Specify switch support for the highest standard your cameras need — future-proofing with PoE++ switches costs marginally more.

TIA-568 Cabling Standards

Cat5e rated to 1 Gbps at 100m. Cat6 rated to 10 Gbps at 55m, 1 Gbps at 100m. Cat6A rated to 10 Gbps at 100m with proper grounding. Use Cat6A for new surveillance cabling runs — marginal cost premium over Cat6, meaningful margin for long runs + high PoE.

SFP / SFP+ / QSFP+ Modules

Small Form-factor Pluggable optics for fiber uplinks. SFP = 1 Gbps, SFP+ = 10 Gbps, QSFP+ = 40 Gbps. Match module to switch vendor compatibility (some vendors lock to their own brand of optics). Multimode fiber with OM3/OM4 for ≤300m, single-mode for longer or future-proof runs.

VLAN Segmentation

Dedicated VLAN for surveillance isolates camera traffic from office network — improves security (camera-to-camera lateral movement blocked), performance (no contention with office traffic), and troubleshooting. Configure access-control and intercom VLANs separately. Managed switches required; unmanaged switches cannot segment.

Long-Reach PoE Extension

Ethernet-over-Coax (EoC) extends Ethernet + PoE to 1,500+ feet over existing RG59 coax — ideal for analog-to-IP retrofits. Ethernet-over-UTP extenders push runs to 4,000ft over CAT cable. NVT Phybridge CHARIoT, Altronix eBridge, and Veracity Highwire are the common product families. Rate-limited to 100 Mbps typically.

UPS Topology: Line-Interactive vs Double-Conversion

Line-interactive UPS switch to battery on power failure — sufficient for office gear. Double-conversion (online) UPS convert AC→DC→AC continuously, providing perfectly conditioned power — required for sensitive SCADA/security gear in dirty-power environments. Specify double-conversion for NVRs at critical sites.

Typical Deployment Scenarios

8-Camera Single-Site Retrofit

Existing network + 8 outdoor IP cameras. Add a 16-port managed PoE+ switch (Ubiquiti UniFi, Axis T85) on a dedicated VLAN. 1U rack UPS for the NVR + switch. 120-160 watts total PoE budget comfortably runs 8 outdoor cameras with heater + IR.

48-Camera Campus Upgrade

Four buildings, 48 cameras total, existing fiber backbone. Per-building 24-port PoE++ switch with SFP+ fiber uplink to core. Dedicated surveillance VLAN, QoS for video traffic, SNMP monitoring. 2-post relay rack in each IDF closet with dedicated surveillance UPS.

Perimeter Fence Line (1,200ft)

6 bullet cameras + 2 PTZs along perimeter fence, main NVR in building. Fiber media converter + outdoor-rated fiber to a PoE++ switch in a weatherproof enclosure at the fence line. Alternative: NVT Phybridge CHARIoT over existing coax for retrofit applications.

Multi-Floor Office Tower

Stacked IDFs on every floor, cameras + access control + intercom on dedicated VLANs. Cisco Catalyst or Ubiquiti UniFi Pro managed switches per floor with 10G fiber uplink to building core. Per-IDF 3U UPS. Integration with VMS and access control head-end at main BDF.

Frequently Asked Questions

How do I calculate PoE budget for a camera deployment?

Sum the peak wattage of every camera (not nameplate — check spec sheet for "PoE class" or "max consumption"). Add 15-20% headroom for inrush during cold-start. The result is your required simultaneous-peak PoE budget. A 24-port PoE+ switch advertised at 370W can only run about 18 outdoor cameras with heaters + IR — see PoE budget planning.

What's the maximum Ethernet cable run for an IP camera?

100 meters (328 feet) per TIA-568 — total distance from switch port to camera port. That includes in-rack patch cords, in-wall cabling, faceplate jack, and camera jumper. For longer runs, use fiber with a media converter or a long-reach PoE extender. Going past 328ft on copper causes intermittent packet loss that looks like camera problems.

Do I need managed or unmanaged PoE switches?

For more than 8 cameras or any mixed-use network (cameras sharing infrastructure with office traffic), specify managed. VLAN segmentation isolates camera traffic for security and performance; QoS ensures video gets bandwidth priority; SNMP monitoring surfaces failures before users call. Unmanaged switches are acceptable only for small standalone deployments.

What UPS runtime should I plan for an NVR + switch?

15-30 minutes of runtime at actual load is typical — enough to ride through brief outages or allow graceful shutdown before battery exhaustion. For sites with generator transfer, 5-10 minutes is sufficient. Size UPS wattage for actual connected load + 20%, and use the vendor's runtime-at-load curve (runtime is non-linear). Double-conversion UPS for sensitive or dirty-power sites.

How far can I extend PoE past 328 feet?

Ethernet-over-Coax extenders (NVT Phybridge CHARIoT, Altronix eBridge) push Ethernet + PoE to 1,500+ feet over existing RG59/RG6 coax — ideal for analog-to-IP retrofits. UTP-based extenders reach 2,000-4,000 feet on Cat cable at reduced bandwidth (typically 100 Mbps). For new runs over 328ft, fiber + PoE switch at the camera end is usually cleaner architecture.

Should I put cameras on a separate VLAN?

Yes — always. A dedicated camera VLAN isolates camera traffic from office network for security (blocks camera-to-camera lateral movement if one is compromised), performance (cameras don't contend with office bandwidth), and troubleshooting (camera traffic is cleanly separated for packet capture). Requires managed switches; takes 10 minutes to configure on Ubiquiti UniFi, Cisco Catalyst, or any enterprise switch.

Infrastructure

Plan Your Deployment

Sub categories

Showing Results for Infrastructure

Altronix T3MK77F16 16-Door Access Control Kit

Altronix T3MK77F16D 16-Door Access Control Kit

Altronix T3MK77F16QV 16-Output Supervised Power Supply

Altronix T3MKG7F16DQ Trove3M3 with TMV2 door backplane

Altronix T3S277F28DSN 28-Door S2 Trove Kit

Altronix T3SH775F24DPQ 24-Door Access Control Integration Kit

Altronix T3SH777XK1D 24VDC Supervised Power Supply

Altronix T3SK7516 16-Door Access Power Integration Kit

Altronix T3SK7516D Trove3SH3 16-Door Access Power Kit

Altronix T3SK7516DV 16-Door Access Power Integration Kit

Altronix T3SK7516V 16-Door Access Power Integration Kit

Altronix T3SK758DV Trove3 8-Door Access Control Power Kit

Altronix T3SK758V 8-Door Access Power Integration Kit

Altronix T3SK75F16 16-Door Altronix/Software House Access

Altronix T3SK75F16D 16-Door Access Control Kit

Altronix T3SK75F8D 8-Door Access Control Kit

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
