Network Switches, PoE Injectors & Surveillance Infrastructure

Plan Your Deployment

Total PoE power budget and port density requirements
Switch throughput and uplink capacity planning
Redundancy and failover design considerations
Distance limitations and fiber conversion needs
Power conditioning and voltage compatibility

Sub categories

Showing Results for Infrastructure

Compare

Add to Cart The item has been added
Vivotek

SKU: AW-GET-083A-120

Vivotek AW-GET-083A-120 Outdoor 4-Port PoE+ GbE Switch

Outdoor 4-port PoE+ switch with 120W budget for remote surveillance
- Four 30W PoE+ ports run high-power cameras simultaneously without throttling
- IP67/IK10 rated and -40°C to +65°C rated for extreme outdoor deployments
- Two SFP slots and two standard GbE ports for flexible network topology
In stock · Ships same business day

$1,048.00 $749.99 Save $298.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AW-GEV-108A-130

Vivotek AW-GEV-108A-130 8-Port Gigabit PoE Switch

8-port PoE switch with 130W budget and dual SFP uplinks for surveillance
- 6× 30W + 2× 90W ports handle standard cameras and high-power PTZ devices
- 20 Gbps switching bandwidth with web management and auto-discovery of 256 devices
- Extended PoE reach to 250m; VLAN, STP, and topology visualization included
Special Order · Ships in 2-3 weeks

$650.00 $464.99 Save $185.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AW-GEV-288A-370

Vivotek AW-GEV-288A-370 24-Port Gigabit PoE Managed Switch

24-port Gigabit PoE switch with 370W budget for surveillance networks
- Mixed PoE outputs: ports 1-20 at 30W, ports 21-24 at 90W for PTZ and thermal
- 4 VIVOCAM combo ports + auto-discovery of up to 256 Vivotek devices
- VLAN, QoS, link aggregation, and spanning tree protocols for traffic control
Special Order · Ships in 2-3 weeks

$1,120.00 $801.99 Save $318.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AW-GTS-287A

Vivotek AW-GTS-287A Managed Ethernet Switch

32 gigabit ports + 4x 10G uplinks for large-scale security deployments
- 24 SFP fiber ports + 4 combo RJ45/SFP ports reduce EMI across distributed sites
- L2 Plus management with VLAN, QoS, and port mirroring for traffic control
- 4x 10G SFP+ uplinks handle core aggregation and multi-building switch clustering
Special Order · Ships in 2-3 weeks

$1,725.00 $1,646.99 Save $78.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AW-IHH-0110

Vivotek AW-IHH-0110 Industrial Gigabit 95W PoE Midspan

Industrial PoE midspan injector, 95W single-port Gigabit output
- 95W @ 54VDC per port powers high-draw devices like PTZ cameras
- Gigabit Ethernet (10/100/1000Mbps) with 12KV surge protection per port
- Operates -40°C to 75°C; compact DIN-rail mount for harsh environments
Special Order · Ships in 2-3 weeks

$354.00 $253.99 Save $100.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AW-IHS-0200

Vivotek AW-IHS-0200 Industrial 10/100M to 100M SC Media Converter -40°C to 75°C

Industrial media converter, 10/100M copper to 100M fiber, -40°C to 75°C
- Converts RJ45 Ethernet to SC multi-mode fiber with 2 km range
- Operates -40°C to 75°C in harsh industrial environments
- IP40 aluminum housing, DIN-rail/wall mount, 2W power consumption
Special Order · Ships in 2-3 weeks

$185.00 $132.99 Save $52.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AW-IHS-0201

Vivotek AW-IHS-0201 Industrial Media Converter

Industrial media converter extending Ethernet to 30 km fiber links
- Single-mode SC fiber reaches 30 km at 1310nm for long-distance runs
- 10/100Base-TX auto-negotiation with MDI/MDI-X detection and flow control
- Operates -40°C to 75°C in IP40 aluminum housing, DIN-rail or wall mount
Special Order · Ships in 2-3 weeks

$244.00 $174.99 Save $69.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AW-IHS-0202

Vivotek AW-IHS-0202 Industrial Media Converter

Copper-to-fiber media converter, 20 km reach, -40°C to 75°C industrial
- Dual RJ45 + SFP fiber port converts 10/100Base-TX to single/multi-mode fiber
- Extends network 20 km over fiber while handling extreme temps -40°C to 75°C
- IP40 aluminum housing, DIN-rail mount, 2W power for remote surveillance sites
Special Order · Ships in 2-3 weeks

$150.00 $106.99 Save $43.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AW-IHT-0100

Vivotek AW-IHT-0100 Industrial 30W PoE Midspan

Industrial 30W PoE midspan for -40°C to 75°C harsh environments
- 30W @ 56VDC per port with Gigabit Ethernet (1000BASE-T) support
- Rugged metal housing, IP30 rated, with over-current & short protection
- Dual redundant 48V-56VDC inputs with DIN-rail and wall-mount options
Special Order · Ships in 2-3 weeks

$167.00 $119.99 Save $47.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AW-IHT-0502

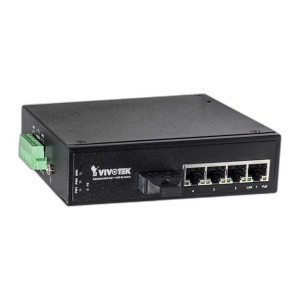

Vivotek AW-IHT-0502 Industrial 4-Port PoE+ Media Converter

4-port PoE+ to fiber media converter, 30 km reach, -40°C to 75°C
- Four 10/100Mbps PoE+ ports deliver 30W each (120W total) for cameras
- SC single-mode fiber extends network 30 km at 1310nm wavelength
- Dual redundant 48-56VDC inputs with failover for continuous operation
Special Order · Ships in 2-3 weeks

$354.00 $253.99 Save $100.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AW-IHT-1000

Vivotek AW-IHT-1000 Industrial 8-Port PoE+ Switch

Industrial 8-port PoE+ switch with 240W total power and fiber uplinks
- 8x gigabit PoE+ ports at 30W each for PTZ cameras, thermal sensors, WAPs
- 2x SFP fiber slots for long-distance backbone links and extended reach
- Operates -40°C to 75°C with 12kV surge protection and redundant power inputs
Special Order · Ships in 2-3 weeks

$383.00 $274.99 Save $108.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AW-IHT-1271

Vivotek AW-IHT-1271 8-Port Gigabit PoE Industrial Switch

8-port Gigabit PoE industrial switch with 240W budget and fiber expansion
- 8x Gigabit PoE ports at 30W each plus 4x SFP fiber slots for network growth
- 24 Gbps switching capacity with L2+ management, VLAN, QoS, and spanning tree
- Dual 48-57VDC power inputs rated -40°C to 75°C with 6KV surge protection
Special Order · Ships in 2-3 weeks

$1,344.00 $961.99 Save $382.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AW-IHU-0200

Vivotek AW-IHU-0200 Industrial 60W UPoE Gigabit Switch

Industrial 60W UPoE switch with dual Gigabit ports for harsh environments
- 60W UPoE output at 56VDC powers high-consumption PTZ cameras and devices
- Dual Gigabit connectivity via RJ45 and SFP slot for wired or fiber links
- Operates -40°C to 75°C with DIN-rail/wall mounting for extreme conditions
Special Order · Ships in 2-3 weeks

$305.00 $217.99 Save $87.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: DRL-48V120W1EN

Vivotek DRL-48V120W1EN 48VDC 120W Power Supply

48VDC 120W DIN-rail supply for surveillance & access control systems
- 48VDC at 120W with ±0.5% regulation supports multiple cameras and networked devices
- Wide 90-264VAC input and -30°C to +70°C operating range for global installations
- Overvoltage, overcurrent, and short-circuit protection with 3.0 kVac input isolation
Special Order · Ships in 2-3 weeks

$106.00 $75.99 Save $30.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: DRL-48V240W1EN

Vivotek DRL-48V240W1EN 48VDC 240W Power Supply

48VDC 240W DIN-rail supply for multi-camera IP surveillance systems
- 240W output at 48VDC/5.0A supports multiple IP cameras and networked devices
- Wide input 90-264VAC with 90.5% efficiency and >0.95 power factor
- Operates -30°C to +70°C with overvoltage, overcurrent, and short-circuit protection
Special Order · Ships in 2-3 weeks

$200.00 $143.99 Save $56.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: MDR-10-12

Vivotek MDR-10-12 12VDC 10W Power Supply

12VDC 10W industrial supply for IP surveillance, -20 to +70°C
- Wide input range 85–264 VAC / 120–370 VDC eliminates regional converters
- Auto-recovery hiccup protection against overload and overvoltage faults
- Compact 22.5 × 90 × 100 mm footprint, UL508 & TÜV EN60950-1 certified
Special Order · Ships in 2-3 weeks

$48.00 $33.99 Save $14.01

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

PoE Power Budget Math

A 24-port PoE+ switch with 370W total budget can't actually run 24 outdoor cameras at peak 25W each. Simultaneous peak — not nameplate — is the limit. Always verify per-port PoE allocation and total budget against actual camera load. See PoE budget planning and why your PoE switch fails after 18 cameras.

328-Foot Ethernet Limit

Cat5e, Cat6, and Cat6A all top out at 100 meters (328ft) per TIA-568. Past that, you need a media converter to fiber, a PoE extender, or an intermediate switch. Common gotcha: in-wall patch + faceplate + drop + jumper all count against 328ft. Long runs to perimeter cameras frequently exceed the limit — plan for fiber or coax-PoE extension.

Managed vs Unmanaged Switches

Unmanaged switches work for small deployments but provide no VLAN segmentation, no QoS for video traffic, no monitoring, and no remote troubleshooting. Managed switches (Layer 2 or Layer 3) let you isolate cameras on a dedicated VLAN, prioritize video over office traffic, and diagnose link failures from a central SNMP platform. Spec managed for any deployment over 8 cameras.

UPS Sizing & Runtime

NVR + switches + cameras + access control have very different power profiles than office gear. Size UPS for actual wattage of all connected loads + 20% headroom, and calculate runtime with battery-life curves (runtime is non-linear — doubling load often cuts runtime 60%+). Surveillance UPS should provide 15-30 min to accommodate generator transfer or graceful shutdown.

Copper vs Fiber Uplinks

In-rack uplinks on 10G copper (Cat6A) work fine for short runs. Between-building and multi-floor uplinks should be fiber — single-mode for >300m, multimode for under. Fiber is also electrically isolated, which matters in lightning-prone environments. Axis, Hanwha, and Ubiquiti switches include SFP/SFP+ uplinks across most models.

Cooling & Airflow in Racks

Surveillance gear runs 24/7 — a closed rack at 90°F interior temperature will fail drives and switches faster than spec. Specify perforated doors, rack-mount fans, and leave 1U of airflow gap above/below heat-generating equipment. NVRs with internal fans need front-to-back airflow; network switches vary by vendor. Check thermal spec before sealing a wall-mount enclosure.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

802.3af / at / bt PoE Standards

802.3af = 15.4W/port (entry cameras), 802.3at PoE+ = 25.5W/port (most outdoor cameras), 802.3bt PoE++ Type 3 = 60W, Type 4 = 90W (PTZ, heated, multi-sensor). Specify switch support for the highest standard your cameras need — future-proofing with PoE++ switches costs marginally more.

TIA-568 Cabling Standards

Cat5e rated to 1 Gbps at 100m. Cat6 rated to 10 Gbps at 55m, 1 Gbps at 100m. Cat6A rated to 10 Gbps at 100m with proper grounding. Use Cat6A for new surveillance cabling runs — marginal cost premium over Cat6, meaningful margin for long runs + high PoE.

SFP / SFP+ / QSFP+ Modules

Small Form-factor Pluggable optics for fiber uplinks. SFP = 1 Gbps, SFP+ = 10 Gbps, QSFP+ = 40 Gbps. Match module to switch vendor compatibility (some vendors lock to their own brand of optics). Multimode fiber with OM3/OM4 for ≤300m, single-mode for longer or future-proof runs.

VLAN Segmentation

Dedicated VLAN for surveillance isolates camera traffic from office network — improves security (camera-to-camera lateral movement blocked), performance (no contention with office traffic), and troubleshooting. Configure access-control and intercom VLANs separately. Managed switches required; unmanaged switches cannot segment.

Long-Reach PoE Extension

Ethernet-over-Coax (EoC) extends Ethernet + PoE to 1,500+ feet over existing RG59 coax — ideal for analog-to-IP retrofits. Ethernet-over-UTP extenders push runs to 4,000ft over CAT cable. NVT Phybridge CHARIoT, Altronix eBridge, and Veracity Highwire are the common product families. Rate-limited to 100 Mbps typically.

UPS Topology: Line-Interactive vs Double-Conversion

Line-interactive UPS switch to battery on power failure — sufficient for office gear. Double-conversion (online) UPS convert AC→DC→AC continuously, providing perfectly conditioned power — required for sensitive SCADA/security gear in dirty-power environments. Specify double-conversion for NVRs at critical sites.

Typical Deployment Scenarios

8-Camera Single-Site Retrofit

Existing network + 8 outdoor IP cameras. Add a 16-port managed PoE+ switch (Ubiquiti UniFi, Axis T85) on a dedicated VLAN. 1U rack UPS for the NVR + switch. 120-160 watts total PoE budget comfortably runs 8 outdoor cameras with heater + IR.

48-Camera Campus Upgrade

Four buildings, 48 cameras total, existing fiber backbone. Per-building 24-port PoE++ switch with SFP+ fiber uplink to core. Dedicated surveillance VLAN, QoS for video traffic, SNMP monitoring. 2-post relay rack in each IDF closet with dedicated surveillance UPS.

Perimeter Fence Line (1,200ft)

6 bullet cameras + 2 PTZs along perimeter fence, main NVR in building. Fiber media converter + outdoor-rated fiber to a PoE++ switch in a weatherproof enclosure at the fence line. Alternative: NVT Phybridge CHARIoT over existing coax for retrofit applications.

Multi-Floor Office Tower

Stacked IDFs on every floor, cameras + access control + intercom on dedicated VLANs. Cisco Catalyst or Ubiquiti UniFi Pro managed switches per floor with 10G fiber uplink to building core. Per-IDF 3U UPS. Integration with VMS and access control head-end at main BDF.

Frequently Asked Questions

How do I calculate PoE budget for a camera deployment?

Sum the peak wattage of every camera (not nameplate — check spec sheet for "PoE class" or "max consumption"). Add 15-20% headroom for inrush during cold-start. The result is your required simultaneous-peak PoE budget. A 24-port PoE+ switch advertised at 370W can only run about 18 outdoor cameras with heaters + IR — see PoE budget planning.

What's the maximum Ethernet cable run for an IP camera?

100 meters (328 feet) per TIA-568 — total distance from switch port to camera port. That includes in-rack patch cords, in-wall cabling, faceplate jack, and camera jumper. For longer runs, use fiber with a media converter or a long-reach PoE extender. Going past 328ft on copper causes intermittent packet loss that looks like camera problems.

Do I need managed or unmanaged PoE switches?

For more than 8 cameras or any mixed-use network (cameras sharing infrastructure with office traffic), specify managed. VLAN segmentation isolates camera traffic for security and performance; QoS ensures video gets bandwidth priority; SNMP monitoring surfaces failures before users call. Unmanaged switches are acceptable only for small standalone deployments.

What UPS runtime should I plan for an NVR + switch?

15-30 minutes of runtime at actual load is typical — enough to ride through brief outages or allow graceful shutdown before battery exhaustion. For sites with generator transfer, 5-10 minutes is sufficient. Size UPS wattage for actual connected load + 20%, and use the vendor's runtime-at-load curve (runtime is non-linear). Double-conversion UPS for sensitive or dirty-power sites.

How far can I extend PoE past 328 feet?

Ethernet-over-Coax extenders (NVT Phybridge CHARIoT, Altronix eBridge) push Ethernet + PoE to 1,500+ feet over existing RG59/RG6 coax — ideal for analog-to-IP retrofits. UTP-based extenders reach 2,000-4,000 feet on Cat cable at reduced bandwidth (typically 100 Mbps). For new runs over 328ft, fiber + PoE switch at the camera end is usually cleaner architecture.

Should I put cameras on a separate VLAN?

Yes — always. A dedicated camera VLAN isolates camera traffic from office network for security (blocks camera-to-camera lateral movement if one is compromised), performance (cameras don't contend with office bandwidth), and troubleshooting (camera traffic is cleanly separated for packet capture). Requires managed switches; takes 10 minutes to configure on Ubiquiti UniFi, Cisco Catalyst, or any enterprise switch.

Infrastructure

Plan Your Deployment

Sub categories

Showing Results for Infrastructure

Vivotek AW-GET-083A-120 Outdoor 4-Port PoE+ GbE Switch

Vivotek AW-GEV-108A-130 8-Port Gigabit PoE Switch

Vivotek AW-GEV-288A-370 24-Port Gigabit PoE Managed Switch

Vivotek AW-GTS-287A Managed Ethernet Switch

Vivotek AW-IHH-0110 Industrial Gigabit 95W PoE Midspan

Vivotek AW-IHS-0200 Industrial 10/100M to 100M SC Media Converter -40°C to 75°C

Vivotek AW-IHS-0201 Industrial Media Converter

Vivotek AW-IHS-0202 Industrial Media Converter

Vivotek AW-IHT-0100 Industrial 30W PoE Midspan

Vivotek AW-IHT-0502 Industrial 4-Port PoE+ Media Converter

Vivotek AW-IHT-1000 Industrial 8-Port PoE+ Switch

Vivotek AW-IHT-1271 8-Port Gigabit PoE Industrial Switch

Vivotek AW-IHU-0200 Industrial 60W UPoE Gigabit Switch

Vivotek DRL-48V120W1EN 48VDC 120W Power Supply

Vivotek DRL-48V240W1EN 48VDC 240W Power Supply

Vivotek MDR-10-12 12VDC 10W Power Supply

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
