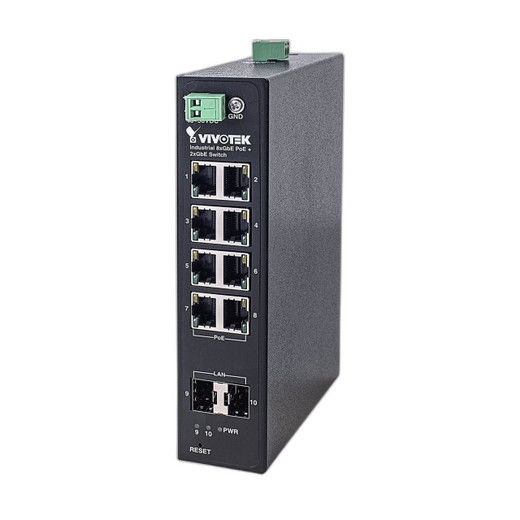

Vivotek AW-IHT-1000 Industrial 8-Port PoE+ Switch

Vivotek AW-IHT-1000 Industrial 8-Port 30W PoE+ 2x SFP Switch

The Vivotek AW-IHT-1000 is a purpose-built industrial network switch engineered for demanding surveillance, security, and critical infrastructure deployments. With eight gigabit PoE+ ports delivering 30W per port and two SFP fiber slots, this switch combines high-density power delivery with flexible connectivity options for large-scale IP camera networks and edge computing environments. Its industrial-grade construction ensures reliable operation across extreme temperature ranges and harsh conditions where standard switches would fail.

Key Features

• 8x Gigabit PoE+ Ports: Each port supplies up to 30W (IEEE 802.3at/af), supporting high-power devices like PTZ cameras, thermal sensors, and wireless access points with a combined 240W total power budget
• 2x SFP Fiber Slots: 1000-BASE-X connectivity for long-distance, noise-immune backbone links and extended network reach
• 20 Gbps Switching Bandwidth: High-capacity fabric handles simultaneous video streaming and data traffic without bottlenecks
• Redundant Power Inputs: Dual 48-56VDC inputs with automatic failover ensure continuous operation during power supply failures
• Industrial Durability: Operates -40°C to 75°C with 12kV surge protection per port; certified for vibration, shock, and freefall per IEC standards
• Auto-MDI/MDI-X & Auto-Negotiation: Simplifies cabling—no need for crossover cables or manual speed configuration
• Jumbo Frame Support: 9,216-byte frames optimize throughput for high-bandwidth applications

Technical Specifications

• Switching Fabric: 20 Gbps with 14.88 Mbps forwarding capacity
• MAC Address Table: 4K entries for stable large deployments
• Buffer Memory: 128 KB with store-and-forward transmission method
• Standards Compliance: IEEE 802.3/3u/3ab/3x/3af/3at; FCC Class A, CE, LVD, VCCI
• Dimensions: 172 x 132 x 39 mm (compact DIN-rail ready form factor)
• Weight: 0.8 kg
• EMI/EMS: Full industrial-grade protection against surges, ESD, RF interference, and electrical fast transients

Ideal Applications

• IP video surveillance networks in manufacturing plants, ports, and transportation hubs
• Outdoor and remote site deployments requiring temperature extremes and power redundancy
• Critical infrastructure monitoring with fiber uplinks to central NOCs
• Edge computing and IoT sensor networks requiring PoE power consolidation

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The AW-IHT-1000 stands out for its combination of high per-port power (30W) and redundant power architecture—essential when deploying thermal or PTZ cameras in remote, unattended locations. The dual power inputs with 48-56VDC rating allow integration with industrial UPS and solar-powered systems, eliminating single points of failure. The 20 Gbps switching bandwidth relative to 8 ports ensures no oversubscription, critical for real-time video.

SFP fiber slots add future-proof scalability; fiber links bypass electrical noise in electrically harsh environments (factories, rail yards). The -40°C operating floor is uncommon at this price tier and essential for outdoor and rooftop deployments. Surge protection and IEC mechanical compliance certifications confirm this is purpose-designed for non-office environments.

For organizations standardizing on Vivotek cameras and needing a compact, rugged backbone switch with local PoE aggregation, this unit delivers enterprise reliability without enterprise overhead.
