Vivotek
SKU: AW-GEV-104B-130
Vivotek AW-GEV-104B-130 8-Port PoE+ Smart Switch
$550.00
$349.99
Save $200.01
Product images are provided for reference and may not represent the exact model, configuration, or included
components.
Overview
SKU:
AW-GEV-108A-130
Condition:
New
Availability:
Special Order · Usually Ships in 2-3 Weeks
Warranty
2 Year Warranty
Vivotek AW-GEV-108A-130 8-Port Gigabit PoE Switch
8-port PoE switch with 130W budget and dual SFP uplinks for surveillance
Vivotek AW-GEV-108A-130 8-Port Gigabit PoE Switch
$650.00
$461.99
Build Your Complete System
Manufacturer-verified compatible cameras, recorders, mounts, accessories, and licenses for this product. Adjust quantities and add the entire bundle to your cart in one click.
Item
Qty
Status
Price
Mounts & Accessories recommended
Recorders, NVRs & Storage recommended
Licenses & Software where applicable
Services & Training optional
Bundle Summary
Bundle Subtotal:
$0.00
Mounts & Accessories:
$0.00
Recorders & NVRs:
$0.00
Licenses:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
AW-GEV-108A-130
Condition:
New
Availability:
Special Order · Usually Ships in 2-3 Weeks
Warranty
2 Year Warranty
No Bots, Just Experts
Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.
Send Laura a Message
Senior Specialist · Typically replies within 1 business day
Description

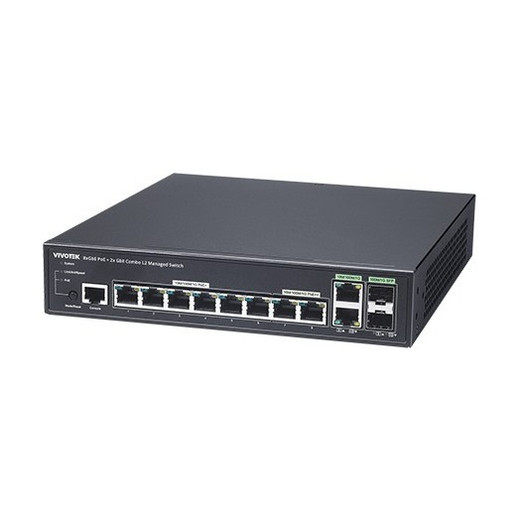

Vivotek AW-GEV-108A-130 8-Port Gigabit PoE+ Switch with SFP Uplinks
The Vivotek AW-GEV-108A-130 is a professional-grade Layer 2 managed network switch purpose-built for IP surveillance and security deployments. This compact yet powerful switch combines eight Gigabit PoE ports with dual SFP fiber connectivity, delivering a total power budget of 130W across differentiated port configurations. The flexible port design—featuring 90W high-power delivery on ports 7-8 and 30W on ports 1-6—accommodates both standard IP cameras and power-hungry PTZ devices and access points, making it an ideal backbone for mid-to-large surveillance networks.
Key Features
- 8 Gigabit Ethernet PoE ports with differentiated power outputs (6× 30W, 2× 90W)
- 2 Gigabit Combo SFP ports for high-speed fiber uplinks
- 130W total PoE power budget with Non-Stop PoE technology
- 20 Gbps switching bandwidth and 14.88 Mpps forwarding capacity
- IEEE 802.3af/at/bt PoE standard compliance
- Extended PoE mode supporting distances up to 250m at 10 Mbps
- PoE scheduling and per-port power control
Network Management & Switching
Built-in web-based smart management delivers comprehensive surveillance-focused features including support for up to 256 Vivotek devices with automatic discovery, device grouping via VLAN, and topology/floor/Google Map visualization. The switch supports extensive VLAN configurations (4,096 VLAN IDs) including port-based, 802.1Q tag-based, MAC-based, IP subnet-based, and voice VLAN modes. Advanced bridging protocols include STP, RSTP, and MSTP for network redundancy, while static and dynamic link aggregation (LACP) enable port bonding. Full IPv4/IPv6 dual-stack support ensures compatibility with modern network architectures.
Quality of Service & Traffic Control
Eight hardware priority queues with port-based, 802.1p, and DSCP/CoS prioritization ensure smooth video streaming and device management traffic. IGMP snooping v1/v2 and MLD v1/v2 snooping optimize multicast performance. Storm control, port security, IP source guard, and DHCP snooping provide Layer 2 protection, while RADIUS/TACACS+ authentication and SSL encryption secure administrative access. Loop detection and cable diagnostics simplify network troubleshooting.
Vivotek Ecosystem Integration
The switch deeply integrates with Vivotek cameras and video servers, offering surveillance device management lists, configuration file export/import, remote reboot/restore functions, and on/off-line status monitoring. PoE alive checking confirms device connectivity, while PoE reboot capability resolves connection issues remotely.
Technical Specifications
- Switching bandwidth: 20 Gbps
- Forwarding capacity: 14.88 Mpps
- MAC address table: 8K entries
- Jumbo frames: 9,216 bytes
- Operating temperature: −10°C to 50°C
- Dimensions: 220 (W) × 44 (H) × 242 (D) mm
- Weight: 1.95 kg
- Input: 100−240V AC, 50−60 Hz
- Certifications: UL, CE, UKCA, FCC, VCCI, LVD, ICES
Applications
Ideal for IP surveillance networks of 10−250+ devices, access control systems, building automation, and integrated security deployments requiring managed switching with built-in Vivotek device administration and high-availability PoE delivery.
Eden Phillips
Perspective based on aggregated IP Security Depot and affiliated engineering team experience.
The AW-GEV-108A-130 addresses a critical market gap: surveillance-grade switching with Vivotek-native management. The differentiated PoE architecture—90W on ports 7-8 and 30W on 1-6—reflects real-world deployment: high-power PTZ cameras and APs on dedicated ports, standard IP cameras on lower-power lines. This avoids over-provisioning and simplifies power budgeting on medium-sized installations.
The 20 Gbps non-blocking fabric with 14.88 Mpps throughput handles 8× 1080p30 streams comfortably, and the dual SFP combo ports enable fiber uplinks without dedicated transceivers. Surveillance-specific features—device auto-discovery, floor/topology mapping, configuration backup—reduce commissioning time versus generic Layer 2 switches. Extended PoE to 250m appeals to large campus installations.
The 24-month warranty and compact 1U form factor support both data closet and distributed deployment models. Recommended for integrators building mid-tier surveillance networks prioritizing Vivotek ecosystem lock-in and simplified device management over generic SNMP-only switching.
Specifications
Model:
AW-GEV-108A-130
Product Description:
2xGbE PoE+ 90W, 6xGbE PoE 30W, 2xGbE Combo
Gigabit RJ45 Port:
8
Gigabit Combo Port:
2
Total Ports:
10
Console Port:
1
Switching Bandwidth:
20 Gbps
Forwarding Capacity:
14.88 Mpps
MAC Address:
8 K
Jumbo Frames:
9216 Bytes
Auto Search VIVOTEK Device:
up to 256 pcs
PoE Reboot:
V
Surveillance Device Management List:
V
DHCP Server Function:
V
VIVOTEK Device Account/Password Setting:
V
VIVOTEK Device Grouping Setting for VLAN:
V
VIVOTEK Device Name Edit:
V
VIVOTEK Camera/Video Server Reboot/Restore Default:
V
VIVOTEK Device Re-direct Link:
V
VIVOTEK Device On/Off Line Status:
V
Topology View:
V
Floor View:
V
Google Map View:
V
VIVOTEK Camera/Video Server Configuration File Export/Import:
V
Floor Image Management:
V
Export Surveillance Management Device List:
V
Cable Diagnostics:
V
Traffic Monitoring:
V
IEEE802.1D (STP:
V
IEEE802.1w (RSTP:
V
IEEE802.1s (MSTP:
V
IEEE802.1d (LACP:
V
Static Aggregation:
V
802.1Q Tag-based VLAN:
4096 VLAN IDs
Port-based VLAN:
V
Private VLAN Edge (PVE:
V
GARP VLAN:
V
Q-in-Q (Double Tag:
V
Protocol-based VLAN:
V
MAC-based VLAN:
V
Voice VLAN:
V
IP Subnet-based VLAN:
V
Multicast VLAN Registration (MVR:
V
IGMP Snooping (v1/v2:
V
DHCP Relay:
V
MLD v1/v2 Snooping:
V
IPv4/IPv6:
V
Hardware Queues:
8
Port Based:
V
802.1p:
V
Ingress:
V
Egress:
V
Per Port:
V
WRR:
V
DSCP & Class of Service:
V
RADIUS Authentication:
V
IGMP-RADIUS Based:
V
Secure Sockets Layer (SSL:
V
Port Security:
V
IP Source Guard:
V
Storm Control:
V
Layer 2 Isolation Private VLAN Edge (PVE:
V
RADIUS/TACACS:
V
Loop Detection:
V
DHCP Snooping:
V
Up to 384 Entries:
V
Source and Destination MAC, VLAN ID or IP Address, Protocol, Port:
V
DSCP) / IP Precedence:
V
TCP/ UDP source and destination ports:
V
802.1p priority:
V
ICMP Packets:
V
Ethernet type:
V
TCP flag:
V
SNMP (v1, v2c, v3:
V
RMON (1,2,3 & 9 groups:
V
DHCP Server & Client:
V
Port Mirroring:
V
UPnP:
V
LLDP (IEEE802.1ab:
V
LLDP-MED:
V
S-Flow:
V
Firmware Upgrade:
V
NTP:
V
PoE On/Off Control:
V
PoE Alive Checking for PD:
V
PoE Scheduling:
V
Power Delay:
V
Non-Stop PoE:
V
Extended PoE Mode (up to 250m/10mbps:
V
IEEE 802.3af/at/bt PoE Standard Compliant:
V
Number of PoE Output Port:
8
PoE Output Power:
Port 1-6 at 30W, Port 7-8 bt 90W
Totoal PoE Power Budget:
130 W
PoE Pin Assignment:
Port 1-6 AF/AT, Port 7-8 BT 4-pair
Operating Temperature:
-10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature:
-20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity:
10 ~ 90% RH
Dimensions:
220 (W) x 44 (H) x 242 (D) mm
Weight:
1.95 kg
AC Input:
100V ~ 240V
Frequency:
50 ~ 60 Hz
Features:
UL, CE, UKCA, FCC, VCCI, LVD, ICES
Warranty:
24 months
Included Accessories:
Power Cord, QIG, CD Manual, Rack Mount Kit
Product Type:
Switch
Connectivity:
Wired
Power Type:
PoE+
Housing Color:
White
Lens Focal Length:
4.3-6.9 mm
Power:
PoE
Power Watts:
90W
