Model:
AW-GEV-104B-130
Product Description:

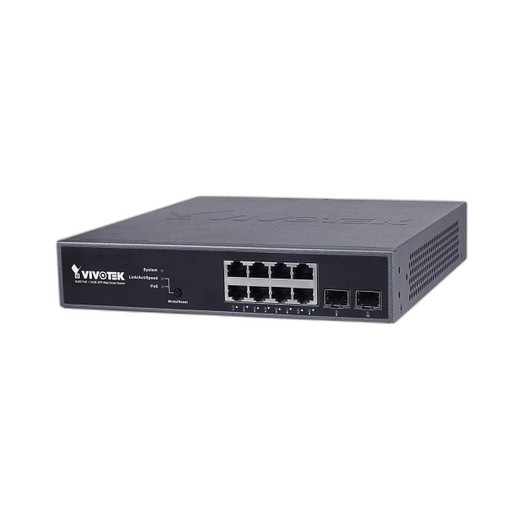

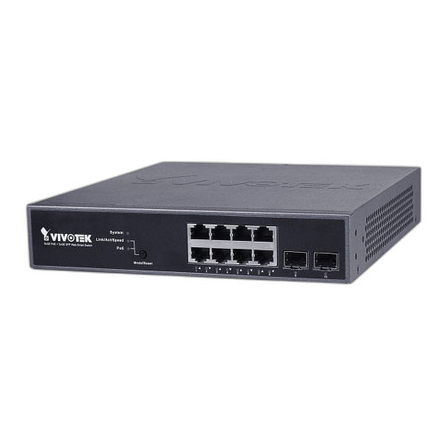

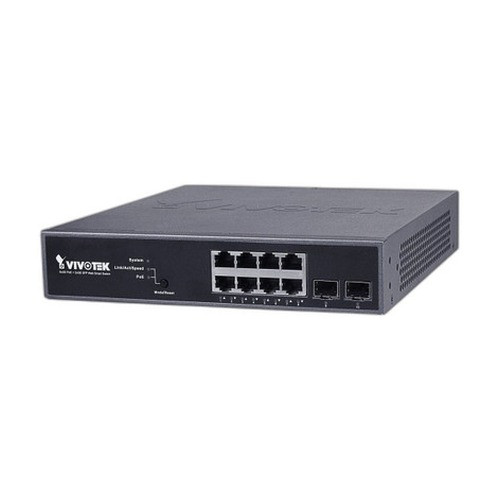

8xGE PoE + 2xGE SFP VivoCam Web Smart Managed PoE Switch
10M/100M/1G RJ45 Port:
8
100M/1G SFP Port:
2
Total Ports:
10
Auto MDI/MDI-X:
V
IEEE 802.3x:
V
IEEE 802.3u:
V
IEEE 802.3ab:
V
Switching Bandwidth:
20Gbps
Buffer Memory:
4.1Mb
MAC Address:
8K
Jumbo Frames:
10000 Bytes
Auto Search VIVOTEK Device:
up to 256 pcs
Surveillance Device Management List:
V
DHCP Server Function:
V
VIVOTEK Device Account/Password Setting:
V
VIVOTEK Device Static IP Setting:
V
VIVOTEK Device Grouping Setting for VLAN:
V
VIVOTEK Device Name Edit:
V
VIVOTEK Camera/Video Server Reboot/Restore Default:
V
VIVOTEK Device Re-direct Link:
V
VIVOTEK Device On/Off Line Status:
V
Topology View:
V
Floor View:
V
Google Map View:
V
VIVOTEK Camera/Video Server Configuration File Export/Import:
V
VIVOTEK Cameras/Video Server Configuration File Management:
V
Floor Image Management:
V
Export Surveillance Management Device List:
V
Security:
V
Trouble Shooting:
V
Traffic Monitoring:
V
IEEE802.1D (STP:
V
IEEE802.1w (RSTP:
V
IEEE802.1s (MSTP:
V
IEEE802.1d (LACP:
V
Static Aggregation:
V
802.1Q Tag-based VLAN:
4096 VLAN IDs
Port-based VLAN:
V
Private VLAN Edge (PVE:
V
GARP VLAN:
V
Q-in-Q (Double Tag:
V
Protocol-based VLAN:
V
MAC-based VLAN:
V
Voice VLAN:
V
IP Subnet-based VLAN:
V
Multicast VLAN Registration (MVR:
V
IGMP Snooping (v1/v2/v3:
V
DHCP Relay:
V
MLD v1/v2 Snooping:
V
Hardware Queues:
8
Port Based:
V
802.1p:
V
Ingress:
V
Egress:
V
Per Port:
V
WRR:
V
DSCP & Class of Service:
V
RADIUS Authentication:
V
IGMP-RADIUS Based:
V
Secure Sockets Layer (SSL:
V
Port Security:
V
IP Source Guard:
V
Storm Control:
V
Layer 2 Isolation Private VLAN Edge (PVE:
V
RADIUS/TACACS:
V
Loop Detection:
V
DHCP Snooping:
V
SNMP (v1, v2c, v3:
V
RMON (1,2,3 & 9 groups:
V
DHCP Server & Client:
V
Port Mirroring:
V
UPnP:
V
LLDP (IEEE802.1ab:
V
LLDP-MED:
V
S-Flow:
V
Firmware Upgrade:
V
NTP:
V
TFTP:
V
PoE On/Off Control:
V
PoE Alive Checking for PD:
V
PoE Scheduling:
V
Power Delay:
V
IEEE 802.3af/at PoE Standard Compliant:
V
Number of PoE Output Port:
8
PoE Output Power:
Per Port 54VDC, Max. 30W
Total PoE Power Budget:
130W
PoE Pin Assignment:
1/2(+), 3/6(-)
Surge Protection:
Per PoE Port 6KV
Operating Temperature:
0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature:
-20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity:
10 ~ 90% RH
Dimensions:
220 (W) x 44 (H) x 242 (D) mm
Weight:
1.95 kg
AC Input:
100V ~ 240V
Frequency:
50 ~ 60 Hz
Power (Max:
150W
Warranty:
24 months
Included Accessories:
Power Cord, QIG, CD Manual, Rack Mount Kit
Features:
UL, CE, UKCA, FCC, VCCI, LVD, ICES
Product Type:
Switch
Connectivity:
Wired
Power Type:
PoE+
Housing Color:
White
