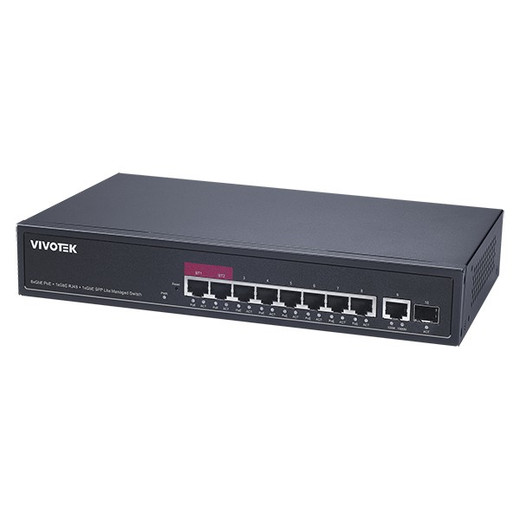

Vivotek AW-GEL-105A-110 8-Port Gigabit PoE High Power + 1-Port SFP Lite 110 W Managed Switch

Vivotek AW-GEL-105A-110 8-Port Gigabit PoE Managed Switch

The Vivotek AW-GEL-105A-110 is a high-performance managed network switch purpose-built for IP surveillance and security deployments. Combining eight Gigabit Ethernet PoE ports with one SFP port, this switch delivers 110W total power budget to simultaneously support multiple high-power security devices. Its robust architecture ensures reliable data and power transmission over single network cables, streamlining installation and reducing deployment complexity.

Key Features

• 8x Gigabit PoE ports (2x 90W High Power + 6x 30W Standard PoE)
• 1x Gigabit RJ45 uplink port for extended connectivity
• 1x SFP port for fiber flexibility and extended range
• 110W total PoE power budget for multiple simultaneous connections
• 20 Gbps switching bandwidth for high-speed data transfer
• IEEE 802.3 af/at/bt compliant with 4KV surge protection per port
• Extended PoE mode supports up to 250 meters
• Managed switching with VLAN, QoS, and advanced traffic control

Technical Specifications

• Ports: 8 Gigabit PoE + 1 Gigabit uplink + 1 SFP Lite (10 total)
• PoE Distribution: Ports 1-2 deliver 90W each; Ports 3-8 deliver 30W each
• Buffer Memory: 1.5 MB for smooth packet handling
• MAC Address Table: 4,096 entries
• Jumbo Frame Support: 9,216 bytes
• VLAN Capacity: 4,096 VLAN IDs with tag-based and port-based support
• Switching Technology: STP, RSTP, and link aggregation support
• QoS Controls: Port-based, 802.1p, and DSCP-based CoS
• Security Features: Port isolation, loop protection, storm control, static MAC binding
• Power Input: 100-240V AC, 50-60 Hz; 120W consumption
• Dimensions: 270 x 181 x 44 mm; 1.15 kg
• Operating Range: 0-50°C; Storage -20-70°C
• Certifications: CE, FCC, LVD, VCCI
• Warranty: 24 months

Advanced Network Management

This managed switch provides granular control over network resources through comprehensive traffic shaping, bandwidth management, and port mirroring capabilities. Non-stop PoE functionality ensures continuous power delivery during network events, while PoE auto-checking and on/off control optimize device management and reduce power waste. Flow control and storm protection mechanisms maintain network stability in demanding surveillance environments.

Applications

• Multi-camera IP surveillance systems
• Large-scale security deployments requiring high power distribution
• Access control and perimeter security networks
• Mixed deployments combining standard and high-power PoE devices
• Networks requiring fiber backbone connectivity via SFP port

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The AW-GEL-105A-110 excels in hybrid-power environments where security equipment varies in power demand. The dual-tier PoE architecture—90W ports for PTZ cameras and high-intensity lighting, 30W ports for fixed domes and access points—eliminates the need for multiple switch types. Extended PoE mode extends reach to 250 meters, valuable for remote surveillance zones.

The 20 Gbps switching bandwidth handles simultaneous 1080p/4K streams without congestion. VLAN isolation and advanced QoS ensure video traffic priority while maintaining security system responsiveness. Port mirroring enables real-time network diagnostics without disrupting operations.

This switch represents a practical solution for mid-to-large installations where power budget, range, and flexibility directly impact total cost of ownership.
