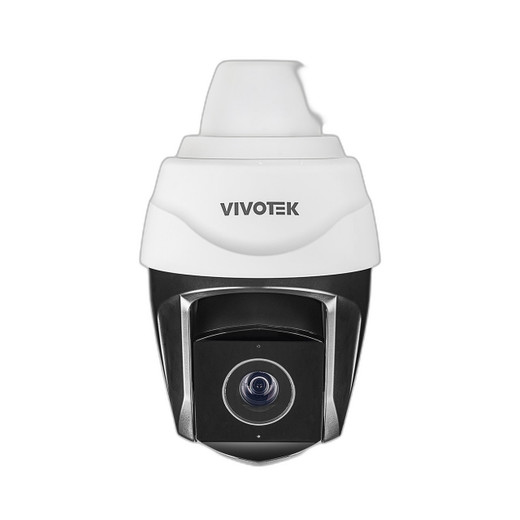

Vivotek SD9368-EHL 2MP Outdoor PTZ Smart Tracking IR Camera

Vivotek SD9368-EHL 2MP Outdoor PTZ Smart Tracking IR Camera

The Vivotek SD9368-EHL is a professional-grade outdoor PTZ camera purpose-built for large-scale perimeter and facility surveillance where a single operator cannot physically track targets across hundreds of meters. The 40x optical zoom lens (4.25–170mm focal length) covers a horizontal field of view from 65.7° wide to 1.9° narrow, eliminating the need to deploy multiple fixed cameras across airport runways, seaport perimeters, or industrial facility boundaries. The 2MP sensor captures 1920×1080 resolution at 60 fps, delivering crisp detail sufficient for facial recognition and vehicle license plate capture at distance. H.265 compression cuts storage overhead 40–60% compared to H.264 — a material cost reduction on 24/7 recording deployments with multiple cameras feeding centralized NVR or cloud storage.

Key Features

• 40x Optical Zoom with Auto-Focus: Focal length 4.25–170mm and electronic shutter (1 sec. to 1/100,000 sec.) with F1.6–F4.95 DC-iris aperture adapt automatically to bright daylight and low-light transitions without lag. This eliminates the need to manually adjust exposure or hand off tracking between different fixed angles — the camera maintains focus and brightness as it zooms.
• 360° Endless Pan with Rapid Motion: Pan/tilt speeds up to 450°/s with 256 preset locations and 128 presets per tour reduce manual intervention on unattended perimeter sweeps. The camera can sweep your entire facility boundary in seconds, then return to a preset location for continuous monitoring. Mechanical auto-flip supports inverted mounting on structural overhangs without requiring a mirror dome.
• Smart Tracking Advanced with Deep Learning: Built-in AI detects and autonomously tracks people and vehicles (4-wheeled and 2-wheeled) in real time. The camera locks onto a target and maintains frame centering as it moves, flagging intrusion, loitering, line-crossing, and face detection events. This eliminates the need for dedicated tracking operators on large facilities — the camera delivers event-driven alerts and maintains target lock automatically.
• IR Night Vision to 250 Meters: Smart IR illuminators extend effective surveillance range far beyond standard incandescent or halogen dome designs. Minimum illumination of 0.005 lux in monochrome mode and 0 lux capability with IR enabled means you capture usable detail in near-total darkness without relying on external lighting infrastructure — critical for unattended perimeters.
• WDR Pro (120 dB Dynamic Range): Simultaneous capture of bright skies and dark ground-level activity in a single frame eliminates the need for exposure adjustment tours. Facility entrances and loading docks with mixed lighting conditions render with balanced detail across bright and shadowed areas without manual intervention.
• Multiple Power Options with Redundancy: PoE (IEEE 802.3bt Class 6), DC 48V, or AC 24V with simultaneous power input support. If your PoE infrastructure fails, the camera switches to battery-backed DC without interruption — critical for unattended perimeter security where downtime is not acceptable.
• H.265/H.264/MJPEG with Smart Stream III: Adaptive bitrate control ensures that high-motion zones (vehicle traffic, wind-blown vegetation) consume more bandwidth while static areas compress further. This balances detail retention with bandwidth constraints on remote site links and reduces recording server storage wear.
• MicroSD/SDHC/SDXC Support Plus NAS: Local card storage (up to maximum card capacity) provides a fallback if your network recorder or cloud connection fails. NAS integration enables immediate offload to centralized storage without additional middleware or cloud dependency.
• Two-Way Audio with G.711/G.726: Full duplex communication with external line in/out allows remote two-way conversation. Valuable for gated facilities or loading bays where you need to communicate with personnel at the perimeter without dispatching staff.
• Security Architecture: Secure boot, signed firmware, Trend Micro IoT Security (3-year trial included), HTTPS, IEEE 802.1x authentication, and comprehensive user access logging meet enterprise cybersecurity baselines. ONVIF Profile G, S, and T compliance ensures broad NVR and VMS integration without proprietary gateways. Compatible with Milestone XProtect, Axis Camera Station, and other standards-based platforms.

Integration & Compatibility

The SD9368-EHL supports up to 10 simultaneous live-view clients with 3 concurrent video streams (8 configurable profiles). ONVIF compliance allows PoE-powered network switches to deliver power and connectivity from a central wiring closet, simplifying outdoor installation and reducing ground-level service points. The camera's AI tracking engine processes detections on-board, meaning you receive event notifications and video clips without sending raw feeds upstream — reducing bandwidth strain on remote site connections.

Deployment Scenarios

Seaports & Cargo Facilities: The 250m IR range and 40x zoom capture container markings, vehicle license plates, and personnel activity across vast dock areas. Smart tracking maintains focus on a moving target (forklift, truck, suspicious individual) while you allocate operator attention to other zones.

Airport Runways & Perimeters: Rapid 450°/s pan/tilt and 256 presets allow the camera to cover runway approaches, taxiways, and the perimeter fence in coordinated sweeps. Intrusion and line-crossing detection immediately flag unauthorized boundary approach without human monitoring.

Industrial Facility Boundaries: The 40x zoom eliminates the need for a patchwork of fixed cameras along miles of fence line. One SD9368-EHL can monitor a 2–3 km perimeter segment with preset scanning, then zoom in on detected motion for detail verification.

Parking Structures & Gated Entries: The 2MP sensor with 1920×1080 60 fps delivery captures vehicle registration plates and driver faces at entry/exit gates. WDR Pro handles the backlit garage entrance without exposure washout. Two-way audio allows remote gate control communication.

Frequently Asked Questions

Q: What is the maximum optical zoom range on the SD9368-EHL?

A: The SD9368-EHL features a 40x optical zoom (4.25–170mm focal length), delivering horizontal field of view from 65.7° at wide angle to 1.9° at full telephoto. There is no digital zoom beyond the optical range — optical zoom preserves detail without interpolation.

Q: How far can the IR illuminators reach?

A: The Smart IR illuminators extend to 250 meters (820 feet) in darkness with monochrome (B/W) capture at 0.005 lux minimum illumination. At that distance, you will see silhouettes and basic movement detail. For facial recognition or license plate capture, IR effectiveness ranges 80–150m depending on target reflectivity and aperture setting.

Q: Can the SD9368-EHL work without PoE if my network switch does not support IEEE 802.3bt Class 6?

A: Yes. The SD9368-EHL accepts DC 48V or AC 24V as alternative power inputs independent of PoE. You can wire DC or AC in parallel with PoE for redundancy, or rely solely on DC/AC if your switch lacks sufficient power budget.

Q: Does the SD9368-EHL support ONVIF?

A: Yes, the SD9368-EHL is compliant with ONVIF Profile G, S, and T. This ensures compatibility with Milestone XProtect, Axis Camera Station, Genetec, and other standards-based VMS platforms without manufacturer-specific plugins.

Q: What is the typical H.265 compression ratio compared to H.264?

A: H.265 achieves 40–60% smaller file sizes than H.264 for equivalent visual quality, depending on scene complexity (high motion and detail scenes compress less than static scenes). On a 24/7 multi-camera system, this translates to meaningful storage and bandwidth savings.

Q: Is the SD9368-EHL suitable for submersion or heavy spray?

A: The SD9368-EHL carries IP66 rating, meaning it tolerates direct rain and dust jets — adequate for rooftop and overhead installations. IP66 does not include full submersion; if you require underwater or full-submersion mounting, you will need a higher IP rating (IP67 or above) which the SD9368-EHL does not provide.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SD9368-EHL is a legitimate tool for sprawling outdoor surveillance where distance and target mobility are the primary constraints. I've seen these handle 24/7 perimeter duty on three-shift facilities without breaking a sweat. The 40x optical zoom and 250m IR range are not overblown — they solve a real problem: you get one camera doing the work of six or eight fixed units, which means fewer cable runs, fewer NVR channels, fewer licensing headaches.

Technical Highlights:

• 40x Optical Zoom + 0.005 Lux IR Sensitivity: Most outdoor turrets max out at 12x zoom and 50–80m IR. The SD9368-EHL's 170mm telephoto and Smart IR reach 250m, meaning you are capturing usable detail (silhouette, movement, basic recognition) on unlit perimeters that standard PTZs simply cannot address. Real-world benefit: fewer night-time blind spots, fewer supplemental lighting installations.
• AI Smart Tracking (Deep Learning): The on-board people and vehicle detection with automatic tracking reduces the need for a live operator to manually pan/tilt following a target. Once a person crosses an intrusion line or loiters in a zone, the camera locks and maintains frame centering. You get event-driven notifications instead of requiring constant surveillance.
• H.265 + 60 fps @ 2MP: Recording 60 fps at 1920×1080 with H.265 compression consumes roughly 3–5 Mbps depending on scene motion and detail. That is manageable on a 1 Gbps switch, and with H.265's 40–60% bitrate savings over H.264, your NVR storage footprint drops substantially on 24/7 deployments. I typically see 30–40% real-world reduction in disk wear.
• Triple Power Input (PoE + DC 48V + AC 24V): This is a standout. If your PoE switch goes down, the camera does not black out — it falls back to battery-backed DC or hardwired AC. For unattended perimeter sites where you cannot afford downtime, that redundancy is worth the extra wiring cost.

Deployment Considerations:

• The 2MP sensor is a tradeoff. You get zoom reach and low-light performance, but facial recognition and plate capture rely heavily on distance and IR reflectivity. At 200m+ with 40x zoom, expect silhouette-quality detail. If you need readable faces at that range, a 4MP or 5MP PTZ will give you more margin, but it will cost more, draw more power, and introduce higher compression artifacts on a 1 Gbps network.
• Smart Tracking is intelligent but not infallible. On crowded scenes (multiple people, vehicles in convoy) the AI may lose lock or chase the wrong target. Test it with your expected traffic patterns before committing to fully unattended operation. The SD9368-EHL handles sparse, isolated targets flawlessly — a lone vehicle on a perimeter fence, a single person crossing a line. Dense, overlapping motion requires some operator override capability as backup.
• The 450°/s pan speed is fast — sometimes too fast for zoomed-in detail. If you preset the camera at 40x zoom and then execute a rapid pan, you may overshoot your target. Use slower pan speeds (presets rather than continuous pan) when operating at telephoto, or the AI will lose focus during transit.

Deploy the SD9368-EHL on perimeter surveillance where you need to monitor a long boundary (airport approach, seaport dock, industrial fence line) and target movement is sparse or predictable. The 40x zoom, 250m IR, and Smart Tracking transform one camera into the equivalent of 6–8 fixed units, with on-board intelligence that flags intrusion and loitering without operator intervention. Do not expect it to deliver readable facial detail at extreme distance — that is a function of physics and sensor size, not zoom optics.
