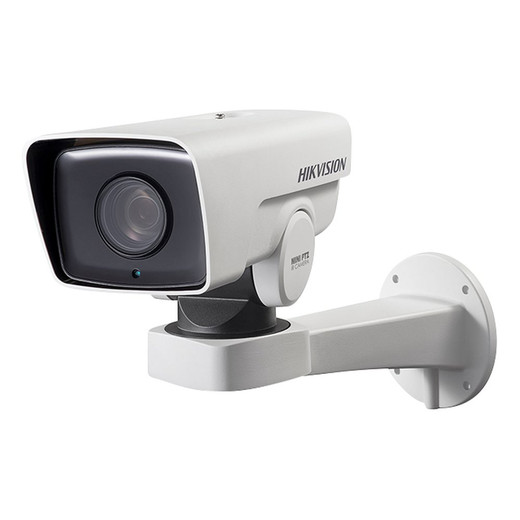

Hikvision DS-2DY3220IW-DE 2MP Outdoor IR PTZ Camera

Hikvision DS-2DY3220IW-DE 2MP Outdoor IR PTZ Camera

The Hikvision DS-2DY3220IW-DE is a compact outdoor PTZ designed to cover large areas without the bulk of traditional full-size domes. It delivers 2MP (1920×1080) resolution paired with 20x optical zoom and 100-meter IR illumination — enough to capture detail across parking lots, campus grounds, or perimeter fencing while maintaining 24/7 surveillance in low-light conditions. IP66 rating and -30°C to 65°C operating range mean weather and temperature swings won't degrade performance.

Key Features

• 20x Optical + 16x Digital Zoom (4.7–94 mm): Covers 61.4° wide-area monitoring down to 2.9° field of view for facial detail — no need to swap cameras or use multiple fixed lenses for the same coverage footprint.
• 360° Endless Pan, Full Tilt, 300 Presets: Configurable pan speed (0.5°–50°/s) and tilt speed (0.5°–25°/s) with 8 patrol routes and 4 pattern scans allow automated surveillance sequences without operator intervention — critical for unattended overnight monitoring.
• IR Night Vision to 100 m: Smart IR with 0 Lux B/W performance (0.01 Lux sensitivity) and color operation down to 0.05 Lux — covers long perimeter runs and parking areas without washing out near-field detail.
• Single PoE+ Connection: Draws under 13W typical via standard 802.3af PoE, eliminating separate power runs. One RJ45 drops to the switch; simplifies wiring on retrofits or distributed outdoor layouts.
• H.265+ Compression: Reduces storage and bandwidth 40–60% versus H.264 depending on scene complexity — meaningful over 24/7 recording on multi-camera recorders where storage retention directly impacts operating cost.
• Intelligent Line/Region Detection: Built-in intrusion, line-crossing, and entrance/exit analytics trigger alarms and FTP/NAS uploads on detection — offloads basic event correlation from the NVR.
• 8 Privacy Masks, MicroSD Slot (up to 128 GB): Mask sensitive areas (building interiors, neighboring property) and store backup footage locally via autonomous network recording (ANR) — isolates your deployment from network outages.
• Three Simultaneous Streams, IPv4/IPv6, RTSP/HTTPS: Supports 20 live view channels and 32 users with tiered authentication — scales across corporate security teams and integrates with standard VMS platforms without vendor lock-in.

Integration & Compatibility

The DS-2DY3220IW-DE outputs RTSP/RTCP and HTTP/HTTPS, making it compatible with any standards-based network video recorder or VMS that speaks ONVIF. Audio input/output (1 each) and dual alarm ports support two-way communication and external relay triggers. IP filtering and IEEE 802.1x support integrate into corporate access control schemes.

When to Choose a Different Model

If you need higher resolution (4MP or 5MP) for facial recognition at extreme distances, consider a higher-megapixel variant in the Hikvision PTZ line. If mounting flexibility is paramount and you need wall/pole versatility, explore fixed outdoor IP cameras with bracket options. For indoor only, a smaller compact PTZ will reduce cooling and wiring demands.

Deployment Context

Deploy the DS-2DY3220IW-DE on rooftops, poles, or wall mounts overlooking extended areas — parking structures, vehicle yards, campus perimeters, transportation hubs. Its compact form factor and high-speed pan/tilt enable one camera to cover zones that would typically require 3–4 fixed cameras, reducing installation labor and cabling complexity. Use PoE switches with at least 13W per port budget, or confirm existing switches have headroom; network recorders should support H.265 decoding to fully capitalize on compression gains.

Frequently Asked Questions

Q: What's the difference between 20x optical and 16x digital zoom on the DS-2DY3220IW-DE?

A: Optical zoom uses the lens to magnify the scene — you keep full resolution detail. Digital zoom crops the image and enlarges it in software, losing resolution. Always use optical zoom (20x) for critical detail capture; digital is useful for monitoring but won't hold up to forensic review.

Q: Can the DS-2DY3220IW-DE work over a long cable run without additional power?

A: The camera draws under 13W via PoE, which is within 802.3af budget. Cable runs up to 100 meters (328 ft) are standard; beyond that, you may see voltage drop. Use a PoE injector or high-budget PoE switch if cable length exceeds 100m, and verify voltage at the camera end with a multimeter.

Q: Does the DS-2DY3220IW-DE support recording to external storage?

A: Yes — it has a microSD card slot (up to 128 GB) with ANR (autonomous network recording) capability. If the network connection drops, the camera continues recording locally; when connectivity returns, it uploads the buffered footage. Essential for branch offices or remote sites with unreliable networks.

Q: What's the minimum lighting level for the DS-2DY3220IW-DE in color mode?

A: Color operation starts at 0.05 Lux. Below that, the camera switches to B/W and activates IR illumination (0.01 Lux sensitivity), which extends the visible range to 100 meters. In parking lots with minimal ambient light, you'll typically see color during twilight hours, then B/W + IR after dark.

Q: Is the DS-2DY3220IW-DE compatible with my existing NVR?

A: If your NVR supports ONVIF and RTSP, yes — the DS-2DY3220IW-DE speaks both protocols. Check your recorder's manual for H.265 decoding support; if it only handles H.264, the camera will fall back to H.264+, but you'll lose the 40–60% bandwidth savings that H.265 provides.

Q: How do I integrate the alarm outputs from the DS-2DY3220IW-DE?

A: The camera has 1 alarm input and 1 alarm output (relay contact). Wire external sensors (door, motion, panic button) to the input; configure the camera's rules to trigger the output relay, which can drive a buzzer, light, or NVR input. Set this up in the camera's web interface under Alarm.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-2DY3220IW-DE hits a practical sweet spot in the compact PTZ segment. Its 20x optical zoom and 300 configurable presets eliminate the need for multiple fixed lenses or camera clusters covering the same perimeter — fewer cameras mean less cabling infrastructure and simpler multi-user workflows. The 0.01 Lux B/W sensitivity and 100-meter IR range are meaningful specs for overnight perimeter runs where ambient light is nonexistent; you'll capture usable detail in complete darkness without the washing-out you'd see from cheaper consumer-grade IR.

Technical Highlights:

• H.265+ codec with 3 simultaneous streams: Reduces storage footprint 40–60% vs. H.264, directly lowering NVR disk costs on 24/7 multi-camera deployments. Test this with your specific NVR to confirm H.265 decode support before full rollout.
• Sub-13W PoE power draw: Operates on standard 802.3af switches without requiring power budget upgrades. Scales to large installations where PoE++ would otherwise force switch replacement.
• ANR + microSD backup (128 GB max): If your network segment loses connectivity, the camera continues recording locally and syncs when the link returns. Not a replacement for a proper NVR, but a real failsafe for remote or unstable networks.

Deployment Considerations:

• The compact 3 kg form factor is a genuine advantage on pole mounts and retrofit installations — no need for heavy-duty brackets. Wall and ceiling work equally well.
• Watch the 2MP resolution: facial recognition at 50+ meters will be marginal. If you need true ID-level detail at distance, step up to 4MP or pair this with a secondary fixed 5MP camera covering the entry point.
• The 8 patrol routes with up to 32 presets each are useful, but test preset accuracy in strong wind (pan/tilt drift). PTZ cameras on high poles can hunt position in gusts.

Position the DS-2DY3220IW-DE for large-area coverage on parking structures, campus perimeters, and vehicle yards — anywhere one motorized lens beats the cost and complexity of 3–4 fixed cameras. Pair it with a PoE switch that has H.265 decode capability in the NVR for true TCO advantage.
