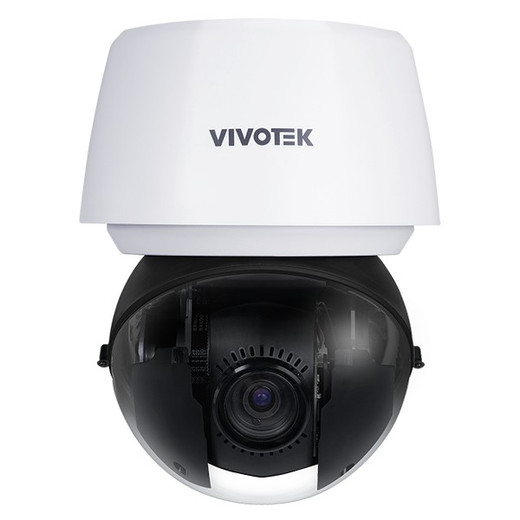

Vivotek SD9387-EHL 5MP Outdoor PTZ Dome Camera
Overview
The SD9387-EHL is a 5MP outdoor PTZ dome engineered for large-footprint surveillance—parking lots, perimeter fences, industrial yards, and transportation corridors where you need rapid pan/tilt coverage and magnification without running separate power. The 30x optical zoom (4.94–148.24mm focal length) lets operators frame distant subjects in usable detail without digital upsampling artifacts that degrade forensic value. IP66 weather sealing and IK10 impact rating mean the dome tolerates dust, rain, and incidental contact; standard outdoor durability for retrofit and new builds. PoE (802.3af) power eliminates dedicated electrical runs—a single Cat5e/Cat6 drop carries both signal and power, cutting installation time on legacy facilities. Built-in object analytics support autonomous tracking of vehicles and personnel, reducing operator fatigue on long monitoring shifts.
Compatibility
The SD9387-EHL integrates with standard IP surveillance infrastructure: ONVIF-compliant VMS platforms (Milestone, Genetec, Network Optix, VAST), PoE-capable network switches rated for 802.3af delivery, and existing surveillance racks via its rack-mount architecture. Confirm your switch's PoE budget—the camera draws power within 802.3af limits but verify available per-port headroom if deployed alongside other PoE devices on the same infrastructure.
Installation Notes
Rack-mount form factor simplifies cabinet integration but requires secure positioning to prevent vibration during pan/tilt motion. Verify mounting substrate can handle dynamic load from head movement. Keep cabling away from high-current runs to minimize EMI on video streams. Operating range is -40°C to 60°C; confirm thermal management if mounted in unventilated enclosures. 360° continuous pan capability demands unobstructed rotation—verify ceiling/wall clearance before final placement.
