Vivotek FD9383-HV 5MP Outdoor Dome Camera

Vivotek FD9383-HV 5MP Outdoor Dome Camera

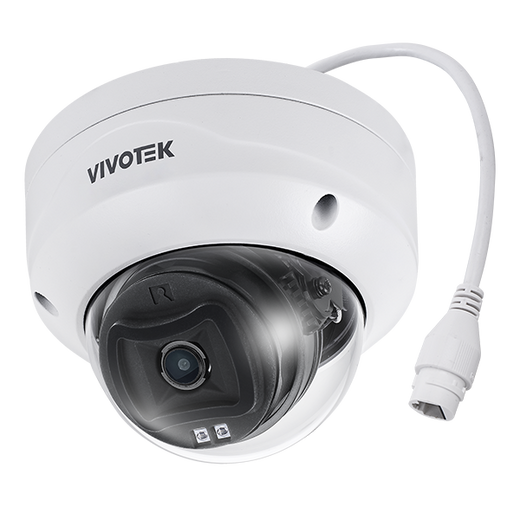

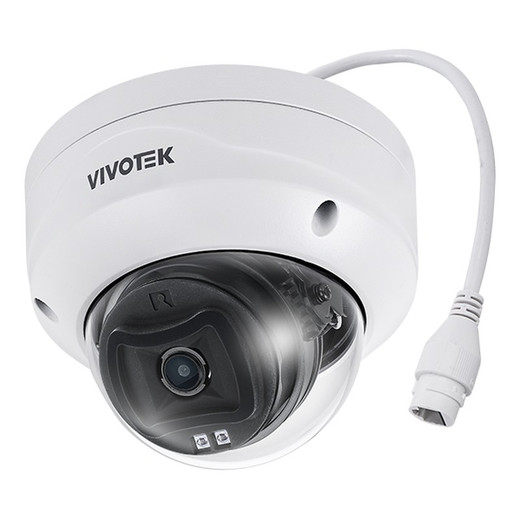

The Vivotek FD9383-HV is a rugged 5-megapixel fixed dome camera designed for enterprise-grade outdoor surveillance. With IP66 weatherproof housing, IK10 vandal resistance, and integrated 30-meter IR illumination, this camera delivers reliable perimeter monitoring across extreme temperature ranges (-10°C to 50°C). The compact dome form factor and PoE 802.3af power delivery make it ideal for building exteriors, parking areas, and wide-area security deployments in mid-market and enterprise environments.

Key Features

• 5MP resolution with 2.8mm fixed lens and 110° horizontal field of view
• H.265, H.264, and MJPEG video compression for flexible bandwidth optimization
• 30-meter integrated IR illumination for true 24/7 low-light and nighttime surveillance
• PoE (802.3af) power delivery with secure boot and signed firmware protection
• IP66 weatherproof rating and IK10 impact resistance for outdoor durability
• AI Detection and Facial Recognition analytics with object tracking capabilities
• MicroSD/SDHC/SDXC card slot for local onboard storage and backup
• Wide dynamic range (WDR) processing for backlit and high-contrast scenes
• ONVIF compatibility for seamless integration with third-party VMS platforms
• HTTPS encryption and Trend Micro IoT Security firmware protection

Technical Specifications

• Image Sensor: 5MP @ 30fps
• Aperture: F2.0 with exceptional low-light sensitivity (0.005 lux)
• Video Codecs: H.265, H.264, MJPEG
• Night Vision: Built-in IR with 30-meter range; day/night capability
• Power Consumption: PoE Class 3 (802.3af)
• Environmental: IP66 weatherproof, IK10 vandal-rated
• Operating Temperature: -10°C to 50°C
• Connectivity: Ethernet (ONVIF-compliant)
• Local Storage: MicroSD card slot
• Security: HTTPS encryption, signed firmware, secure boot

Applications

The FD9383-HV excels in demanding outdoor surveillance roles: parking lot and perimeter monitoring, building entrance surveillance, loading dock oversight, campus-wide security, and remote site monitoring. Its combination of high resolution, exceptional low-light performance, and integrated IR makes it suitable for facilities requiring 24/7 visibility without external lighting infrastructure. The analytics capabilities enable proactive threat detection and facial recognition workflows for enhanced security operations.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The FD9383-HV represents a balanced choice for mid-market outdoor deployments. The 5MP sensor and F2.0 aperture deliver strong detail capture, while the 0.005 lux low-light threshold and 30-meter IR enable reliable nighttime monitoring without supplemental lighting. H.265 codec support reduces bandwidth consumption—critical for edge storage and high-frame-rate streaming scenarios.

The integrated analytics (AI Detection, Facial Recognition, Object Analytics) add intelligence without requiring external processing, reducing infrastructure complexity. PoE 802.3af power is efficient for single-camera installations but limits expansion options on shared PoE switches. IP66 and IK10 ratings ensure outdoor longevity, though the -10°C to 50°C operating range excludes sub-zero climates.

ONVIF compatibility and HTTPS encryption position this camera well within heterogeneous VMS ecosystems. For organizations prioritizing ease of deployment, native analytics, and cost-effective perimeter coverage, the FD9383-HV justifies its enterprise-grade build quality.
