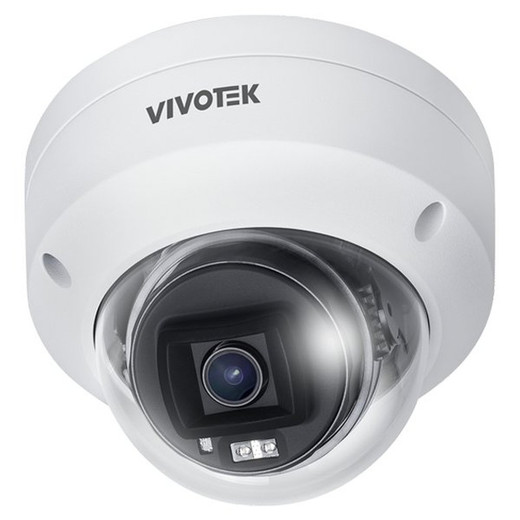

Vivotek FD9380-HV-V2 5MP Outdoor Dome Camera
The Vivotek FD9380-HV-V2 is a compact outdoor surveillance dome built for fixed-position perimeter monitoring, loading docks, and exposed facility locations. It delivers 5MP resolution in a weather-sealed form factor paired with onboard AI-driven analytics—eliminating the need for a separate analytics server in many deployments and cutting both system complexity and network bandwidth overhead.
Key Features
- 5MP Resolution (2592 x 1944) with 2.8mm Fixed Lens: Captures sufficient detail for facial recognition and license plate identification at typical outdoor surveillance distances of 15–30 feet. A fixed lens simplifies installation and eliminates focus-hunting in changing light conditions, reducing commissioning time on site.
- IP67 Environmental Rating: Complete dust and water resistance handles rain, spray, and airborne debris without degradation. Unlike IP66, IP67 permits brief submersion—a genuine advantage in loading docks, flood-prone zones, or areas with wash-down operations where water exposure is routine.
- IK10 Impact Resistance: Rated for 20 joules of direct kinetic impact, defending against vandalism and accidental strikes. Critical for exposed outdoor locations where the dome is accessible to foot traffic or vehicle proximity.
- Smart VCA Onboard Analytics: Intrusion detection, loitering alerts, and line-crossing triggers run natively on the camera. Events don't travel to a remote server before triggering an alarm, reducing latency and network load. Particularly valuable in multi-camera deployments where a centralized analytics engine becomes a bottleneck.
- PoE Power (IEEE 802.3af): Draws under 13W, so a single PoE switch port supplies power and networking without strain. Eliminates separate power supplies at the camera, simplifying cabling runs and reducing installation cost.
- Audio Line I/O and Digital Alarm Connections: Integrates with existing analog audio systems and relay-based security infrastructure—a real asset when upgrading legacy deployments without wholesale equipment replacement.
- ONVIF Protocol Support: Works with multivendor video management systems and NVR platforms, avoiding vendor lock-in.
- Compact Dome Housing: Low-profile design blends into modern building aesthetics while shielding optics and electronics from direct environmental exposure and physical access.
Integration and Deployment Scenarios
The FD9380-HV-V2 connects via standard IP networking and supports ONVIF for broad compatibility. Audio and alarm I/O allow integration with existing building management systems without protocol conversion or middleware.
The fixed 2.8mm lens is optimized for general perimeter coverage at moderate range. If your deployment requires motorized zoom, variable focal length, or pan/tilt/zoom capability for operator-controlled tracking, evaluate a PTZ variant from the Vivotek outdoor camera range. Similarly, if you need higher megapixel density for long-distance facial recognition or license plate work beyond 30 feet, consider a higher-resolution fixed-lens model in the Vivotek portfolio.
Power arrives via PoE switches at standard 802.3af—efficient for large multi-camera rollouts where power budget is a constraint. No separate 12VDC supplies needed at the camera location.
When to Choose a Different Model
Skip the FD9380-HV-V2 if:
- You require motorized zoom or operator-controlled pan/tilt—a PTZ dome or bullet will serve you better.
- Your coverage area demands a wider field of view than a 2.8mm fixed lens provides—opt for a varifocal model or a wider-angle fixed lens.
- You're tracking 50+ simultaneous objects and need to offload analytics to a dedicated server—the onboard processing is optimized for moderate object loads, not high-density tracking scenarios.
Frequently Asked Questions
Q: Does the FD9380-HV-V2 handle backlighting and direct sunlight?
A: The camera includes wide dynamic range (WDR) processing to manage high-contrast scenes—for example, a dark doorway against bright daylight. Avoid pointing the dome directly at the sun for extended periods, which can damage the sensor. Position the dome to minimize glare reflection off glass, water, or polished surfaces.
Q: What video codecs and compression formats does the FD9380-HV-V2 support?
A: The camera supports H.265, H.264, and MJPEG compression. H.265 cuts storage overhead roughly 40–50% versus H.264 on 24/7 recording, a real factor when managing multi-camera NVR capacity.
Q: Is the FD9380-HV-V2 compatible with my existing Milestone XProtect or Axis Camera Station installation?
A: Yes. The FD9380-HV-V2 is ONVIF Profile S/T/G compliant, meaning it integrates with most standard VMS platforms including Milestone, Axis Camera Station, and other ONVIF-supporting systems. Confirm your VMS version supports ONVIF before deployment.
Q: Can I use the FD9380-HV-V2 indoors as well as outdoors?
A: Yes. While rated for outdoor environmental conditions (IP67/IK10), the camera operates indoors without issue. The compact dome design blends into both interior and exterior installations.
Q: What is the minimum light level the FD9380-HV-V2 requires?
A: The camera operates in low-light conditions and includes day/night switching via an internal IR filter. Consult the manufacturer datasheet for precise minimum illumination thresholds, as performance varies with lens aperture and scene content.
Q: Does the FD9380-HV-V2 include infrared (IR) illumination for night vision?
A: The camera supports IR technology with switchable day/night filtering. Verify the specific IR range and illumination pattern in the product datasheet for your exact installation distance and ambient lighting conditions.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The FD9380-HV-V2 is a solid choice for fixed-position outdoor perimeter work where you want analytics onboard and power simplicity. The IP67/IK10 rating is genuine—it's not just marketing. That IP67 rating means the camera survives brief submersion, which matters in loading dock or high-volume wash-down environments where IP66 falls short. The sub-13W PoE draw is meaningful too: on a crowded switch, you're not fighting for power budget.
Technical Highlights:
- IP67 + IK10: Full dust resistance and 20-joule impact rating—not typical for budget domes. This durability matters in high-traffic or vandalism-prone areas.
- Smart VCA on the camera: Intrusion, loitering, and line-crossing detection run locally. On a 20-camera perimeter system, this offloads significant bandwidth and processing from your NVR.
- H.265 compression: Cuts storage 40–50% versus H.264 at the same quality. On 24/7 recording across 4–8 cameras, you save real money on NVR disk capacity.
- 2.8mm fixed lens: No focus hunting, no servo lag. Simplifies installation and means predictable performance in variable outdoor lighting.
Deployment Considerations:
- The fixed 2.8mm lens is optimized for 15–30 foot coverage. If you need to read license plates at 60+ feet or cover a wider perimeter, this camera will disappoint—step up to a higher megapixel model or a varifocal variant.
- Smart VCA works well for low to moderate object loads (intrusion zones, loading dock gates, parking lot perimeter). If you're tracking 50+ simultaneous objects or running people-counting across a busy floor, offload analytics to a dedicated server or NVR.
- Wide dynamic range is present and useful, but avoid pointing the dome directly into afternoon sun for extended periods—sensor damage risk is real.
Deploy the FD9380-HV-V2 where fixed monitoring angles, rugged environmental resistance, and local analytics make operational sense: outdoor perimeter gates, parking barrier monitoring, loading dock coverage, and facility entry points where the field of view doesn't change and event detection is moderate-scale.
