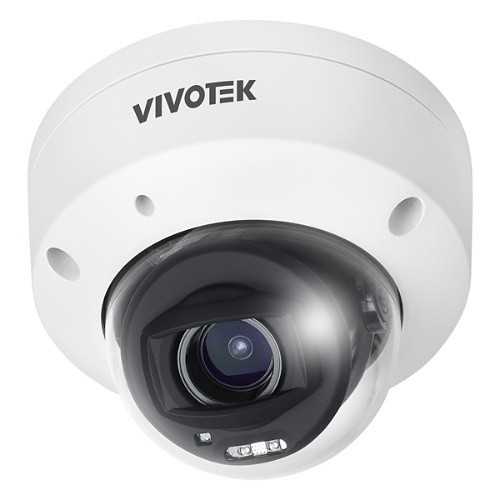

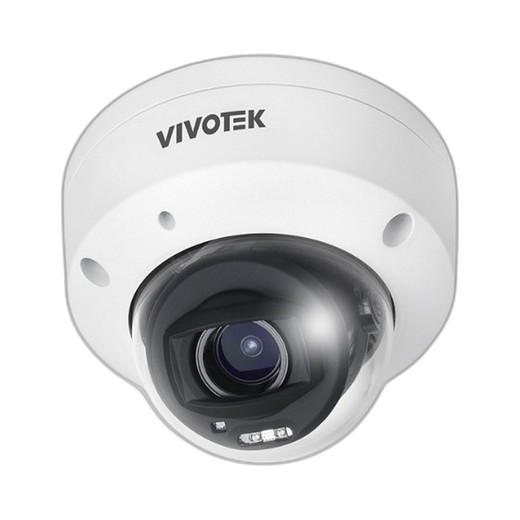

Vivotek FD9380-HTV-V2 5MP Outdoor Varifocal Dome Camera
The Vivotek FD9380-HTV-V2 is a 5MP outdoor network dome camera designed for deployments where coverage zones shift, access is constrained, or focal length must be adjusted during commissioning without site revisits. The compact weatherproof housing and field-adjustable 2.7–13.5mm varifocal lens eliminate the cost and logistics of spare fixed-lens modules—technicians dial in the focal length once during setup, and it holds across camera lifecycle. This model integrates into existing IP camera infrastructure via standard ONVIF networking, supporting both on-premises NVR systems and hybrid VMS deployments.
Key Features
- 5MP Resolution (2592 × 1944 pixels): Captures fine forensic detail—license plates, facial features, clothing patterns—across wide outdoor zones from a single vantage point, reducing the number of cameras required to cover complex perimeters and limiting the megapixel-driven storage premium.
- 2.7–13.5mm Varifocal Lens with 5x Optical Zoom: Adjust focal length during commissioning to match your coverage zone without returning to site or swapping lens modules. This flexibility is critical in environments where seasonal operations, temporary barriers, or access restrictions prevent post-deployment repositioning.
- IP66 Weatherproof Dome Enclosure: Direct rain and dust ingress won't compromise 24/7 outdoor operation across temperate and subtropical climates. Note: IP66 does not permit full submersion—if your site includes fountains or pools, specify an IP67-rated variant instead.
- On-Camera AI Analytics: Built-in object detection and motion analysis run at the edge, eliminating the need to stream every second of video to a central analytics appliance or VMS. This cuts bandwidth overhead, reduces false alarms, and lowers licensing complexity on multi-camera estates.
- H.264 and H.265 Codec Support: H.265 compression typically cuts storage consumption 40–60% compared to H.264 under identical scene complexity—a direct cost reduction when recording 24/7 across dozens of outdoor cameras on limited recorder capacity.
- PoE Power (IEEE 802.3af, <13W typical): Draws minimal power from a standard PoE switch, so it won't strain your power budget. No separate 12VDC supply lines or external adapters required—simplifies retrofit installations where conduit space is already tight.
- ONVIF Compliance: Pairs with Vivotek VAST NMS, Milestone, Genetec, and other standard VMS platforms without proprietary integration overhead. Supports remote web and mobile access for distributed management.
- Compact Dome Form Factor: Standard wall, ceiling, and corner mount points integrate into existing outdoor infrastructure. Mounting template and wind-load verification are essential before high-elevation or coastal installations.
Integration and Deployment Context
The FD9380-HTV-V2 operates as a drop-in ONVIF IP device. Power arrives via PoE—no external supply runs needed. Lens adjustment is field-accessible during setup; once dialed in, the focal length requires no recalibration or firmware cycles. This makes it suitable for enterprise campuses, municipal facilities, transportation hubs, and retail perimeter applications where you need to cover multiple zones from single fixed mount points and cannot easily reposition cameras after go-live.
The varifocal lens eliminates the cost of maintaining spare fixed-lens variants for different coverage patterns. In large deployments (50+ cameras), this inventory simplification and reduction in site revisits directly offsets the higher unit cost of a varifocal model.
When to Choose a Different Model
If submersion resistance is essential (pools, fountains, wet-room applications), seek an IP67-rated model in the same product family. For indoor-only environments or applications where focal length is fixed and known at design time, fixed-lens alternatives deliver lower cost with no loss of capability. If forensic facial recognition beyond 50 meters is the primary use case, evaluate 8MP or higher-resolution variants—5MP excels at mid-range detail (10–40 meters) but trades resolution for wide area coverage.
Frequently Asked Questions
Q: Does the FD9380-HTV-V2 require a separate power supply?
A: No. It draws under 13W and operates via standard IEEE 802.3af PoE. A single PoE switch port supplies power and networking in one cable run.
Q: Can I adjust the lens focal length after installation is complete?
A: Yes. The varifocal lens is field-adjustable during commissioning and can be readjusted if operational requirements change. No internal recalibration or firmware updates are required after focal selection.
Q: Is the FD9380-HTV-V2 compatible with third-party VMS platforms like Milestone or Genetec?
A: Yes. The camera is ONVIF-compliant and integrates with standard VMS systems. It also works with Vivotek's VAST NMS platform.
Q: What compression codecs does it support?
A: The FD9380-HTV-V2 supports both H.264 and H.265. H.265 reduces storage consumption by roughly 40–60% depending on scene complexity.
Q: Is the IP66 rating suitable for all outdoor environments?
A: IP66 protects against direct rain and dust, supporting 24/7 operation across temperate and subtropical climates. It does not permit full submersion—verify extreme weather and UV exposure requirements for your specific site before final selection.
Q: Does the camera include on-board analytics?
A: Yes. The FD9380-HTV-V2 features on-camera object detection and motion analysis, reducing bandwidth overhead and false alarms without external appliances.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Vivotek FD9380-HTV-V2 is a solid choice when you need field-adjustable focal length and don't want to stock multiple fixed-lens variants. The 2.7–13.5mm varifocal range covers most outdoor perimeter deployments—from 10-meter entry-zone detail up to 50+ meter wide-area surveillance—without requiring a site revisit to swap optics. The real value lies in the varifocal flexibility combined with reasonable 5MP resolution and edge analytics capability.
Technical Highlights:
- 5MP at 2592 × 1944 resolution: Forensic-quality license plate and facial detail across mid-range zones (10–40 meters). Avoids the storage penalty of 8MP or higher while still delivering usable facial recognition at typical outdoor perimeter distances.
- 2.7–13.5mm varifocal lens (5x optical zoom): Eliminates the logistics headache of maintaining spare fixed-lens modules. Dial in your coverage during commissioning—no firmware recalibration, no second visit required.
- H.265 codec support: Reduces storage burn by 40–60% versus H.264 on 24/7 outdoor recording. Meaningful when deploying dozens of cameras on limited NVR capacity—you recoup the per-unit cost differential in archival savings within 12–18 months on larger estates.
- PoE (802.3af, <13W typical): Minimal power draw keeps your switch's budget safe. Critical when retrofitting existing infrastructure where you cannot run dedicated 12VDC drops.
- On-camera object detection and motion analysis: Edge processing reduces upstream bandwidth and VMS load. Fewer false alarms and lower licensing overhead for analytics features.
Deployment Considerations:
- IP66 handles rain and dust but not submersion. If your site includes water features or wet areas, step up to IP67 before committing—retrofitting is painful.
- 5MP works well for license plates and clothing patterns at 10–40 meters. Beyond 50 meters, if facial recognition is critical, you'll want 8MP or higher. Know your standoff distances before design finalization.
- Varifocal lenses introduce slightly more glass than fixed designs—verify mounting stability and wind-load ratings, especially on coastal or high-elevation installations.
- ONVIF compliance ensures multi-vendor VMS support, but confirm your target NMS version supports the FD9380-HTV-V2 analytics profile before final procurement.
Position the FD9380-HTV-V2 for enterprise campuses, municipal facilities, or transportation hubs where you need flexible mid-range coverage from fixed dome mounts and varifocal adjustment reduces both installation cost and spare-parts overhead. It's not the highest-resolution outdoor dome, but it's pragmatic—you get field flexibility, reasonable forensic capability, and storage efficiency without overbuilding for the job.
