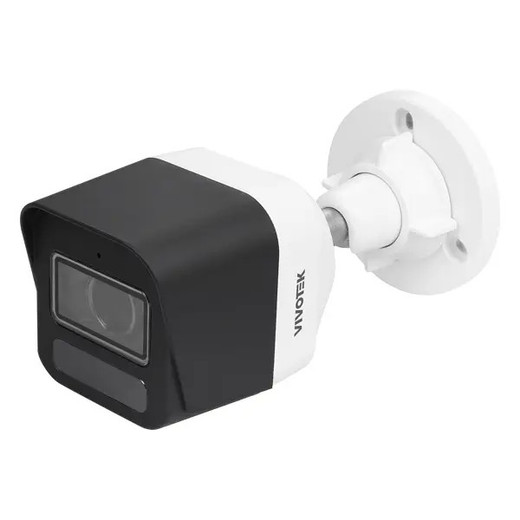

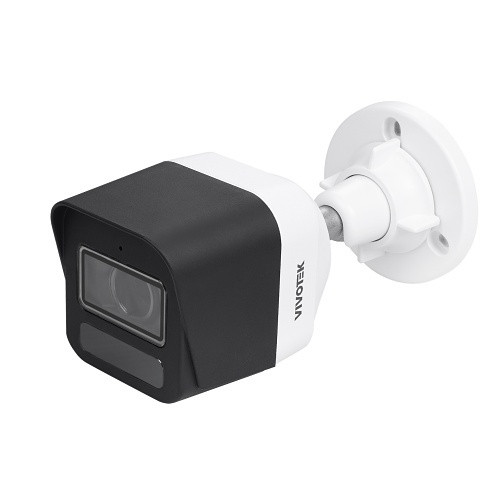

Vivotek IB9380-HTV-V2 5MP Outdoor Motorized Bullet Camera
The Vivotek IB9380-HTV-V2 is a 5MP outdoor bullet camera engineered for perimeter monitoring, facility entrance control, and area surveillance in demanding weather and security environments. The motorized varifocal lens eliminates the operational friction of deploying multiple fixed-lens SKUs across your coverage map. Instead of purchasing separate cameras for tight doorway shots and wider parking area views, one IB9380-HTV-V2 handles both focal ranges—adjust post-deployment without removing the camera or restocking spare inventory. This consolidation cuts procurement overhead, reduces spare parts complexity, and standardizes maintenance across your fleet.
Key Features
- 5MP resolution (2592 × 1944 pixels) — delivers forensic-grade subject identification and readable license plates at typical mounting distances. The pixel density supports both wide-area coverage and detailed zoom-in analysis during incident review without requiring separate higher-megapixel variants for the same scene.
- Motorized varifocal lens — adjusts focal length post-installation through the camera interface or VMS. Eliminates the cost and logistical burden of swapping lens kits or deploying redundant fixed-lens cameras to cover multiple distance/angle combinations.
- H.265 primary codec (H.264 and MJPEG fallback) — H.265 compression cuts storage footprint roughly 40–60% compared to H.264 depending on scene motion and detail complexity. On 24/7 multi-camera recording, this directly lowers NVR storage spend and extends retention windows on fixed capacity. Use H.264 fallback for legacy NVR systems that lack H.265 decode support.
- Integrated AI video analytics — on-camera threat detection, object classification, and event correlation run at the edge, reducing bandwidth consumption and backend VMS processing load. Enables proactive alerting instead of passive forensic review.
- IP66 weatherproofing — direct rain, dust, and spray ingress are prevented by the sealed housing. Not rated for submersion; if full water immersion is required, specify IP67 or higher variants instead. IP66 is sufficient for overhead rain, side spray, and dusty perimeter mounting.
- Bullet form factor — optimized for discrete mounting on building perimeters, fence lines, and access points. Compact profile fits pole mounts and wall brackets without the visual footprint of dome or turret alternatives.
- PoE (802.3af) power delivery — draws under 13W typical, so it integrates into standard 802.3af PoE switch infrastructure without requiring a dedicated power supply or straining switch power budgets. Simplifies cabling runs on large deployments.
Integration and Compatibility
The IB9380-HTV-V2 is ONVIF-compliant and integrates with any ONVIF Profile S/T-compatible VMS. Verify that your network video recorder or management platform supports H.265 decoding; older systems may require transcoding at the NVR, which negates storage savings. Pair with a PoE-powered network switch rated for your total camera power draw—confirm the switch supports 802.3af delivery across your intended number of ports before overcommitting capacity. When planning coverage, refer to your lens and coverage planning guide to validate focal length ranges against your deployment geometry.
When to Choose a Different Model
If your facility topology is rigid—all coverage the same distance and angle—a fixed-lens outdoor camera variant may deliver the same optical performance at lower cost. If you need submersion protection, specify an IP67-rated outdoor IP camera from the Vivotek range instead. If you require higher than 5MP for extreme close-range detail or very-long-distance identification, evaluate the higher-resolution variants in the Vivotek camera line.
Frequently Asked Questions
Q: Does the IB9380-HTV-V2 support two-way audio?
A: The model includes audio input for environmental sound or alarm integration. Verify your specific installation datasheet for audio output capability and microphone support.
Q: What is the maximum infrared illumination range on the IB9380-HTV-V2?
A: IR range depends on ambient light conditions and scene reflectivity. Consult your product datasheet for specific distance specifications under low-light operation.
Q: Can I mount the IB9380-HTV-V2 on a wall or only on a pole?
A: The bullet form factor supports both wall and pole mounting via standard brackets. Confirm bracket compatibility and weatherproofing seal integrity during installation.
Q: Does the IB9380-HTV-V2 work with Milestone XProtect or Axis Camera Station?
A: ONVIF compliance ensures compatibility with Milestone, Axis Camera Station, and other ONVIF Profile S/T platforms. Test integration in your VMS environment before full deployment to confirm codec and analytics pass-through behavior.
Q: What is the minimum illumination level required for the IB9380-HTV-V2 to capture usable video?
A: Minimum illumination varies by compression codec and desired frame rate. Consult the product datasheet for exact lux specifications under color and IR-assisted operation.
Q: Does the IB9380-HTV-V2 support NDAA Section 889 compliance or TAA certification?
A: Verify Vivotek's current certification status directly with the manufacturer or your integrator. Compliance requirements are jurisdiction-specific and subject to change.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The IB9380-HTV-V2 occupies a practical middle ground in the mid-range outdoor camera segment—professional-grade enough for enterprise perimeter schemes, cost-effective enough for multi-site facility deployments. The motorized varifocal lens is the primary operational advantage: if your coverage topology requires both narrow entrance monitoring and broader yard or parking area views, one IB9380-HTV-V2 installation consolidates those needs into a single lens adjustment, eliminating the cost and inventory friction of deploying two separate fixed-lens SKUs.
Technical Highlights:
- H.265 codec efficiency: 40–60% storage reduction versus H.264 on 24/7 multi-camera recording systems—a concrete win when managing weeks or months of footage across dozens of nodes. Falls back to H.264 and MJPEG for VMS platforms lacking H.265 support.
- 5MP resolution at 2592×1944: Sufficient for forensic identification and readable license plates at typical mounting distances without forcing you into higher-megapixel tiers. The pixel density supports both overview and zoom-in analysis without requiring separate high-res variants.
- PoE (802.3af) under 13W: Integrates into standard PoE infrastructure without a dedicated supply or power-budget strain. Reduces cabling runs and switch provisioning complexity on large deployments.
Deployment Considerations:
- H.265 storage gains evaporate if your NVR or VMS lacks H.265 decode support—verify codec compatibility before deploying at scale. Some older platforms will transcode, negating the efficiency gain.
- IP66 is robust against rain and side spray but not submersion; if you're mounting cameras near water features or in flood-prone zones, IP67 is the safer choice.
- Motorized varifocal lenses add mechanical complexity compared to fixed-lens models—confirm your installation team is comfortable with remote lens adjustment via the camera interface or VMS. Focus verification post-deployment is essential.
The IB9380-HTV-V2 fits best in multi-site facility chains (warehouses, retail campuses, industrial parks) where perimeter geometry varies and you want to standardize on a single camera model across different viewing distances. On rigid, single-purpose deployments (e.g., a narrow hallway with fixed subject distance), a fixed-lens variant may deliver the same result at lower cost.
Key Specifications:
Color: White
