Sub categories

Showing Results for Infrastructure

Compare

Add to Cart The item has been added
CyberPower

SKU: PDU33108

CyberPower 200-240V 42 Outlet Hubbell CS8365C - PDU33108
In stock · Ships same business day

$2,500.00 $1,629.99 Save $870.01

Add to Cart
The item has been added
Free shipping over $499

$2,500.00 $1,629.99 Save $870.01

Add to cart Add to quote Compare
Compare

Out of stock
CyberPower

SKU: PDU13104

CyberPower 3 Phase PDU13104. 36-Out Hubbell CS8365
$1,154.00 $952.99 Save $201.01

Add to Cart
The item has been added
Free shipping over $499

$1,154.00 $952.99 Save $201.01

Add to quote Compare
Compare

Add to Cart The item has been added
CyberPower

SKU: PDU30BT8F8R

CyberPower 30A (Derated to 24A), 120 V, 50Hz/60Hz, NEMA L5-30P plug, 16 NEMA 5-20R, 1U Rackmount, 12 ft cord, Limited lifetime warranty
In stock · Ships same business day

$330.00 $239.99 Save $90.01

Add to Cart
The item has been added
Free shipping over $499

$330.00 $239.99 Save $90.01

Add to cart Add to quote Compare
Compare

Add to Cart The item has been added
CyberPower

SKU: RMCARD205

CyberPower A Full-featured Network Management Card, THE Cyberpower RMCARD205 Remotely Manag
In stock · Ships same business day

$439.00 $332.99 Save $106.01

Add to Cart
The item has been added
Free shipping over $499

$439.00 $332.99 Save $106.01

Add to cart Add to quote Compare
Compare

Out of stock
CyberPower

SKU: CRA20001

CyberPower Blanking Panels, Tooless Installation, 10PCS PER Pack, 5-YR WTY
$179.00 $142.99 Save $36.01

Add to Cart
The item has been added
Free shipping over $499

$179.00 $142.99 Save $36.01

Add to quote Compare
Compare

Add to Cart The item has been added
CyberPower

SKU: CP2RAIL02

CyberPower CP2RAIL02 4-Post Rackmount Rail Kit
In stock · Ships same business day

$203.00 $202.99 Save $0.01

Add to Cart
The item has been added
Free shipping over $499

$203.00 $202.99 Save $0.01

Add to cart Add to quote Compare
Compare

Out of stock
CyberPower

SKU: CR42U11001

CyberPower CR42U11001 Rack Enclosure
$6,235.00 $5,607.99 Save $627.01

Add to Cart
The item has been added
Free shipping over $499

$6,235.00 $5,607.99 Save $627.01

Add to quote Compare
Compare

Add to Cart The item has been added
CyberPower

SKU: GC201

CyberPower GC201 Outlet Extender
In stock · Ships same business day

$4.99 $2.99 Save $2.00

Add to Cart
The item has been added
Free shipping over $499

$4.99 $2.99 Save $2.00

Add to cart Add to quote Compare
Compare

Add to Cart The item has been added
CyberPower

SKU: SNEV001

CyberPower SNEV001 Environmental Sensor 4 Input Contact Closures RJ45 Port X 2 10' Cable
In stock · Ships same business day

$175.00 $138.99 Save $36.01

Add to Cart
The item has been added
Free shipping over $499

$175.00 $138.99 Save $36.01

Add to cart Add to quote Compare
Compare

Add to Cart The item has been added
CyberPower

SKU: 4POSTRAIL

CyberPower Universal Rack Mount Rail Kit with Adjustable Length 18.5" - 29". Up to 230 LBS supported for 1U, 2U, and 3U applications.
In stock · Ships same business day

$189.00 $188.99 Save $0.01

Add to Cart
The item has been added
Free shipping over $499

$189.00 $188.99 Save $0.01

Add to cart Add to quote Compare
Compare

Out of stock
Datalogic

SKU: GWU-HS7600

Datalogic GWU-HS7600 Gateway Connect USB Bluetooth Wi-Fi

Multi-protocol gateway cable for Datalogic enterprise devices
- USB, Bluetooth, and Wi-Fi connectivity in one genuine OEM cable
- Designed for industrial environments requiring reliable wired and wireless links
- Authentic Datalogic component eliminating compatibility and connection risks
$215.00 $214.99 Save $0.01

Add to Cart
The item has been added
Free shipping over $499

$215.00 $214.99 Save $0.01

Add to quote Compare
Compare

Out of stock
Datalogic

SKU: 94ACC0163

Datalogic Rhino II Roof Mount Dome Antenna 94ACC0163

Roof mount dome antenna for Datalogic Rhino II mobile computers
- Genuine OEM component designed for Rhino II compatibility and performance
- Dome form factor elevates antenna placement for improved signal reception
- Roof mount configuration positions device for warehouse and retail operations
$532.00 $355.99 Save $176.01

Add to Cart
The item has been added
Free shipping over $499

$532.00 $355.99 Save $176.01

Add to quote Compare
Compare

Out of stock
Dell

SKU: 490-BJMS

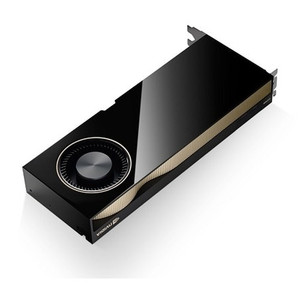

Dell 490-BJMS NVIDIA RTX 6000 ADA Generation 48 GB GDDR6 Full Height PCIE 4.0X16 4 DP
In stock · Ships same business day

$11,249.99 $10,539.99 Save $710.00

Add To Quote
Free shipping over $499

$11,249.99 $10,539.99 Save $710.00

Add to quote Compare
Compare

Out of stock
Dell

SKU: 490-BKFX

Dell 490-BKFX NVIDIA RTX 4500 ADA Generation 24 GB GDDR6 Full Height PCIE 4.0X16 4 DP
In stock · Ships same business day

$3,749.99 $3,479.99 Save $270.00

Add To Quote
Free shipping over $499

$3,749.99 $3,479.99 Save $270.00

Add to quote Compare
Compare

Out of stock
Dell

SKU: 490-BKFY

Dell 490-BKFY NVIDIA RTX A800 40 GB HBM2 Full Height PCIE 4.0X16 Graphics Card
In stock · Ships same business day

$25,774.99 $22,010.99 Save $3,764.00

Add To Quote
Free shipping over $499

$25,774.99 $22,010.99 Save $3,764.00

Add to quote Compare
Compare

Out of stock
Dell

SKU: 490-BKHG

Dell 490-BKHG NVIDIA RTX 4000 ADA Generation 20 GB GDDR6 Full Height PCIE 4.0X16 4 DP
In stock · Ships same business day

$2,249.99 $1,938.99 Save $311.00

Add To Quote
Free shipping over $499

$2,249.99 $1,938.99 Save $311.00

Add to quote Compare

Infrastructure

Infrastructure components provide the network and power backbone that supports reliable surveillance and access control systems. Select switches, PoE devices, power supplies, and transmission hardware designed for commercial environments.

Plan Your Deployment

Total PoE power budget and port density requirements
Switch throughput and uplink capacity planning
Redundancy and failover design considerations
Distance limitations and fiber conversion needs
Power conditioning and voltage compatibility

PoE Planning Guide Get Sizing Help

What to Look For When Buying

The six decisions that matter most before you spec.

PoE Power Budget Math

A 24-port PoE+ switch with 370W total budget can't actually run 24 outdoor cameras at peak 25W each. Simultaneous peak — not nameplate — is the limit. Always verify per-port PoE allocation and total budget against actual camera load. See PoE budget planning and why your PoE switch fails after 18 cameras.

328-Foot Ethernet Limit

Cat5e, Cat6, and Cat6A all top out at 100 meters (328ft) per TIA-568. Past that, you need a media converter to fiber, a PoE extender, or an intermediate switch. Common gotcha: in-wall patch + faceplate + drop + jumper all count against 328ft. Long runs to perimeter cameras frequently exceed the limit — plan for fiber or coax-PoE extension.

Managed vs Unmanaged Switches

Unmanaged switches work for small deployments but provide no VLAN segmentation, no QoS for video traffic, no monitoring, and no remote troubleshooting. Managed switches (Layer 2 or Layer 3) let you isolate cameras on a dedicated VLAN, prioritize video over office traffic, and diagnose link failures from a central SNMP platform. Spec managed for any deployment over 8 cameras.

UPS Sizing & Runtime

NVR + switches + cameras + access control have very different power profiles than office gear. Size UPS for actual wattage of all connected loads + 20% headroom, and calculate runtime with battery-life curves (runtime is non-linear — doubling load often cuts runtime 60%+). Surveillance UPS should provide 15-30 min to accommodate generator transfer or graceful shutdown.

Copper vs Fiber Uplinks

In-rack uplinks on 10G copper (Cat6A) work fine for short runs. Between-building and multi-floor uplinks should be fiber — single-mode for >300m, multimode for under. Fiber is also electrically isolated, which matters in lightning-prone environments. Axis, Hanwha, and Ubiquiti switches include SFP/SFP+ uplinks across most models.

Cooling & Airflow in Racks

Surveillance gear runs 24/7 — a closed rack at 90°F interior temperature will fail drives and switches faster than spec. Specify perforated doors, rack-mount fans, and leave 1U of airflow gap above/below heat-generating equipment. NVRs with internal fans need front-to-back airflow; network switches vary by vendor. Check thermal spec before sealing a wall-mount enclosure.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

802.3af / at / bt PoE Standards

802.3af = 15.4W/port (entry cameras), 802.3at PoE+ = 25.5W/port (most outdoor cameras), 802.3bt PoE++ Type 3 = 60W, Type 4 = 90W (PTZ, heated, multi-sensor). Specify switch support for the highest standard your cameras need — future-proofing with PoE++ switches costs marginally more.

TIA-568 Cabling Standards

Cat5e rated to 1 Gbps at 100m. Cat6 rated to 10 Gbps at 55m, 1 Gbps at 100m. Cat6A rated to 10 Gbps at 100m with proper grounding. Use Cat6A for new surveillance cabling runs — marginal cost premium over Cat6, meaningful margin for long runs + high PoE.

SFP / SFP+ / QSFP+ Modules

Small Form-factor Pluggable optics for fiber uplinks. SFP = 1 Gbps, SFP+ = 10 Gbps, QSFP+ = 40 Gbps. Match module to switch vendor compatibility (some vendors lock to their own brand of optics). Multimode fiber with OM3/OM4 for ≤300m, single-mode for longer or future-proof runs.

VLAN Segmentation

Dedicated VLAN for surveillance isolates camera traffic from office network — improves security (camera-to-camera lateral movement blocked), performance (no contention with office traffic), and troubleshooting. Configure access-control and intercom VLANs separately. Managed switches required; unmanaged switches cannot segment.

Long-Reach PoE Extension

Ethernet-over-Coax (EoC) extends Ethernet + PoE to 1,500+ feet over existing RG59 coax — ideal for analog-to-IP retrofits. Ethernet-over-UTP extenders push runs to 4,000ft over CAT cable. NVT Phybridge CHARIoT, Altronix eBridge, and Veracity Highwire are the common product families. Rate-limited to 100 Mbps typically.

UPS Topology: Line-Interactive vs Double-Conversion

Line-interactive UPS switch to battery on power failure — sufficient for office gear. Double-conversion (online) UPS convert AC→DC→AC continuously, providing perfectly conditioned power — required for sensitive SCADA/security gear in dirty-power environments. Specify double-conversion for NVRs at critical sites.

Typical Deployment Scenarios

8-Camera Single-Site Retrofit

Existing network + 8 outdoor IP cameras. Add a 16-port managed PoE+ switch (Ubiquiti UniFi, Axis T85) on a dedicated VLAN. 1U rack UPS for the NVR + switch. 120-160 watts total PoE budget comfortably runs 8 outdoor cameras with heater + IR.

48-Camera Campus Upgrade

Four buildings, 48 cameras total, existing fiber backbone. Per-building 24-port PoE++ switch with SFP+ fiber uplink to core. Dedicated surveillance VLAN, QoS for video traffic, SNMP monitoring. 2-post relay rack in each IDF closet with dedicated surveillance UPS.

Perimeter Fence Line (1,200ft)

6 bullet cameras + 2 PTZs along perimeter fence, main NVR in building. Fiber media converter + outdoor-rated fiber to a PoE++ switch in a weatherproof enclosure at the fence line. Alternative: NVT Phybridge CHARIoT over existing coax for retrofit applications.

Multi-Floor Office Tower

Stacked IDFs on every floor, cameras + access control + intercom on dedicated VLANs. Cisco Catalyst or Ubiquiti UniFi Pro managed switches per floor with 10G fiber uplink to building core. Per-IDF 3U UPS. Integration with VMS and access control head-end at main BDF.

Frequently Asked Questions

How do I calculate PoE budget for a camera deployment?

Sum the peak wattage of every camera (not nameplate — check spec sheet for "PoE class" or "max consumption"). Add 15-20% headroom for inrush during cold-start. The result is your required simultaneous-peak PoE budget. A 24-port PoE+ switch advertised at 370W can only run about 18 outdoor cameras with heaters + IR — see PoE budget planning.

What's the maximum Ethernet cable run for an IP camera?

100 meters (328 feet) per TIA-568 — total distance from switch port to camera port. That includes in-rack patch cords, in-wall cabling, faceplate jack, and camera jumper. For longer runs, use fiber with a media converter or a long-reach PoE extender. Going past 328ft on copper causes intermittent packet loss that looks like camera problems.

Do I need managed or unmanaged PoE switches?

For more than 8 cameras or any mixed-use network (cameras sharing infrastructure with office traffic), specify managed. VLAN segmentation isolates camera traffic for security and performance; QoS ensures video gets bandwidth priority; SNMP monitoring surfaces failures before users call. Unmanaged switches are acceptable only for small standalone deployments.

What UPS runtime should I plan for an NVR + switch?

15-30 minutes of runtime at actual load is typical — enough to ride through brief outages or allow graceful shutdown before battery exhaustion. For sites with generator transfer, 5-10 minutes is sufficient. Size UPS wattage for actual connected load + 20%, and use the vendor's runtime-at-load curve (runtime is non-linear). Double-conversion UPS for sensitive or dirty-power sites.

How far can I extend PoE past 328 feet?

Ethernet-over-Coax extenders (NVT Phybridge CHARIoT, Altronix eBridge) push Ethernet + PoE to 1,500+ feet over existing RG59/RG6 coax — ideal for analog-to-IP retrofits. UTP-based extenders reach 2,000-4,000 feet on Cat cable at reduced bandwidth (typically 100 Mbps). For new runs over 328ft, fiber + PoE switch at the camera end is usually cleaner architecture.

Should I put cameras on a separate VLAN?

Yes — always. A dedicated camera VLAN isolates camera traffic from office network for security (blocks camera-to-camera lateral movement if one is compromised), performance (cameras don't contend with office bandwidth), and troubleshooting (camera traffic is cleanly separated for packet capture). Requires managed switches; takes 10 minutes to configure on Ubiquiti UniFi, Cisco Catalyst, or any enterprise switch.
