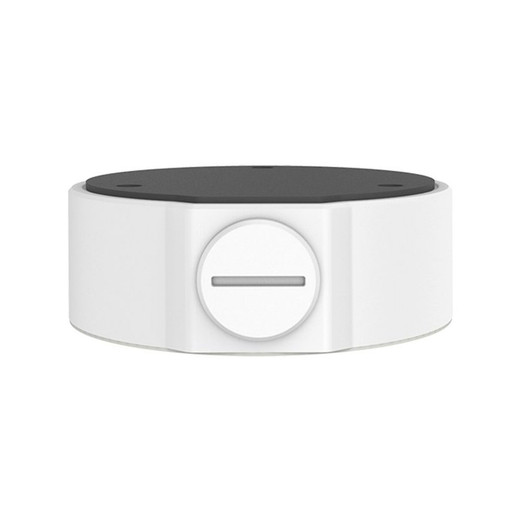

i-PRO M-JB-MINI Round Junction Box
The M-JB-MINI is a compact round junction box designed to consolidate cable terminations and connector management at the point where i-PRO IP cameras mount to ceiling or wall surfaces. Unlike generic utility boxes, this enclosure is engineered specifically for dome camera form factors, providing a stable flat-top platform that nests cleanly beneath camera housings while protecting RJ45 connectors and service loops from water, dust, and physical damage.
Key Features
- Round form factor with flat mounting surface: The flat top provides a level platform for camera installation and clears cable routing without forcing sharp bends that would violate CAT5e/CAT6 bend-radius specs. Sharp bends compress twisted pairs and increase signal reflections—a real factor on multi-camera backbone runs where attenuation compounds across dozens of junction points.
- IP66 weather rating for indoor and outdoor use: Water and dust won't infiltrate the enclosure, meaning you deploy one SKU across rooftop, parking structure, and interior installations without worrying about condensation pooling around exposed connectors. This eliminates the cost and inventory burden of separate indoor and outdoor models on mixed-environment jobs.
- Weatherproof cable glands with multiple knockouts: Glands seal around incoming conduit to prevent wind-driven rain from wicking along cable jackets into the box. Multiple knockout positions let you route conduit from any direction without custom drilling that would compromise the IP66 seal.
- Ample internal volume for RJ45 density and service loops: The enclosure accommodates standard CAT5e and CAT6 connector terminations plus 6–12 inches of slack without forcing tight coils that exceed bend-radius limits. Proper service loops reduce transmission errors and extend cable lifespan—measurable on 24/7 surveillance systems where a single bad connection across 20 cameras can trigger false alerts or data loss.
- UV-stabilized polymer construction: Outdoor polymer housings become brittle in direct sunlight within 3–5 years without proper UV additives. This material resists embrittlement and maintains structural integrity through decades of sun and temperature cycling typical of rooftop and parking structure deployments.
- Dual mounting orientation—ceiling and wall: Accepts hardware for both pendant and wall-mounted applications, avoiding the need for custom brackets or adapters on jobs where cameras are installed at different angles.
- Lightweight at 0.44 lbs: Minimal load on ceiling anchors and simplifies one-handed installation at height, particularly valuable when working alone on overhead installations where two people are not available.
Integration and Compatibility
The M-JB-MINI accepts standard CAT5e and CAT6 cabling terminated with RJ45 connectors. It is compatible with any network video recorder or managed network switch that supplies 802.3af or higher PoE (Power over Ethernet). No proprietary cabling, adapters, or firmware configuration required—this is passive infrastructure that simply keeps connectors clean and organized.
Typical Deployment Scenarios
The M-JB-MINI is deployed in commercial facilities, retail chains, parking structures, and outdoor loading docks where code-compliant cable management and weatherproof termination are mandatory. It excels on multi-camera jobs where standardizing the junction box model ensures consistent installation quality and faster troubleshooting when a technician needs to inspect a suspect network connection. By consolidating cables at the mount point rather than burying them in ceiling voids, you make future maintenance and upgrades more straightforward.
Frequently Asked Questions
Q: Can I use the M-JB-MINI outdoors, or is it rated for interior installation only?
A: The M-JB-MINI carries an IP66 rating, which means it is rated for both indoor and outdoor mounting without modification. Water jets and dust will not compromise the enclosure. Skip this model only if you require full submersion (IP67) or if cables need to pass through the box while the glands remain open during installation.
Q: What cable types does the M-JB-MINI support?
A: The box is designed for standard CAT5e and CAT6 Ethernet cabling with RJ45 connectors. If you are running shielded CAT6A or specialty cables, verify that the cable jacket outer diameter fits within the weatherproof gland bore—consult the installation guide or contact the manufacturer if your cable diameter is non-standard.
Q: Does the M-JB-MINI come with mounting hardware?
A: The box supports both ceiling and wall mounting orientations, but hardware (anchors, brackets) is not included in the package. You will need to source appropriate fasteners based on your mounting surface material (drywall, concrete, steel) and local building code requirements.
Q: Can I use the M-JB-MINI for non-i-PRO cameras?
A: The round form factor and flat-top geometry are optimized for i-PRO dome camera housings. While the box functions as a passive junction enclosure for any CAT5e/CAT6 cabling, fitment beneath non-i-PRO domes may vary. Test fitment or consult the camera and junction box documentation before committing to a large deployment.
Q: Is there a limit to the number of cables I can run through the M-JB-MINI?
A: The internal volume is designed for typical single-camera service loops plus one or two backbone cables. If you need to consolidate four or more cables in one location, consider a larger junction box or a surface-mounted patch panel instead.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The M-JB-MINI solves a real problem on professional installations: unmanaged cable terminations at the camera mount point. I've seen too many multi-camera deployments where integrators leave RJ45 connectors exposed to condensation and dust, then spend weeks troubleshooting intermittent connectivity that stems from connector corrosion, not software. The IP66 rating and weatherproof glands on the M-JB-MINI eliminate that category of failure entirely.
Technical Highlights:
- IP66 weatherproof construction: Water jets and dust ingress are blocked, critical on rooftop and outdoor wall installations where wind-driven rain or overnight condensation would otherwise pool around bare RJ45 contacts and corrode them within months.
- UV-stabilized polymer: Outdoor polymer housings without UV additives become brittle and crack in 3–5 years. This material maintains structural integrity and gasket compression across full temperature swings typical of uncontrolled outdoor environments.
- Flat-top geometry with internal cable volume: The design prevents sharp bends that violate CAT5e/CAT6 bend-radius specs and increase attenuation. Proper service loops also make future connector inspection or replacement faster—you're not fighting a birds nest of coiled cable.
Deployment Considerations:
- Fitment is optimized for i-PRO dome form factors; test clearance with non-i-PRO cameras before committing to volume orders.
- The box is passive—it does not amplify or condition signals. If you have existing signal quality issues, the M-JB-MINI improves cable management but will not fix a weak PoE supply or a misconfigured network.
The M-JB-MINI is a necessity on any outdoor or mixed-environment multi-camera job where code compliance and long-term connector reliability matter. It's not glamorous infrastructure, but it's the kind of detail that separates professional deployments from ones that fail during the first winter maintenance visit.
