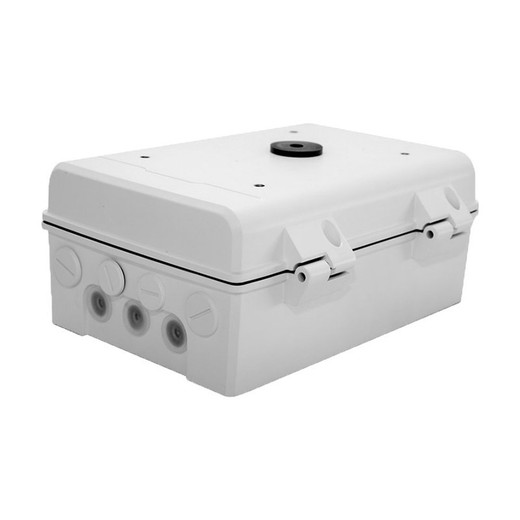

i-PRO M-PTZ-JB PTZ Junction Box
The i-PRO M-PTZ-JB is a professional aluminum junction box engineered to consolidate cable routing and connector management at PTZ camera installation points. If you're deploying multiple PTZ cameras across a commercial or campus site, junction box discipline directly impacts troubleshooting speed and long-term system maintainability—loose cable bundles at connection points create both safety hazards and a maintenance nightmare. The M-PTZ-JB (often searched as M PTZ JB) solves this by centralizing cable entry and exit in a compact, durable enclosure that fits into tight spaces without requiring custom mounting or rework.
Key Features
- 12-inch aluminum alloy construction: Resists corrosion in both indoor and outdoor environments—matters when your junction box sits on a rooftop or in a damp mechanical room for five years without service. Aluminum won't rust or degrade under UV exposure or salt spray, reducing replacement frequency in harsh climates.
- Compact footprint (296mm × 244mm × 127mm / 11.7" × 9.6" × 5"): Fits into tight installation spaces—between ceiling tiles, within equipment racks, on conduit runs, or wall-mounted near camera heads—without requiring custom fabrication or structural modifications. Tight spaces mean faster installation and lower labor costs per deployment.
- Lightweight at 5.51 lbs: Minimizes structural load on ceiling mounts, wall brackets, or pole-mounted PTZ camera heads. Critical when you're already carrying the weight of a motorized dome and pan-tilt mechanism. Every pound saved reduces bracket stress and extends hardware life in vibration-prone environments like warehouses or industrial facilities.
- Indoor and outdoor rated: Single SKU covers warehouse floors, parking structures, and exterior building facades—no separate variants to stock or manage. Reduces inventory complexity across multi-site deployments and simplifies spare-parts planning for integrators managing dozens of locations.
- Designed for i-PRO M-200-P and PTZ dome camera series: Purpose-built connector layout and cable routing paths match i-PRO motorized PTZ cameras, eliminating guesswork during installation. Standardized form factor simplifies system design and cuts commissioning time when rolling out identical configurations across retail chains or logistics networks.
- Organized cable entry and exit points: Consolidates power, control (RS-485/serial), and network (Cat5e/Cat6) connections in one location. Prevents scattered wire bundles that cause accidental disconnections during maintenance, reduce troubleshooting speed, and create fire-code violations in regulated environments.
Integration and Compatibility
The M-PTZ-JB accepts standard PTZ camera power, control, and data cables, consolidating entry points and eliminating the scattered wire management that often leads to downtime. Works with i-PRO IP cameras in PTZ-enabled installations. For large-scale deployments, pair this with a network video recorder running ONVIF-compliant PTZ control and a managed network switch to enforce proper cable routing from the junction box back to your core infrastructure. Wire labeling and organized routing directly reduce troubleshooting time when field technicians need to diagnose a failed camera or swap a control module.
Deployment Context
Deploy the M-PTZ-JB at each PTZ camera location in multi-camera commercial surveillance systems, campus security networks, retail environments requiring organized cable management, and infrastructure monitoring installations. Essential in warehouses or logistics hubs where vibration from equipment or vehicle movement can loosen cabling—a properly mounted junction box with organized internal routing prevents intermittent connection loss and reduces downtime. Also valuable in environments subject to regular maintenance or reconfiguration, where organized cable labeling and routing directly reduces troubleshooting time and technician callbacks.
Frequently Asked Questions
Q: Can I wall-mount or ceiling-mount the M-PTZ-JB?
A: Yes. The compact aluminum housing supports multiple mounting orientations. Wall mounting is typical in equipment rooms; ceiling mounting works in installations where the PTZ camera sits on a ceiling-mounted bracket and the junction box needs to be nearby for cable consolidation. Use standard L-brackets or DIN rail mounts compatible with the housing footprint.
Q: What cable types does the M-PTZ-JB accommodate?
A: Designed for standard PTZ power (24VDC or PoE passthrough), control (RS-485, serial), and network (Cat5e/Cat6) cables used in i-PRO PTZ camera installations. Cable entry points are sized to accept typical connectors and conduit fittings without modification.
Q: Is the M-PTZ-JB rated for outdoor installation?
A: Yes. The aluminum construction and indoor/outdoor rating mean it handles rain, dust, and temperature extremes. However, for direct-spray or submerged applications, consult mounting guidelines—the rating assumes protected mounting (e.g., under eaves or covered structures), not full immersion.
Q: Will the M-PTZ-JB work with non-i-PRO PTZ cameras?
A: The junction box is optimized for i-PRO M-200-P and i-PRO PTZ dome series based on connector layout and cable routing. Use with other brands at your discretion, but connector compatibility and cable organization may require adaptation.
Q: How many PTZ camera connections can the M-PTZ-JB handle?
A: The junction box consolidates a single PTZ camera's power, control, and network connections. For multi-camera installations, deploy one junction box per camera location.
Q: What's the mounting hardware included?
A: Refer to the manufacturer's installation guide for mounting hardware options. Standard L-brackets and wall anchors are compatible with the aluminum housing; specific fasteners depend on your mounting surface (drywall, metal, conduit).
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The M-PTZ-JB is a straightforward cable-management tool that pays for itself in reduced troubleshooting time on any mid-scale or larger PTZ deployment. At 5.51 lbs and 296 × 244 × 127 mm, it's compact enough to fit in real-world mechanical spaces without demanding custom brackets or rework—a detail that matters when you're shipping 20 units to 20 different retail locations and can't afford site-specific customization.
Technical Highlights:
- 12-inch aluminum alloy body: Corrosion resistance matters for long-term outdoor rooftop and facade installations. Aluminum won't rust under salt spray or UV—critical for coastal or desert climates where replacement cycles can stretch beyond five years if you choose the right enclosure material.
- 5.51 lbs weight: Low structural load on ceiling mounts and pole-mount brackets reduces stress on aging building infrastructure and extends hardware life in vibration-heavy environments like warehouse dock areas or equipment rooms adjacent to HVAC systems.
- Indoor and outdoor rated, single SKU: Eliminates SKU proliferation across your spares inventory. One part covers parking garages, rooftop arrays, and indoor corridor installations—simplifies purchasing, training, and field logistics.
Deployment Considerations:
- The junction box consolidates but doesn't terminate connections—you still need proper conduit, cable labeling, and organized routing practices to prevent intermittent faults. It's a good tool, not a substitute for discipline.
- For multi-camera sites, plan one junction box per PTZ camera location. If you're managing 30 PTZ cameras, budget 30 units, not a single shared box.
- Outdoor mounting assumes protected placement (under eaves, in equipment enclosures). Direct rain spray or submerged conditions may require additional weatherproofing on connectors, even with the rated housing.
The M-PTZ-JB is essential for any integrator standardizing on i-PRO PTZ across multi-location retail, warehouse, or campus deployments. It cuts field-labor time, reduces callback rates for loose connections, and keeps your spare parts inventory lean. Deploy one per camera—no shortcuts.
