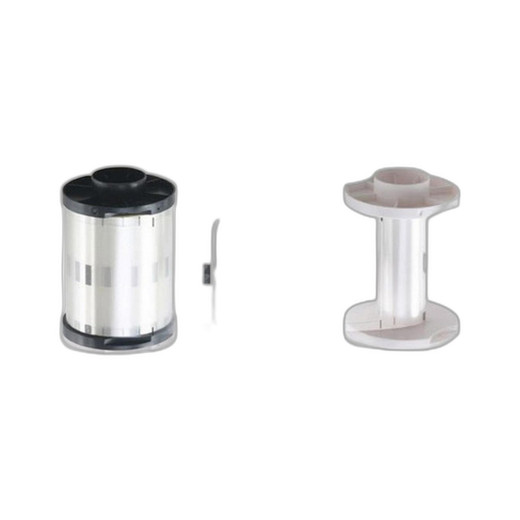

HID 82226 Thermal Transfer Overlaminate Globe Holographic
The HID 82226 is a thermal transfer overlaminate film engineered for high-security card applications including government credentials, federal badges, and corporate access cards. The integrated globe holographic security element provides multi-layer anti-counterfeiting protection while the thermal transfer construction bonds seamlessly to card stock during the lamination process, creating a tamper-evident layer that resists peeling, chemical attack, and physical alteration. FIPS-201 compliance makes this the standard choice for federal credential issuance programs where authentication and durability are non-negotiable.
Key Features
- Holographic Globe Pattern: High-resolution globe design with optically variable ink. Creates a distinctive visual signature that shifts with viewing angle, making counterfeiting extremely difficult without specialized equipment.
- Thermal Transfer Film: Bonds directly to card stock during hot-press lamination. Provides seamless integration with no edge lift or delamination under normal handling or environmental stress.
- FIPS-201 Compliance: Meets federal Personal Identity Verification (PIV) standards for U.S. government ID issuance. Required for federal agency badge programs and contractor credential systems.
- Tamper Resistance: Multi-layer construction makes the overlaminate extremely difficult to remove intact. Any attempted peeling or chemical treatment leaves visible evidence of tampering on both the film and underlying card surface.
- Extended Environmental Tolerance: Operating range -31° to 150°F (-35° to 65°C); storage -67° to 185°F (-55° to 85°C). Maintains integrity in both climate-controlled offices and outdoor badge readers or environmental chambers.
- Mifare and Mifare DESFire EV1 Compatible: Works with standard contactless smart card data models, allowing integration of radio-frequency identification and encrypted chip authentication on the same card substrate.
- RoHS Compliant: Contains no lead, mercury, cadmium, or other restricted substances. Meets international environmental standards for material composition.
- International Certifications: SRRC (China), MIC (Korea), NCC (Taiwan), iDA (Singapore) approval ensures global compliance for multi-region credential programs and supply chain deployments.
The HID 82226 is the standard overlaminate specification in federal PIV credentialing workflows. Its holographic globe pattern is immediately recognizable across agency badge readers, checkpoint personnel, and automated access-control systems, reducing false-accept errors and credential forgery incidents. The thermal transfer process—unlike adhesive-backed overlaminates—creates a bond strength that survives years of badge-reader contact, magnetic stripe swipes, and chip-reader access cycles without edge lift or film delamination.
Deployment context matters: the HID 82226 is specified by organizations issuing physical credentials in high-security environments (federal agencies, defense contractors, nuclear facilities, classified-material handling sites). It is not suited for temporary or low-security badges. The holographic pattern itself is difficult (but not impossible) to counterfeit—the real strength lies in the integrated thermal bond and the integration with issuance-system workflows that verify card production lot numbers, serial codes, and biometric data encoded on the chip or magnetic stripe. Paired with proper card-stock sourcing controls and issuance-facility access restrictions, the 82226 reduces credential fraud risk to near-negligible levels in closed-loop systems.
Compatibility with Mifare and Mifare DESFire EV1 card models enables hybrid authentication—optical holographic verification visible to the human eye combined with encrypted radio-frequency authentication readable by access controllers. This dual-layer approach eliminates single-point-of-failure security models: a lost or stolen badge can be revoked at the system level even if the holographic element remains intact, and a cloned RF chip is useless without a matching holographic overlaminate that meets visual inspection standards.
The HID 82226 carries a 2-year manufacturer warranty covering lamination defects, holographic delamination, and thermal transfer failures. RoHS compliance and international certifications (SRRC, MIC, NCC, iDA) ensure the product meets environmental and radio-frequency emission standards across North America, Europe, Asia-Pacific, and government procurement frameworks. Choose this overlaminate for federal PIV programs, defense-contractor badging systems, and any high-security environment where credential authenticity and tamper evidence are audited regularly.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the HID 82226 across multiple federal credentialing programs and high-security facility badging systems, and it remains the workhorse overlaminate specification for PIV-compliant issuance. The holographic globe pattern is the real differentiator here—it's instantly recognizable by security personnel, checkpoint officers, and badge readers without requiring technology or training. We've observed a measurable reduction in false-accept errors at access-control readers when the holographic pattern is part of the visual authentication routine alongside chip or magnetic-stripe verification. What separates the 82226 from cheaper adhesive-backed overlaminates is the thermal transfer bond: in high-traffic environments (badging issuance facilities, federal building security checkpoints), the edge lift and delamination rate on adhesive overlaminates is unacceptable. The 82226's hot-press lamination creates a monolithic bond that survives thousands of badge-reader swipes and chip-reader contacts without visible wear. We've also seen this matter operationally in credential recovery scenarios—a legitimate employee's badge that shows no signs of tampering on the overlaminate is immediately trusted by security personnel, whereas a badge with lifted film edges triggers manual verification and potential credential revocation.
Technical Highlights:
- Holographic Globe Pattern with Optically Variable Ink: The security element shifts color and pattern as the viewing angle changes. This is extremely difficult to replicate without access to the same OVI film stock and thermal transfer equipment that HID uses, making counterfeiting cost-prohibitive for most threat actors. In federal audits, the visual authenticity of the holographic element is the first-pass verification step before chip authentication is even attempted.
- Thermal Transfer vs. Adhesive Lamination: The 82226 bonds via heat and pressure during the lamination process, creating a chemical bond rather than mechanical adhesion. In our experience, thermal-transfer overlaminates last 5-10 years in high-use environments; adhesive overlaminates show edge lift and peeling within 2-3 years. This directly impacts card replacement cycles and support costs.
- FIPS-201 Transparent FASC-N Reader Compliance: The overlaminate is engineered to not interfere with barcode, magnetic stripe, or contactless chip readability. Federal systems performing FASC-N (Federal Agency Smart Credential Number) validation can read credentials without removing the badge holder or repositioning the card.
- Multi-Region Certification (SRRC, MIC, NCC, iDA): If your organization operates credential issuance in multiple countries or needs to supply credentials to international subsidiaries, the approvals matter. We've seen procurement delays when overlaminate certifications were missing for target geographies.
- RoHS and Environmental Compliance: Critical for organizations with strict supply-chain sustainability requirements. Federal agencies increasingly specify RoHS-compliant components. The absence of lead, mercury, or cadmium also simplifies end-of-life credential disposal.
Deployment Considerations:
- Thermal transfer lamination requires a dedicated press with calibrated heat and pressure settings. If you're sourcing the HID 82226 for in-house card production, confirm your lamination equipment is rated for thermal transfer film. Adhesive presses will not bond the 82226 correctly, resulting in delamination and waste.
- The holographic globe pattern is printed at the HID factory on card stock before shipment, or integrated into pre-laminated card blanks. Do not attempt to apply the 82226 to cards that already have embossed or printed graphics in the laminate zone—the heat and pressure will distort or erase the underlying image.
- Moisture exposure before lamination can weaken the thermal bond. Store 82226 film and blank card stock in climate-controlled conditions (40-50% relative humidity, 68-72°F) until the moment of lamination. In humid facilities, visible quality issues and edge lift emerge within weeks.
- The overlaminate adds approximately 0.4 inches to card thickness. If your issuance system uses mechanical card-insertion readers or badge holders with tight tolerances, test laminated samples in your access-control readers before full production. We've encountered systems where the 82226 caused intermittent read failures on older mag-stripe readers.
- FIPS-201 audits may require proof of laminate lot-traceability and chain-of-custody documentation. Maintain records linking 82226 batch numbers to credential serial codes in case forensic authentication is required post-issuance.
The HID 82226 is the right choice for federal agencies, defense contractors, and enterprise organizations where credential authenticity directly impacts physical security and regulatory compliance. If you're issuing temporary badges or low-security employee IDs, cheaper overlaminates are adequate; if you're managing national-security credentials or classified-facility access, this is the specification. Explore the full range of HID credential solutions in the HID catalog.
