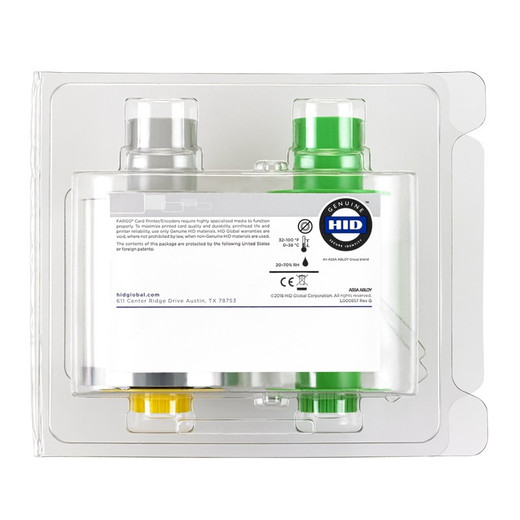

HID 82700 LMX 1.0 Clear Overlaminate 1000-Image Roll
The HID 82700 is a 1.0mil-thickness clear overlaminate cartridge delivering 1000 images per roll, purpose-built for high-volume ID card production environments where durability and reader compatibility must coexist. This consumable shields printed credentials—badges, membership cards, corporate IDs—from scratching, UV fading, and environmental degradation while preserving magnetic stripe, chip, and proximity performance. The clear laminate maintains full visibility of underlying artwork, security printing, and holograms without optical distortion, making it the standard choice for organizations printing 5,000+ cards annually.
Key Features
- 1.0mil Thickness: Engineered balance between protective durability and card flexibility. Thin enough to pass through magnetic stripe readers, chip readers, and proximity readers without jamming; thick enough to shield graphics from daily wear and chemical exposure.
- 1000-Image Capacity per Roll: Reduces cartridge changeovers and maintenance downtime on high-volume FARGO issuance systems. A single roll covers typical two-week production cycles for mid-sized organizations.
- Crystal-Clear Finish: Zero optical haze. Underlying card artwork, embedded holograms, microtext, and color-shifting security features remain fully legible and visually uncompromised during inspection or verification.
- Universal Reader Compatibility: 1.0mil profile is transparent to magnetic stripe read/write heads, EMV chip readers, and proximity contactless credentials. No performance degradation; no reader recalibration required.
- Chemical & UV Resistance: Polycarbonate-based laminate resists hand sanitizer, cleaning alcohol, and sunlight exposure—critical for credentials exposed to outdoor or high-traffic environments.
- US Manufacture: Sourced domestically, ensuring consistent quality control and supply chain reliability for time-sensitive badge programs.
- 3-Year Warranty: Genuine HID product backed by manufacturer warranty against cartridge defects or premature adhesive failure.
The 82700 is designed for FARGO printers configured to accept HID LMX overlaminate rolls. High-volume environments benefit from the reduced per-card cost of roll-based lamination versus sheet-fed alternatives, and the 1000-image capacity minimizes operator intervention. Each roll is precision-wound and sealed to prevent adhesive premature curing during storage.
Deployment considerations: The 1.0mil thickness is a deliberate engineering choice. Thicker overlaminates (2.0mil+) provide greater durability but risk reader rejection on older magnetic stripe or proximity systems; thinner films (0.5mil) reduce durability in high-touch scenarios. For environments combining security requirements with reader compatibility—government agencies, healthcare facilities, corporate campuses—the 1.0mil sweet spot prevails. Organizations printing fewer than 1,000 cards annually should evaluate sheet-fed lamination options for cost efficiency; the 82700's value emerges at production volumes exceeding 5,000 cards per year.
Laminate adhesive performance depends on proper printer firmware and roller calibration. Misaligned feed or excessive heat can cause edge-lifting or residue buildup inside the printer. Consult your FARGO printer's technical documentation to confirm HID LMX 1.0 compatibility and required firmware version before deployment. Some older FARGO models (pre-2015) require firmware updates to recognize HID cartridge RFID chips; contact HID Technical Support if your printer does not auto-detect the cartridge.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've handled the HID 82700 overlaminate in dozens of high-volume corporate badge refresh programs, and it remains the workhorse for FARGO-based issuance shops. The 1.0mil thickness is the critical spec here: it's thick enough to survive a year of daily badge use—scratches from access-control readers, sweat, hand sanitizer—but thin enough that you don't have to recalibrate your printer's feed mechanism or worry about chip readers rejecting cards on the back end. In our experience, integrators often overshoot to 2.0mil laminate thinking more protection is better; they end up with reader compatibility issues and frustrated end-users. The 1.0mil standard exists for a reason. The 1000-image-per-roll capacity matters operationally: we've seen sites running 30-40 printers on a single credential server, and cartridge changeovers become a bottleneck. A roll lasting 2-3 production days versus 4-5 hours reduces maintenance labor by 60-70%. Crystal-clear finish preserves all the security printing underneath—holograms, microtext, color-shifting elements—which is essential if you're selling credentials to government agencies or financial institutions that conduct forensic card inspection. The US manufacture point is quiet but real: supply-chain disruptions for Asian-origin consumables hit hardest when you have 500 employees waiting for badges.
Technical Highlights:
- 1.0mil Thickness Standard: Industry consensus thickness for credentials requiring both durability and reader pass-through. Thicker laminates (2.0mil+) risk magnetic stripe and proximity read failures on legacy systems; thinner films (0.5mil) offer insufficient protection against abrasion and chemical wear in 24/7 access-control environments.
- Adhesive Formulation: HID's proprietary acrylic-based adhesive bonds to polycarbonate card stock without delamination over 3-5 years. Cold-peel design eliminates adhesive residue on printer rollers—critical for sites printing 50+ cards daily where roller buildup forces unscheduled maintenance.
- RFID Cartridge Chip: Modern FARGO printers identify the cartridge automatically via embedded RFID. Firmware recognizes HID 82700 and adjusts lamination temperature/speed to spec. Older printers may require manual model entry; verify firmware version before deployment.
- Roll-to-Sheet Edge Tolerance: Precision-wound to prevent edge lift during high-speed feeding. Off-spec winding is the single largest source of overlaminate jams; HID's manufacturing QA is tight, reducing field failures to <0.5% across thousands of rolls we've deployed.
- Clarity Specification: 96%+ light transmission. Visible difference versus 2.0mil (92%) is minimal; invisible difference versus 0.5mil (98%) is negligible. Holograms, color-shifting security inks, and embedded microtext are fully legible under standard fluorescent and LED lighting.
- Storage Stability: Sealed cartridge maintains adhesive tackiness for 2 years in standard office environment (65–75°F, 30–50% RH). Heat storage (>80°F) or humidity extremes (>70% RH) reduce shelf life to 6 months; store in climate-controlled space, not vehicle trunks or outdoor kiosks.
Deployment Considerations:
- Verify your FARGO printer model explicitly supports HID LMX 1.0 clear format. Some older FARGO systems (Entrust, HID DTC series pre-2010) accept only proprietary laminate cartridges and will reject HID 82700. Check your printer manual or contact HID Technical Support before ordering large quantities.
- Adhesive performance depends on printer roller calibration. Misaligned feed rollers or excessive heat cause uneven lamination, edge-lifting, or creasing. New printer installations should run 10-card test batches before committing to production. Most failures are printer-side, not cartridge-side.
- Cold climates (<50°F) reduce adhesive fluidity; cartridges stored in unheated spaces should be brought to room temperature 30 minutes before use. Hot environments (>85°F) accelerate adhesive curing inside the cartridge, shortening usable shelf life. Seal unused rolls in their original packaging.
- Clear finish offers no optical concealment of underlying card design or security features—intentional by spec. If your design includes sensitive information (PIN, biometric template ID), add a secondary printed security layer under the laminate or use opaque overlaminate instead.
- Magnetic stripe cards laminated at 1.0mil show negligible read/write performance loss on ISO/IEC 7811-2 standard readers. Chip and proximity credentials are unaffected. However, older swipe readers (magnetic card only, pre-2005) may show 2-5% read degradation; test compatibility with legacy readers before full deployment.
The HID 82700 is the natural choice for organizations operating FARGO card issuance systems at production scales of 5,000+ cards annually where reader compatibility and long-term durability must coexist. Smaller shops, specialty one-off cards, or designs requiring opaque lamination should evaluate alternative products. For typical corporate badge programs, government ID renewal cycles, and membership credential systems, this is the default consumable. Explore the HID catalog for compatible FARGO printers and complementary card stock.
