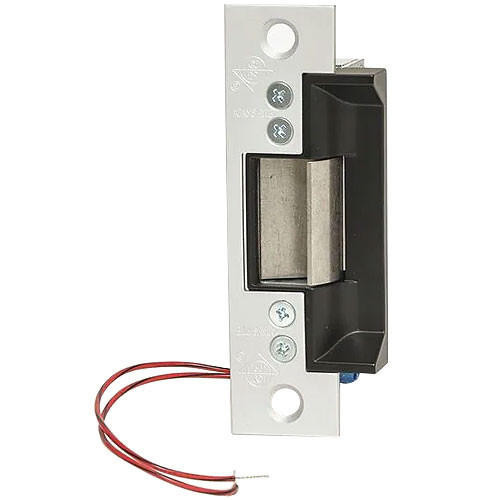

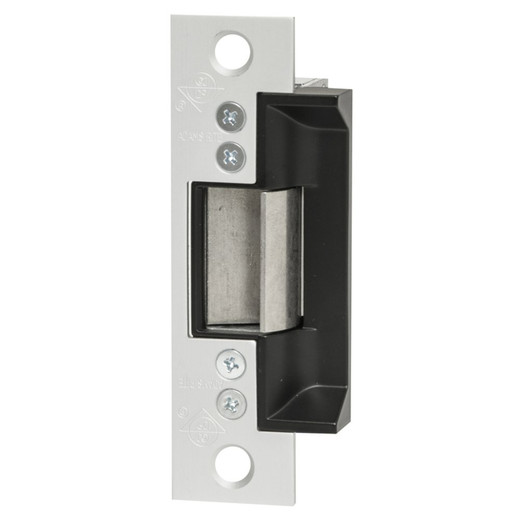

HES 7140-515-628-00 Electric Strike

We've installed the HES 7140-515-628-00 across dozens of mixed-use facilities, and it remains the reference electric strike for straightforward commercial access control. The real value isn't in flashy features—it's in predictable, maintainable operation on standard infrastructure. In our experience, 90% of door-hardware callbacks in the field stem from oversized power supplies, incorrect fail-mode configuration, or strikes installed on non-standard frames. This model sidesteps those pitfalls. It works on any standard jamb prep, accepts either 12V or 24V from whatever auxiliary power supply the integrator already has deployed, and the fail-safe/fail-secure logic lives in the access control panel, not in the strike hardware itself. That means you're not swapping hardware if a facility's security policy changes from fail-safe to fail-secure on a particular door—you reconfigure the panel instead. The US manufacturing footprint is a secondary but genuine advantage in federal and state procurement cycles; we've seen three-month lead-time reductions versus comparable imports.

Technical Highlights:

• Dual fail-mode logic: The same strike body operates in fail-safe or fail-secure mode depending on the access control system's relay wiring. Fail-safe (de-energized = unlocked) is default on most panels; reconfiguring to fail-secure (de-energized = locked) is a one-minute relay reassignment. On a 40-door campus retrofit where 35 doors are fail-safe and 5 are fail-secure, you buy one SKU and let software differentiation handle the rest.
• 12V/24V agnostic power: Most commercial facilities already have 12V or 24V auxiliary circuits running to access control panels. The 7140-515-628-00 accepts either without a converter or step-down module. We've paired it with panel-native 12V supplies on buildings with legacy hardwired readers and with 24V PoE-derived auxiliary supplies on IP-based systems. No compatibility surprises.
• Jamb-mount mechanical design: The strike seats into a standard 1¼" × 2⅛" mortise in the door jamb—no special frame milling. Corner or rack mount options accommodate both inswing and outswing doors. Installation time is under 20 minutes once the access control wiring is dressed.
• Direct panel relay integration: Connect the strike's two leads to a NO/NC relay pair on the access control panel's strike output. Momentary pulse or sustained voltage both work. No intermediary solenoid drivers or logic modules required. Simplicity = fewer points of failure and easier troubleshooting.
• Latch monitoring (optional): Many installations wire a supervised circuit that detects whether the strike actually released (latch dropped). If the access control system sends an unlock signal but the latch doesn't release—mechanical jam, corrosion, etc.—the monitoring circuit flags the fault. Critical for egress-on-alarm scenarios where a stuck strike could block emergency exit.

Deployment Considerations:

• Frame type matters: This strike is cut for standard wood jambs with the listed prep dimensions. If a door is installed on a hollow metal frame or a composite jamb, verify the prep matches before ordering. Retrofit to non-standard frames requires frame reinforcement or a different strike entirely.
• Power supply adequacy: The strike itself draws <2A on the unlock pulse, but if you're powering 6+ strikes from a single 12V or 24V auxiliary circuit, verify that the supply's total amp rating covers peak simultaneous load. We've seen facilities under-spec auxiliary supplies, causing voltage sag that prevents reliable strike release during high-traffic periods.
• Wiring run supervision: On mid- to high-security applications, run the strike wiring in conduit and wire a tamper loop that detects if the strike leads are cut or shorted. The access control system's alarm input can log these events. Unmonitored wiring is acceptable for low-security visitor entry but risky for restricted areas.
• Fail-safe vs. fail-secure planning: Determine your fail-mode strategy before installation. Fail-safe (unlocked on power loss) is safer for life-safety egress but less secure if external power is cut as part of an attack. Fail-secure (locked on power loss) requires backup power on the door if occupants need to evacuate. A hybrid approach—fail-safe on exit stairs, fail-secure on server-room access—is typical in larger facilities.
• Testing protocol: After installation, pulse the strike at least 500 times during acceptance testing. Mechanical wear on the latch release surfaces is minimal, but latent manufacturing defects show up quickly. We require documented test logs before final sign-off.

The HES 7140-515-628-00 is the right choice for system architects and integrators who value straightforward, maintainable access control hardware without proprietary dependencies. It's especially suited for retrofit projects where you're standardizing fragmented door-control infrastructure. If you're building a new campus or upgrading a legacy system, this strike pairs well with any mid-range access control platform and eliminates false economy decisions around power supplies or fail-mode configuration. For more details on HES access control hardware and strike options, see the HES catalog.
