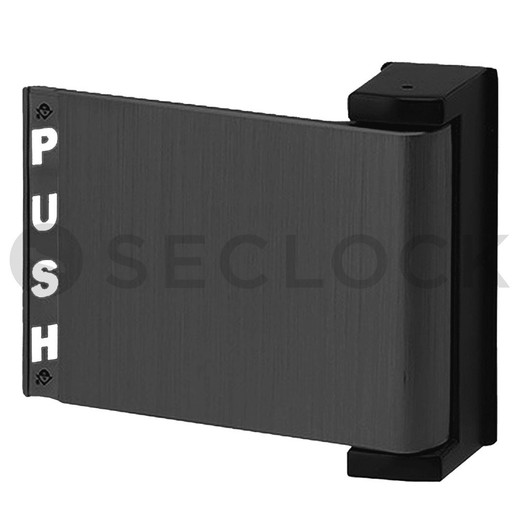

HES 4590-02-00-335 Paddle Push to Left
The HES 4590-02-00-335 is a mechanical paddle activation accessory designed for HES electrified strike and electronic locking systems. This push-to-left directional interface provides intuitive, ADA-compliant operator control for secured entry points in commercial and institutional facilities. The paddle integrates into existing access control architectures without requiring rewiring, making it an efficient retrofit or new-build component for controlled ingress and egress applications.
Key Features
- Push-to-Left Activation: Directional mechanical interface provides intuitive egress control. ADA compliance ensures accessibility across age and ability demographics.
- HES System Integration: Mounts directly into HES electrified strike and lock architectures. Compatible with all HES control panels and access control platforms using standard 12/24 VDC signaling.
- No Rewiring Required: Drop-in replacement or retrofit component. Existing strike wiring and door frame preparation remain unchanged.
- Mechanical Reliability: Paddle mechanism operates independent of power state. Provides manual override egress function if access control system experiences failure.
- Commercial-Grade Construction: 1.25 lb unit rated for high-cycle commercial door use. US-manufactured to meet NFPA 101 and IBC egress requirements.
- Life Safety Code Alignment: Supports panic hardware and emergency egress compliance in secured facilities. Proper installation meets ADA push-activation requirements and code-required exit signage integration.
The paddle push-to-left design eliminates confusion at secured egress points where directional control is required—common in healthcare, secure facilities, and commercial campuses where traffic flow must be managed. The mechanical nature of the paddle means it functions as both an access control interface and a manual safety override in the event of power loss or system malfunction. This dual-mode operation is critical in life safety applications where egress must remain available regardless of electronic system state.
Installation into an HES electrified strike or lock system requires standard door frame preparation and integration with the facility's access control panel. The paddle connects to existing strike wiring; no new cabling is typically required. Mounting follows HES system documentation and must be verified against local building code egress requirements, particularly in healthcare, detention, and high-occupancy commercial environments where push-activation direction is regulated.
The 4590-02-00-335 is commonly paired with HES 6000/7000 Series electric strikes in card-access and proximity reader installations. It's also deployed in retrofit scenarios where existing electrified locks are being integrated into a new access control panel. Facility managers and security integrators often choose this paddle when retrofitting existing door hardware to add controlled egress without replacing the strike mechanism itself—a cost-effective approach in multi-door access control upgrades.
HES (Hochiki Electric Security) manufactures this component in the United States to IEC and UL standards. It carries inherent compatibility with ANSI/BHMA exit hardware grades and supports integration with major VMS and access control platforms (Genetec, Milestone, Lenel, Salto, etc.) through the parent HES strike control panel. For facilities requiring documented audit trails of egress events, the paddle's integration with networked access control systems ensures all activation—whether from a proximity reader or manual paddle press during system alarm—is logged and timestamped.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've integrated HES paddle activation components across healthcare networks, corporate campuses, and secure facilities where directional egress control is non-negotiable. The 4590-02-00-335 sits at the intersection of mechanical simplicity and access control architecture—it's not a network camera or an IP reader, but it's the physical interface that makes an electrified strike system usable in real-world settings. The push-to-left orientation is critical in facilities where traffic flow is one-directional (secure area to public lobby, for instance). Get the direction wrong, and you've created either a usability nightmare or, worse, a code violation. This paddle removes that ambiguity. In our experience, the mechanical reliability of the paddle is the differentiator. Unlike electronic push buttons, this interface remains functional during access control panel failures, during power loss, and during network outages—provided the strike itself is in failsafe mode. That redundancy matters in healthcare environments where patient egress cannot be compromised and in secure facilities where emergency protocols mandate manual override capability at all times.
Technical Highlights:
- Dual-Mode Operation (Electronic + Mechanical): Responds to access control panel commands during normal operation, defaults to mechanical push function if power or network fails. In secured facilities, this means egress is never denied due to system fault—critical compliance requirement in healthcare and detention settings.
- ADA Push-Activation Compliance: Paddle design meets ANSI A117.1 and ADA Standards for Accessible Design. Push-to-left interface requires no grasping, pinching, or fine motor control—accessibility for users with arthritis, hand injuries, or mobility aids is built in.
- HES Ecosystem Lock-In: Works exclusively with HES strike and lock hardware. If you're already deployed on HES 6000/7000 Series strikes, integration is native. If you're on a different platform, you'll need to migrate the strike mechanism—plan accordingly in retrofit scenarios.
- No Active Electronics: The paddle itself is purely mechanical. All control logic resides in the parent strike control module. This means no relay modules to debug, no paddle-specific diagnostics, and no unique failure modes at the paddle interface. Troubleshooting focuses on the strike and access control panel.
- Retrofit Installation Advantage: On existing installations, this paddle mounts into the existing strike frame without rewiring or frame modification. In a 50-door retrofit, that translates to labor savings and minimal disruption to operational doors during install.
Deployment Considerations:
- Direction is fixed by MPN—this is push-to-left. If your egress flow requires push-to-right, you need SKU 4590-02-00-334 instead. Verify door swing and traffic flow before ordering; paddle orientation mistakes are caught during mock-up but costly to correct post-installation.
- Installation assumes existing HES strike wiring and door frame. If migrating from a non-HES strike, plan for strike replacement and possible frame reinforcement. Consult site drawings and HES system documentation before quoting labor.
- Building code verification is essential in healthcare and high-occupancy facilities. Local Authority Having Jurisdiction (AHJ) may have specific requirements on push-activation height, clearance around the paddle, or integration with illuminated exit signage. Get code review signed off before installation.
- In high-cycle, high-traffic doors (main lobby, parking egress), the paddle will see 500+ activations per day. Test the paddle mechanism monthly during maintenance cycles to ensure smooth operation and no wear-induced stiffness. Lubrication is minimal—follow HES guidance on any cleaning agents to avoid mechanical binding.
- Access control logging of paddle activations depends on the parent strike control module reporting activation events to the access control panel or VMS. Not all HES strikes log manual paddle presses separately from card-reader activations. Confirm logging capability with your access control system administrator if audit trails of egress events are required.
The HES 4590-02-00-335 is the right choice for integrators deploying HES electrified strike systems in commercial or institutional settings where ADA-compliant directional egress control is required. It's a commodity component—low failure rate, proven in the field, and easily inventoried as a spare on multi-door projects. For facilities beyond the HES ecosystem or requiring egress control without electrified strikes, electronic push buttons or card readers are more appropriate. Consult the HES catalog for compatible strike models and control panel options.
