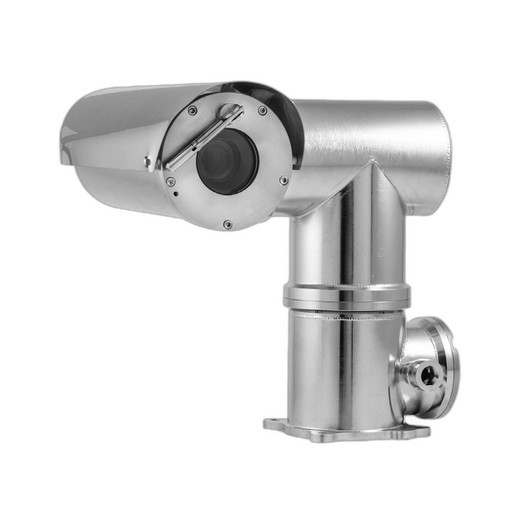

Hanwha TNU-X6320A2F2WT1-Z Explosion Proof PTZ Camera

Hanwha TNU-X6320A2F2WT1-Z Explosion Proof PTZ IP Camera

The TNU-X6320A2F2WT1-Z is a heavy-duty explosion-protected PTZ camera engineered for hazardous environments in onshore, offshore, marine, and industrial facilities. Built with electro-polished 316L stainless steel and rated for extreme conditions, this camera delivers reliable surveillance where safety compliance and durability are non-negotiable.

Key Features

• 2MP CMOS sensor with 1920x1080 resolution at 60fps (H.265/H.264/MJPEG)
• 32x optical zoom with 16x digital zoom; 4.44–142.6mm focal range
• 360° endless pan and 180° tilt with 45°/sec pan speed and 24°/sec tilt speed
• Extreme low-light performance: 0.05 Lux color / 0.005 Lux B&W (F1.6)
• 150dB WDR, HLC, auto-focus, auto-iris, and Gyro DIS for vibration compensation
• IP66/IP67 rated with integrated wiper and toughened glass window
• Built-in single-mode fiber module (9/125μm duplex) for extended transmission
• Triple codec streaming with WiseStream II for bandwidth optimization
• Intelligent video analytics and motion detection

Compliance & Construction

This camera holds multiple explosion-proof certifications: INMETRO Ex d IIC T4 (T5 on request) for temperatures from -60°C to +60°C, and cLCus C1/D1 certification for Class I Division 1 Groups B, C, D and Class II Division 1 Groups E, F, G. All welded assemblies use electro-polished 316L stainless steel; fasteners are A4 stainless steel. Dual M25 cable entries in the base provide maximum installation flexibility with existing conduit systems.

Environmental Performance

Designed to operate from -40°C to +60°C standard (T2 model extends to -60°C), the TNU-X6320A2F2WT1-Z features silicone wiper blades resistant to ozone, UV, ice, snow, and thermal extremes. A stainless steel 316L sun shield protects the optical window. Power consumption is up to 80W at 24 VAC or 110 VAC input.

Network & Protocol Support

Full ONVIF Profile S compliance with comprehensive protocol support including RTSP, HTTPS/SSL, SNMPv3, DHCP, DNS, DDNS, and QoS. Multiple simultaneous streams and VBR/CBR encoding ensure seamless integration with existing security infrastructure.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNU-X6320A2F2WT1-Z addresses the specialized needs of hazardous-area surveillance where regulatory compliance is mandatory. Its multi-certification approach (INMETRO, cLCus, CSA) and fiber-optic option make it suitable for offshore platforms, petrochemical facilities, and explosive-atmosphere zones. The 32x zoom reach, combined with 150dB WDR and low-light sensitivity, ensures effective coverage even in challenging outdoor conditions.

For integrators working in ATEX/IEC Ex or North American hazardous-location markets, this model eliminates the need for external enclosures while delivering PTZ flexibility and premium image quality.
