Hanwha TNU-X6320A1F2WT2-C Explosion Proof PTZ Camera

Hanwha TNU-X6320A1F2WT2-C Explosion Proof PTZ IP Camera

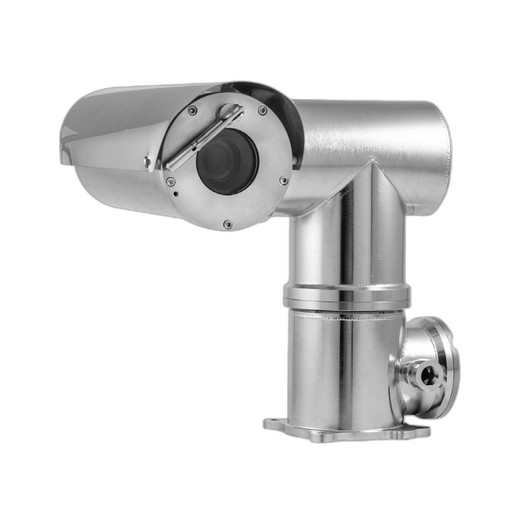

The TNU-X6320A1F2WT2-C is a certified explosion-proof PTZ camera station engineered for deployment in hazardous areas across onshore, offshore, marine, and heavy industrial environments. Built with electro-polished 316L stainless steel on all welded assemblies and A4 stainless steel fixings, this unit withstands extreme corrosion, temperature fluctuations, and explosive atmospheric conditions. It delivers professional-grade surveillance with robust certifications including cLCus C1/D1, cLC CSA, and INMETRO compliance.

Key Features

• 2.4 MP CMOS sensor (1920x1080) with 60fps streaming at all resolutions
• 32x optical zoom with 16x digital zoom (4.44–142.6 mm focal range, F1.6–F4.4)
• 360° endless pan / 180° tilt with 45°/sec and 24°/sec speeds respectively
• Triple codec support: H.265, H.264, MJPEG with WiseStream II intelligent bitrate control
• Integrated gyro-stabilized digital image stabilization (DIS)
• Day/night ICR switching with 0.05 Lux color and 0.005 Lux B/W minimum illumination
• Wide Dynamic Range (150dB) with HLC, BLC, and defog processing
• Intelligent video analytics and motion detection
• IP66-rated with toughened glass window and integrated silicone wiper blades
• Dual M25 NPT cable entries in base for conduit compatibility
• Built-in single-mode fiber module option (Duplex 9/125μm) for F2 models

Hazardous Area Certifications

This camera meets stringent explosion-proof standards:

• INMETRO: Ex d IIC T4 (T5 on request) Gb, -60°C ≤ Ta ≤ +60°C; Ex tb IIIC T135°C Db IP66/67
• cLCus C1/D1: Class I Division 1 Groups B, C, D (-60°C to 60°C) T4; Class II Division 1 Groups E, F, G IP67
• cLC CSA: Ex d IIC T4 (T5 on request), -60°C ≤ Ta ≤ +60°C

Technical Specifications

• Temperature rating: T1 (-40°C to +60°C) or T2 (-60°C to +60°C) models available
• Input voltage: 24 VAC or 110 VAC (model-dependent)
• Power consumption: Up to 80W maximum
• Weight: Up to 33 kg (73 lb)
• IP Rating: IP66
• Protocols: ONVIF Profile S, TCP/IP, UDP/IP, RTSP, HTTPS/SSL, DHCP, DNS, DDNS, SNMPv1/v2c/v3

Applications

Ideal for surveillance in explosive atmospheres including offshore drilling platforms, petrochemical refineries, pharmaceutical manufacturing, grain storage facilities, and chemical processing plants where flammable gases, vapors, dusts, or fibers may be present.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNU-X6320A1F2WT2-C represents industrial-grade explosion-proof imaging with dual temperature variants and optional fiber integration. The 32x optical zoom combined with gyro DIS enables clear identification across expansive hazardous zones without requiring multiple camera stations. Triple codec streaming with WiseStream II ensures efficient network bandwidth utilization in bandwidth-constrained industrial environments.

Extensive stainless steel construction and integrated wiper blades ensure long-term reliability in corrosive or dusty explosive atmospheres. For organizations requiring fiber-isolated surveillance in Class I hazardous locations, the F2 variant with built-in single-mode fiber module provides superior electromagnetic immunity and safety isolation from control networks.
