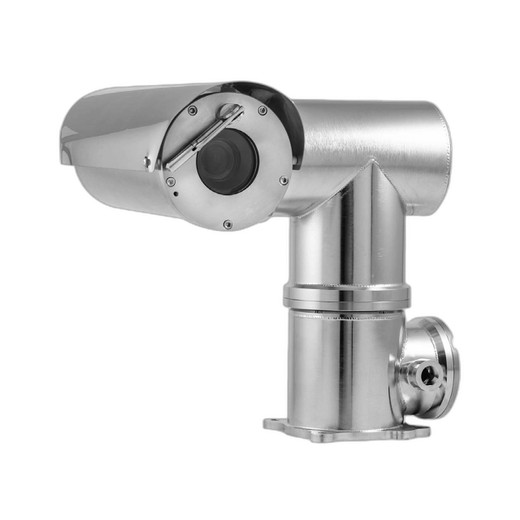

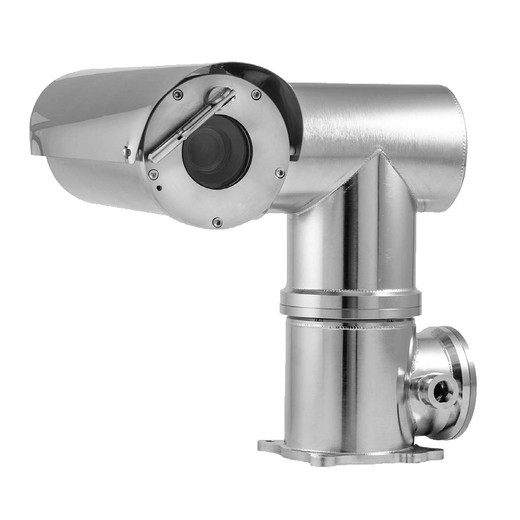

Hanwha TNU-X6320A1WT2-C Explosion Proof PTZ Camera

Hanwha TNU-X6320A1WT2-C Explosion Proof PTZ Camera

The TNU-X6320A1WT2-C is a heavy-duty explosion-protected PTZ camera station engineered for the most demanding hazardous area applications. Built with electro-polished 316L stainless steel and certified to multiple international explosion-proof standards, this camera delivers reliable surveillance in onshore, offshore, marine, and heavy industrial environments where safety compliance is non-negotiable.

Key Features

• 2MP 1920x1080 resolution at 60fps with H.265, H.264, and MJPEG triple codec support
• 32x optical zoom with 16x digital zoom (4.44-142.6mm lens, F1.6-F4.4)
• 360° endless pan / 180° tilt with 45°/sec pan and 24°/sec tilt speed
• Exceptional low-light performance: 0.05Lux color, 0.005Lux B/W
• 150dB WDR, day/night ICR, HLC, and integrated gyro-stabilized DIS
• IP66 rated with integrated silicone wiper blades and 316L stainless steel construction
• cLCus C1/D1 and cLC CSA certified for hazardous areas
• Intelligent video analytics with motion detection and SSDR/SSNR III noise reduction

Technical Specifications

The camera features a 1/2.8" 2.4MP CMOS sensor delivering stable 1920x1080 video at 60fps across all resolutions. Its optical zoom lens provides a 62.8° to 2.23° horizontal angle of view, enabling precise monitoring of expansive industrial sites. WiseStream II compression technology reduces bandwidth without sacrificing image quality.

Operating temperature range extends from -40°C to +60°C (T1 rating) or -60°C to +60°C (T2 rating available). Power consumption reaches a maximum of 80W at 24VAC or 110VAC input, with dual M25 cable entries for easy conduit integration. The camera weighs up to 33kg and houses all optics behind toughened glass protected by a stainless steel 316L sun shield.

Compliance & Durability

Certified under INMETRO (Ex d IIC T4/T5), CSA/cLCus (Class I, Division 1, Groups B,C,D), and cLC standards, this PTZ meets rigorous explosion-proof requirements for hazardous classified locations. Its electro-polished welded assemblies and A4 stainless steel fixings resist corrosion in marine and chemical environments. Integral wiper blades withstand prolonged exposure to ozone, UV, ice, snow, and extreme temperatures without degradation.

Applications

Ideal for oil & gas facilities, chemical plants, refineries, offshore platforms, explosive storage areas, and other ATEX/IEC Ex classified environments requiring certified surveillance with pan-tilt-zoom capability and extended optical reach.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNU-X6320A1WT2-C represents Hanwha's commitment to safety-critical surveillance. Its multi-standard certification (INMETRO, CSA, cLC) ensures global deployment flexibility while its 316L stainless steel construction and integrated gyro-stabilized DIS deliver reliable 24/7 monitoring in harsh environments. The 32x optical zoom with 150dB WDR and 0.005Lux B/W sensitivity enable detailed asset tracking and perimeter security across expansive industrial sites.

Triple codec support and WiseStream II compression optimize bandwidth for remote monitoring over limited connectivity links common in offshore and remote locations. For operators requiring explosion-proof PTZ cameras with industrial-grade durability and proven compliance credentials, this unit is a premium choice.
