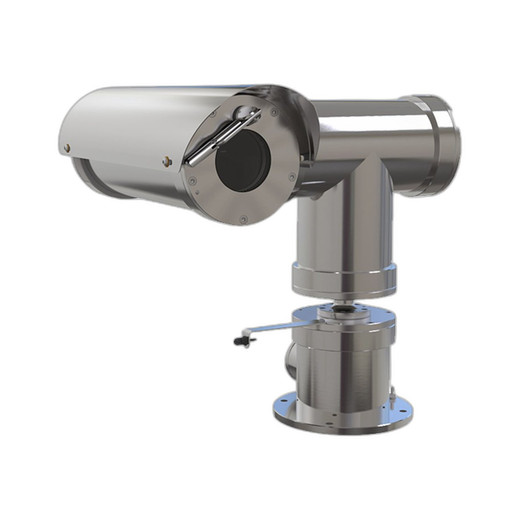

Hanwha TNU-X6320E2WT1-C Explosion Proof PTZ Camera

Hanwha TNU-X6320E2WT1-C Explosion Proof PTZ Camera

The Hanwha TNU-X6320E2WT1-C is a certified explosion-proof PTZ camera engineered for mission-critical surveillance in hazardous environments. Built with electro-polished 316L stainless steel construction and comprehensive international certifications (INMETRO, cLCus, and CSA), this camera delivers robust monitoring capabilities where safety compliance and durability are non-negotiable. The 2MP sensor with 32x optical zoom and intelligent video analytics makes it ideal for petrochemical facilities, mining operations, pharmaceutical manufacturing, and other Class I/II Division 1 hazardous locations.

Key Features

• Certified explosion-proof design: INMETRO Ex d IIC T4, cLCus Class I Division 1 Groups B,C,D, CSA-compliant
• 2MP CMOS sensor with 1920x1080 resolution at 60fps across all bitrates
• 32x optical zoom with 16x digital zoom and continuous autofocus (4.44–142.6mm, F1.6–F4.4)
• 360° endless pan at 45°/second; 180° tilt at 24°/second
• Exceptional low-light performance: 0.05 Lux color, 0.005 Lux B/W
• 150dB Wide Dynamic Range with HLC and SSNR III noise reduction
• Intelligent video analytics and motion detection
• Integrated silicone wiper blades resistant to ozone, UV, ice, snow, and extreme temperatures
• Optional built-in fiber module for long-distance transmission
• Triple codec streaming: H.265, H.264, and MJPEG with WiseStream II
• IP66-rated stainless steel housing with toughened glass window

Technical Highlights

The 1/2.8" 2.4MP CMOS sensor delivers crisp HD imagery with day/night ICR capability. Advanced optical and digital image stabilization, including Gyro DIS and SSDR, ensures stable video even during rapid pan/tilt movements. The camera supports multiple streaming protocols (ONVIF Profile S, RTSP, HTTP, HTTPS) and industry-standard TCP/IP networking with DHCP, DDNS, NTP, and SNMPv1/v2c/v3 for seamless integration into existing security infrastructure.

Construction materials meet hazardous area requirements: electro-polished 316L stainless steel body with A4 stainless steel fixings, toughened glass window, and two ¾" NPT cable entries in the base. Temperature ratings span -40°C to +60°C (T1) or -60°C to +60°C (T2), with power consumption up to 80W maximum. 24 VAC or 110 VAC input voltage options accommodate diverse installation requirements.

Applications

Designed for hazardous classified locations including oil and gas extraction, refining and petrochemical plants, underground mining operations, pharmaceutical manufacturing facilities, grain handling and storage, paint spray booths, and other Class I Division 1 or Class II Division 1 environments where explosion-proof equipment is mandated by regulation.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNU-X6320E2WT1-C represents a premium solution for regulated hazardous area surveillance. Its dual-certification approach (INMETRO, cLCus, CSA) ensures compliance across multiple jurisdictions—critical for multinational operations. The 32x zoom combined with 150dB WDR addresses the challenge of monitoring large, dynamically lit hazardous zones; the 0.005 Lux B/W sensitivity enables detection in low-light process areas.

Stainless steel construction and integrated wiper blades withstand corrosive chemical exposure and harsh outdoor conditions inherent to petrochemical and mining sites. The optional fiber module accommodates installations requiring long-distance transmission in electromagnetically sensitive environments. Triple codec support and WiseStream II optimize bandwidth in bandwidth-constrained hazardous area networks.

This camera is best suited for organizations requiring uncompromising compliance alongside advanced surveillance performance.
