Hanwha TNU-X6320A2WT1-Z Explosion Proof PTZ Camera

Hanwha TNU-X6320A2WT1-Z Explosion Proof PTZ Camera

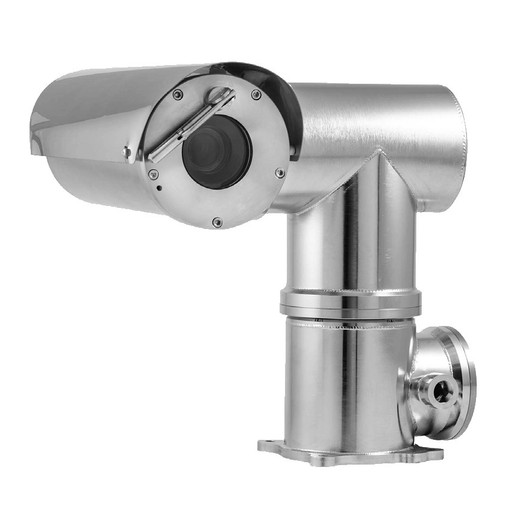

The TNU-X6320A2WT1-Z is a heavy-duty explosion-protected PTZ camera designed for hazardous classified environments including onshore, offshore, marine, and heavy industrial applications. Built with electro-polished 316L stainless steel and certified to multiple international explosion-proof standards, this camera delivers reliable surveillance in the most demanding and dangerous locations.

Key Features

• 2MP CMOS sensor with 1920x1080 resolution at 60fps
• 32x optical zoom with 16x digital zoom (4.44-142.6mm lens)
• 360° endless pan / 180° tilt with 45°/24° per second pan/tilt speed
• Triple codec streaming (H.265, H.264, MJPEG) with WiseStream II bandwidth optimization
• Intelligent video analytics with motion detection and gyro-stabilized DIS
• Extreme low-light capability: 0.05 Lux color / 0.005 Lux B&W
• 150dB WDR, HLC, auto focus, and auto iris for dynamic lighting
• IP66-rated weatherproof enclosure with integrated silicone wiper
• Stainless steel 316L mirror finish sun shield and toughened glass station window

Explosion-Proof Certification

This camera meets stringent international safety standards for hazardous environments:

• INMETRO: Ex d IIC T4 (T5 on request) Gb -60°C to +60°C; Ex tb IIIC T135°C Db IP66/67
• cLCus C1/D1: Class I Division 1 Groups B,C,D and Class II Division 1 Groups E,F,G (CSA certified)
• cLC CSA: Ex d IIC T4 (T5 on request) -60°C to +60°C

Technical Highlights

• Temperature range: -40°C to +60°C standard (T2 option to -60°C)
• 24 VAC or 110 VAC input voltage (model dependent)
• Up to 80W maximum power consumption
• Dual M25 cable entries for easy conduit integration
• ONVIF Profile S compliant with comprehensive protocol support (TCP/IP, RTSP, HTTPS, SNMP, FTP, DHCP)
• A4 stainless steel fixings throughout
• Weight: up to 33kg

Video Processing & Analytics

Advanced imaging features include day/night ICR mode, 150dB wide dynamic range, highlight compensation, gyro-enabled digital image stabilization, defog capability, and intelligent motion detection. Multiple simultaneous streaming with VBR/CBR control and WiseStream II compression ensure efficient bandwidth utilization across diverse network conditions.

Applications

Ideal for offshore platforms, petrochemical plants, refineries, grain facilities, pharmaceutical manufacturing, mining operations, and any Zone 1/Division 1 classified hazardous area requiring continuous pan-tilt-zoom surveillance with superior image quality and reliability.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNU-X6320A2WT1-Z represents premium explosion-proof surveillance technology. Its 32x optical zoom and intelligent gyro DIS deliver stable, detailed monitoring across vast hazardous zones, while 150dB WDR handles the glare and shadows common in industrial environments. The dual-codec approach (H.265/H.264) with WiseStream II optimization is particularly valuable for remote or bandwidth-constrained hazardous area deployments.

The 316L stainless steel construction and IP66 rating ensure multi-decade operational life against corrosion and environmental stress. For organizations operating in ATEX, IECEx, or North American classified areas, this camera's multi-certification portfolio eliminates regulatory uncertainty and streamlines compliance documentation.
