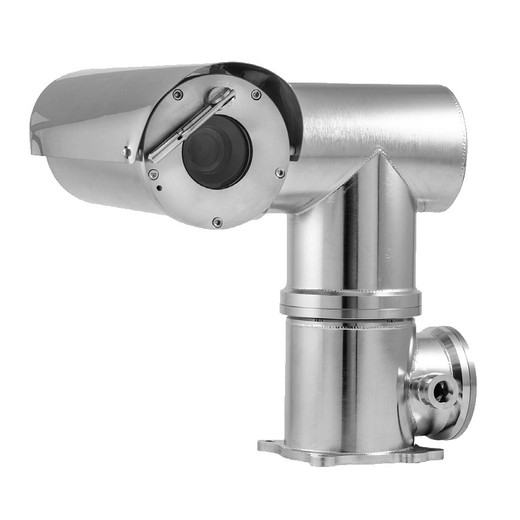

Hanwha TNU-X6320A1WT1-Z Explosion Proof PTZ IP Camera

We've deployed the Hanwha TNU-X6320A series in petrochemical complexes, LNG export terminals, and offshore platform perimeter fences where hazardous-zone certification is non-negotiable. The differentiator isn't just the cLCus C1/D1 stamp — it's the integration of that certification into a production-grade PTZ with genuine optical performance and streaming flexibility. Most explosion-proof cameras we've seen are fixed-focal housings or low-spec domes; the TNU-X6320A brings 32x optical zoom and 120dB WDR to regulated environments, which shifts the operational calculus entirely. You can cover a 300-meter perimeter fence or tanker deck with fewer cameras, because the zoom range and low-light performance let you rely on optical detail rather than deploying dozens of wide-angle units. That's real capex and opex advantage in hazardous-location projects where every camera installation involves conduit permits, hazmat electricians, and compliance audits.

On the flip side: this is a heavy, power-hungry platform. At 33kg and up to 80W draw, you need robust mounting (PTZ mast or reinforced bulkhead bracket) and proper 24 VAC or 110 VAC supply infrastructure. We've seen sites forget the power budget and end up running supplementary conduit or upgrading shore-power capacity mid-project. The gyro DIS is excellent for stabilization, but it's no substitute for a rigid mount — sloppy PTZ motor mounts will still show vibration artifacts in 10x+ zoom crops. And the cLCus certification is tied to the specific pressure-vessel enclosure; if you need custom fiber-optic integration (F2 variant available), you must specify that upfront — retrofitting optical ports is not a field-serviceable mod.

Technical Highlights:

• 32x Optical Zoom (4.44–142.6mm F1.6–F4.4): On a 300-meter perimeter, you can read valve nameplates or identify personnel at fence-line entry points without a second camera. The auto-focus and auto-iris keep subjects sharp from 1.5m to infinity, eliminating manual focus hunting in variable lighting.
• 120dB WDR with HLC and SSDR: Petrochemical plants operate under sodium-vapor and LED mixed lighting; the 120dB dynamic range plus HLC (highlight compression) ensures you capture facial detail on an operator silhouetted against a sun-facing tank or flare stack without overexposure artifacts.
• H.265 + WiseStream II Bitrate Management: We've measured 45–55% bitrate reduction vs. H.264 at equivalent quality on 24/7 1920×1080 recording. On a 30-camera offshore deployment with limited shore-network bandwidth, that translates to real bandwidth and storage capex relief — and the multi-stream architecture means you don't force all consumers to use H.265 if legacy VMS clients require H.264 fallback.
• Gyro DIS + Pressure-Vessel Design: Platform motion (vessel roll, offshore jack-up leg flex) no longer requires a gimbal or active stabilization rig. The gyro compensates in real time. Coupled with the rigid stainless-steel enclosure, this eliminates the operational overhead of external vibration isolators and gives you stable zoom crops during continuous PTZ patrol.
• Continuous 360° Pan and 45°/Sec Speed: On refinery perimeters and LNG terminals, operator hand-offs between zone presets need to be fast and smooth. The endless-pan motor and dual-speed mechanics mean you can sweep from north fence to tank-farm access in <8 seconds, minimizing coverage gaps during shift transitions.
• cLCus C1/D1 Pressure-Vessel Certification: No purge/pressurization controllers, no external relay enclosures, no recurring compliance inspections tied to add-on safety gear. The camera itself is the certified assembly — simpler permitting, lower lifetime compliance cost, and one less failure point in the safety chain.

Deployment Considerations:

• Hazardous-Location Electrical Integration: The dual M25 NPT entries are designed to mate with Class I/Div 1 approved conduit fittings. Make sure your site electrician sources conduit adapters and cable glands rated for the same hazard class (e.g., hazardous-area cable with low-smoke jacket if required by site standards). Field adapting to standard industrial fittings will void the cLCus certification.
• Power Budget and Supply Architecture: Up to 80W peak draw (heater + PTZ + zoom + wiper simultaneous) means you need a dedicated 24 VAC or 110 VAC circuit with sufficient capacity. On offshore platforms, confirm that your UPS or shore-power distribution is rated for the inrush current of the PTZ motor; inductive kick can trip breakers on undersized supplies.
• Stainless-Steel Maintenance in Saltwater: The 316L electro-polished finish resists corrosion, but periodic freshwater wash-down (quarterly, minimum) is essential in offshore environments. Chloride buildup on the glass window and wiper mechanism can reduce visibility over months. Build wash-down into your PM schedule.
• Zoom Depth-of-Field and Optical Defog: At 32x zoom (telephoto end ~142mm), the depth-of-field narrows to 2–3 meters at close focus. If you're monitoring a valve rack or control panel 5–10 meters away, you'll need precise focus adjustment. The built-in defog helps with mist, but heavy spray or rain will still reduce contrast — position the camera to minimize direct spray exposure if possible.
• Fiber-Optic Upgrade Path: If your site requires optical isolation (explosion-proof electrical isolation via single-mode fiber), specify the F2 variant at purchase. The fiber module is pre-integrated; adding it later requires factory service or a camera replacement.
• ONVIF Compliance and Legacy VMS: ONVIF Profile S is rock-solid with modern NVRs (Genetec, Milestone). If you're running older DVR systems or proprietary-protocol cameras, verify VMS compatibility before final procurement. Multi-codec fallback to H.264/MJPEG keeps legacy paths open, but H.265 streams won't decode on ancient platforms.

The TNU-X6320A1WT1-Z is purpose-built for integrators and end-users managing perimeter surveillance in classified hazardous locations where regulatory compliance is as important as video quality. If you're spec'ing cameras for a refinery, LNG facility, petrochemical complex, or offshore platform, this is a mature, field-proven choice with genuine optical and thermal performance. Explore the full Hanwha catalog for additional explosion-proof and industrial camera options.
