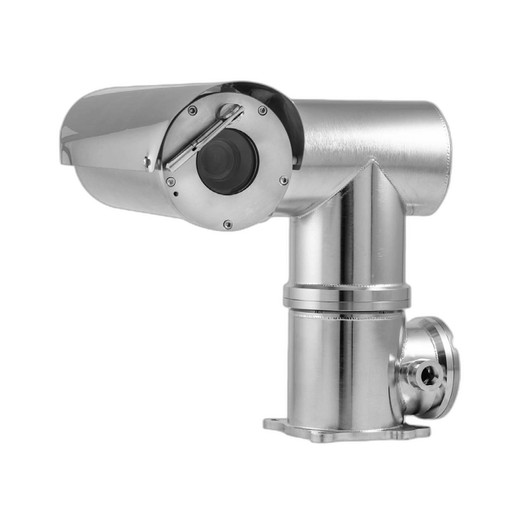

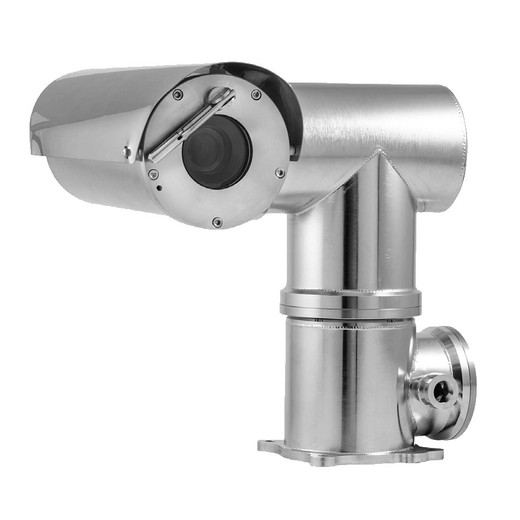

Hanwha TNU-X6320A1F2WT1-Z Explosion Proof PTZ Camera

Hanwha TNU-X6320A1F2WT1-Z Explosion Proof PTZ Camera

The TNU-X6320A1F2WT1-Z is a robust explosion-protected PTZ camera station engineered for hazardous area surveillance in onshore, offshore, marine, and heavy industrial environments. Built with electro-polished 316L stainless steel and certified to multiple international explosion-proof standards, this camera delivers professional-grade monitoring capabilities in the most demanding conditions.

Key Features

• 2.4MP 1/2.8" CMOS sensor with 1920×1080 resolution at 60fps
• 32x optical + 16x digital zoom (4.44–142.6mm lens, F1.6–F4.4)
• 360° endless pan / 180° tilt with 45°/24° per second pan/tilt speed
• Exceptional low-light performance: 0.05Lux color / 0.005Lux B&W
• H.265/H.264/MJPEG triple codec with WiseStream II bandwidth optimization
• 150dB WDR, day/night ICR, HLC, and Gyro-stabilized DIS
• Intelligent video analytics and motion detection
• IP66 rated with integral silicone wiper and stainless steel sun shield
• Optional single-mode fiber module (9/125μm duplex)

Technical Specifications

• Construction: Electro-polished 316L stainless steel on all welded assemblies; A4 stainless steel fixings; toughened glass camera window
• Temperature Range: T1: -40°C to +60°C; T2: -60°C to +60°C (optional)
• Power: 24VAC or 110VAC supply; up to 80W maximum consumption
• Connectivity: ONVIF Profile S, TCP/IP, UDP/IP, RTSP, HTTP/HTTPS, DHCP, FTP, SMTP, SNMPv1/v2c/v3, DNS, DDNS, UPnP, Bonjour, LLDP, SRTP
• Cable Entry: 2 × M25 connectors in base for easy field installation
• Weight: Up to 33kg (73lb)

Certifications & Standards

This camera carries comprehensive explosion-proof certifications for hazardous areas:

• INMETRO: Ex d IIC T4 (T5 on request) / Ex tb IIIC T135°C, IP66/67
• CSA C1/D1: Class I Division 1 (Groups B, C, D) and Class II Division 1 (Groups E, F, G)
• CSA LC: Ex d IIC T4 (T5 on request) at -60°C to +60°C

Ideal Applications

Purpose-built for mission-critical surveillance in classified hazardous locations including petrochemical facilities, refineries, offshore platforms, mining operations, chemical plants, and other explosive atmosphere environments where regulatory compliance and reliability are paramount.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNU-X6320A1F2WT1-Z represents the gold standard for explosion-proof PTZ surveillance. Its 32x optical zoom with Gyro DIS enables clear identification of targets from distance without sacrificing stabilization in harsh conditions. The triple codec support with WiseStream II ensures flexible deployment across heterogeneous network infrastructures while optimizing bandwidth consumption.

Dual cable entries and fiber optic option provide both traditional conduit compatibility and future-proof connectivity for remote hazardous area installations. The combination of 316L stainless steel construction, integral wiper, and comprehensive temperature rating (-60°C option) ensures longevity in corrosive, extreme-temperature, and UV-exposed environments. Multiple international certifications—INMETRO, CSA, and UL—provide confidence for operations across North American, South American, and global jurisdictions.

For organizations requiring demonstrable compliance in regulated hazardous areas, this platform delivers both technical performance and certification certainty.
