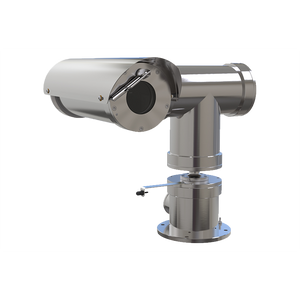

Hanwha TNU-X6320A2F2WT1-M Explosion Proof PTZ Camera

Hanwha TNU-X6320A2F2WT1-M Explosion Proof PTZ Camera

The TNU-X6320A2F2WT1-M is a heavy-duty explosion-protected PTZ camera engineered for hazardous industrial environments including onshore/offshore oil and gas, marine facilities, and chemical processing plants. Built with electro-polished 316L stainless steel on all welded assemblies and A4 stainless steel fixings, this camera delivers reliable surveillance in the most demanding conditions while maintaining full compliance with international explosion-proof certifications.

Key Features

• 2MP 1920x1080 resolution at 60fps with H.265/H.264 and MJPEG triple codec support
• 32x optical zoom with 16x digital zoom (4.44-142.6mm lens, F1.6-F4.4)
• 360° endless pan / 180° tilt with 45°/second pan speed and 24°/second tilt speed
• Extreme low-light performance: 0.05Lux color, 0.005Lux B/W with auto iris and auto focus
• Day/night ICR, 150dB WDR, HLC, BLC, and Gyro DIS for enhanced image clarity
• WiseStream II intelligent streaming with VBR/CBR support for bandwidth optimization
• IP66 rated with toughened glass window and integrated silicone wiper blades
• Stainless steel 316L sun shield with mirror finish to reduce glare
• Built-in fiber module option: Duplex single-mode 9/125μm (F2 models only)
• ONVIF Profile S compliant with comprehensive protocol support (TCP/IP, UDP, RTSP, HTTPS, SNMP, FTP)

Technical Specifications

• Sensor: 1/2.8" 2.4MP CMOS
• Temperature Rating: T1: -40°C to +60°C; T2: -60°C to +60°C (optional)
• Power Supply: 24VAC or 110VAC (model dependent)
• Power Consumption: Up to 80W maximum
• Cable Entry: 2x M25 entries in base for easy conduit integration
• Weight: Up to 33kg (73lb)
• IP Rating: IP66/IP67
• Video Analytics: Intelligent motion detection and analytics

Explosion-Proof Certifications

• INMETRO: Ex d IIC T4 (T5 on request) Gb -60°C ≤ Ta ≤ +60°C; Ex tb IIIC T135°C Db IP66/67 (TUV 12.1080X/12.1081X)
• cLCus C1/D1: Class I Division 1 Groups B,C,D T4; Class II Division 1 Groups E,F,G IP67 (CSA C22.2 No. 30-M1986, 25-1966, 60065-03, UL1203, UL60065 ED.7)
• cLC CSA: Ex d IIC T4 (T5 on request) -60°C ≤ Ta ≤ +60°C (LC1311396, CAN CSA-C22.2 No. 60079-0:2011)

Ideal Applications

This camera is purpose-built for critical surveillance in classified hazardous locations including petrochemical refineries, gas processing facilities, mining operations, offshore platforms, and industrial manufacturing where explosive atmospheres are present or possible.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNU-X6320A2F2WT1-M stands out in the explosion-proof PTZ category due to its combination of advanced optical performance and rugged construction. The 32x optical zoom with 0.05Lux color sensitivity enables operators to maintain situational awareness across large hazardous zones without additional lighting infrastructure. Triple codec support and WiseStream II ensure flexible deployment in bandwidth-constrained offshore and remote environments.

Multi-certification compliance (INMETRO, cLCus, CSA) eliminates guesswork for global project deployments. The integrated fiber option (F2 models) is particularly valuable for facilities requiring electrical isolation in explosive atmospheres. Dual M25 cable entries simplify integration with existing conduit systems, reducing installation time and cost in retrofits.
