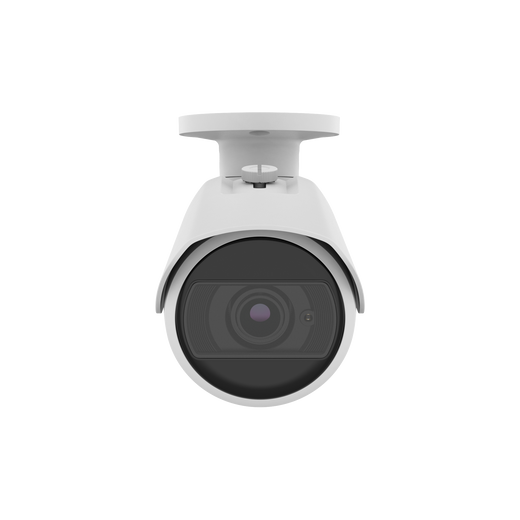

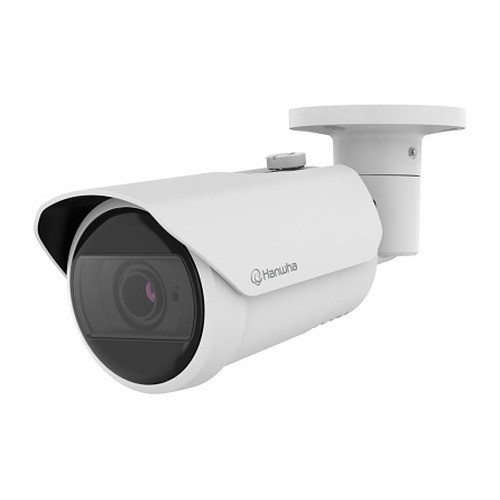

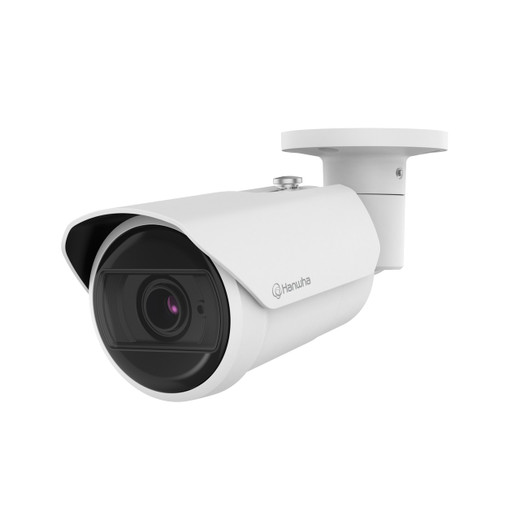

Hanwha QNO-C6083R (2MP) Outdoor AI IR Bullet Network IP Camera

Hanwha Vision QNO-C6083R

Hanwha Vision QNO-C6083R Overview

The Hanwha Vision QNO-C6083R is a 2MP outdoor bullet camera designed for reliable perimeter and general surveillance applications. Delivering Full HD 1920 × 1080 resolution at up to 30fps, this model combines essential video analytics, integrated IR illumination, and durable environmental protection in a cost-effective platform.

Equipped with a motorized varifocal 3.2–10mm lens, the QNO-C6083R allows flexible field-of-view adjustment during installation, making it suitable for both wide-area monitoring and tighter scene framing. With built-in IR LEDs supporting visibility up to 30 meters, it maintains dependable performance in complete darkness.

Optical Performance and Scene Coverage

The 3.2–10mm motorized varifocal lens provides installation flexibility without manual lens changes.

• Wide setting supports broader situational awareness for entrances and small parking areas.

• Tele setting increases pixel density for better subject recognition at mid-range distances.

This flexibility makes the camera practical for small commercial sites, retail storefronts, schools, and warehouse exteriors where coverage needs may change after installation.

Image Quality and Low-Light Capability

• Resolution: 2MP (1920 × 1080)

• Max Frame Rate: 30fps

• WDR: 120dB Wide Dynamic Range

• Minimum Illumination: Low-light color performance with IR support

The 120dB WDR ensures improved detail retention in scenes with strong backlighting, such as doorways or loading docks. Integrated IR LEDs provide up to 30m night visibility, allowing consistent monitoring in unlit areas.

Video Compression and Storage

• Compression: H.265, H.264, MJPEG

• WiseStream support for bandwidth optimization

• MicroSD support for edge storage

Efficient compression technologies reduce bandwidth consumption and storage requirements, making it well suited for multi-camera deployments.

Analytics and Event Detection

The QNO-C6083R includes essential intelligent video analytics such as:

• Motion detection

• Tampering detection

• Virtual line crossing

• Intrusion detection

These features support proactive monitoring without requiring advanced AI classification, keeping system costs manageable while improving event awareness.

Durability and Environmental Protection

• IP66 rated for dust and water resistance

• IK10 rated for impact protection

• Designed for outdoor installations

The rugged housing ensures reliable performance in harsh weather and exposed environments.

Power and Installation

• PoE (IEEE 802.3af)

• 12V DC support

• Compact bullet form factor

• Adjustable mounting bracket

PoE simplifies installation by combining power and data through a single cable.

When This Camera Is the Right Fit

• Small to mid-size commercial properties

• Retail and storefront monitoring

• School perimeters

• Light industrial facilities

• Budget-conscious outdoor surveillance projects

When to Consider a Higher-Tier Model

• If advanced AI object classification is required

• If longer IR range (50m+) is necessary

• If 4MP or higher resolution is needed for forensic-level detail
