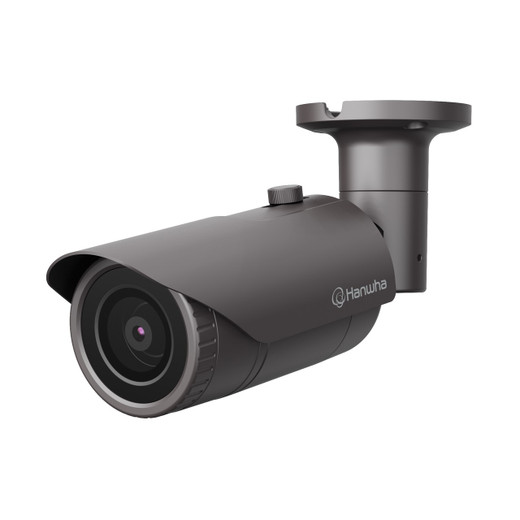

Hanwha QNO-6012R1 2MP Outdoor IR Bullet Camera
The Hanwha QNO-6012R1 is a 2MP outdoor bullet camera built for perimeter and entry-point coverage where the housing has to survive impact and weather as reliably as the sensor captures footage. With an IK10 vandal-resistant housing and an IP66 ingress rating, the QNO-6012R1 (often searched as QNO 6012R1) targets loading docks, parking structures, and building exteriors where a camera gets bumped, sprayed, or exposed to direct weather on a regular basis. It runs on standard PoE, so a single Cat5e/6 run handles both power and data back to the switch.
Overview
This is a fixed-lens bullet camera with a 2.8mm focal length, aimed at wide-area coverage rather than long-throw identification shots. It records at 2MP resolution up to 30fps and encodes in H.265, H.264, or MJPEG, giving installers flexibility to balance image quality against NVR storage budgets. Built-in IR illumination handles low-light and nighttime scenes, and Wide Dynamic Range (WDR) processing helps the sensor hold detail in scenes with mixed bright and dark areas — a garage entrance with daylight spilling in behind a dark interior, for example.
Key Features
- IK10 Vandal-Resistant Housing: rated to withstand high-impact strikes, which matters on bullet cameras mounted at reachable heights near loading docks, stairwells, or public-facing walls where deliberate tampering or accidental impact is a real risk.
- IP66 Weather Sealing: holds up against direct rain, wind-driven dust, and pressure washing common in outdoor commercial settings — install it under an eave or fully exposed and it won't be the weak point in the system.
- PoE (802.3af, Class 3): powers over the same Cat5e/6 cable that carries video, cutting out a dedicated electrical run to the mounting point and simplifying install budgets on multi-camera jobs.
- H.265/H.264/MJPEG Compression: H.265 support gives integrators a path to meaningfully cut storage footprint versus H.264 on always-recording deployments, while MJPEG stays available for compatibility with older viewing workflows.
- Wide Dynamic Range (WDR): keeps entryways and mixed-light scenes usable in the VMS instead of blown-out highlights next to black shadow, which is where a lot of evidence-grade footage gets lost on cheaper fixed cameras.
- Built-In IR Illumination: extends usable video into nighttime hours without relying on external lighting, keeping the camera functional after dusk on unlit building perimeters.
- microSD Storage Support: gives the QNO-6012R1 a local recording fallback if the network path to the NVR drops, so you're not blind during a connectivity outage.
- ONVIF Profile S/G/T Compliance: lets the camera integrate into third-party VMS platforms that support these ONVIF profiles rather than locking the install into one vendor's software stack.
- Onboard Video Analytics: includes defocus detection, directional detection, motion detection, enter/exit, tampering, and virtual line features — useful for flagging blocked or redirected cameras and triggering alerts on defined movement patterns without adding a separate analytics appliance.
- HTTPS Encryption: encrypts the camera's web management traffic, a baseline expectation for any camera going on a network segment with other business-critical devices.
- Wide Operating Temperature Range: rated from -30°C to +55°C (-22°F to +131°F), so the camera keeps operating through cold-climate winters and hot rooftop or wall-mount installs alike.
Integration & Compatibility
The QNO-6012R1 supports ONVIF Profile S/G/T, which covers most modern network video recorders and third-party VMS software. Standard RJ-45 10/100BASE-T networking and 802.3af PoE Class 3 power mean it drops into existing PoE switch infrastructure without special power injectors, provided the switch has budget available. Before pulling cable, review a PoE planning guide to confirm your switch has enough power headroom across all connected cameras. For broader context on where a 2MP fixed bullet fits against higher-resolution or wider-coverage options, the Hanwha IP camera lineup and general outdoor IP cameras category are good starting points, and a camera selection guide can help confirm resolution and lens choice against your specific coverage distance.
Frequently Asked Questions
Q: Is the QNO-6012R1 rated for outdoor installation?
A: Yes. It carries an IP66 ingress rating for dust and water resistance and an operating temperature range of -30°C to +55°C (-22°F to +131°F), making it suitable for exterior mounting in most climates.
Q: How vandal-resistant is the QNO-6012R1 housing?
A: The housing carries an IK10 rating, the highest tier on the IK impact-resistance scale, which suits mounting locations at reachable heights where tampering or accidental impact is a concern.
Q: What's the warranty on the QNO-6012R1?
A: The QNO-6012R1 carries a 3-year manufacturer warranty.
Q: Does the QNO-6012R1 support local storage if the network goes down?
A: Yes, it includes microSD card support for local recording independent of the network video recorder.
Q: What video compression formats does the QNO-6012R1 support?
A: It supports H.265, H.264, and MJPEG, letting you balance image quality against storage requirements based on your recorder's capacity.
Q: Will the QNO-6012R1 work with my existing VMS?
A: It supports ONVIF Profile S/G/T, so it integrates with VMS platforms and NVRs that support those ONVIF profiles.
The spec that jumps out on the QNO-6012R1 is the IK10 housing rating paired with IP66 sealing — that combination tells you Hanwha built this bullet camera for exterior mounting points that take abuse, not just weather exposure. It's a 2MP fixed 2.8mm camera, so think coverage over identification-range detail.
Technical Highlights:
- IK10 impact rating: the housing survives high-force impact strikes, which matters when you're mounting at 8-10 feet near a dock door where a pallet jack or delivery cart can clip it.
- 802.3af PoE Class 3: single-cable power and data simplifies runs to exterior mounting points where pulling separate electrical conduit isn't practical.
- H.265/H.264/MJPEG at 30fps: H.265 gives you a real storage reduction over H.264 on a recorder running this camera continuously, without giving up the 30fps needed for smooth motion capture at entry points.
Deployment Considerations:
- The fixed 2.8mm lens is a wide-angle field of view — good for covering a doorway or dock bay, not for reading plates or faces at 40+ feet. Match the lens to the actual throw distance before ordering.
- 0.5m minimum IR-effective range in the spec sheet reads unusually short for a bullet form factor — confirm actual scene lighting conditions match your low-light expectations before relying on it as your sole nighttime camera in a larger, unlit area.
The QNO-6012R1 fits a loading dock or side-entrance deployment where the housing needs to take a hit and shrug off weather more than it needs to zoom in on a far fence line — pair it with a wider-throw variant elsewhere on the perimeter if long-distance coverage is also required.
