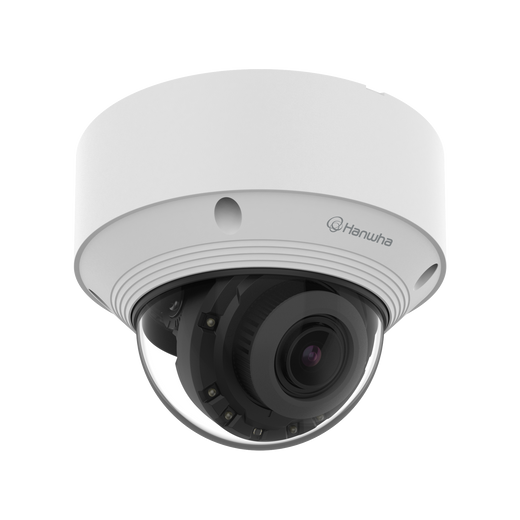

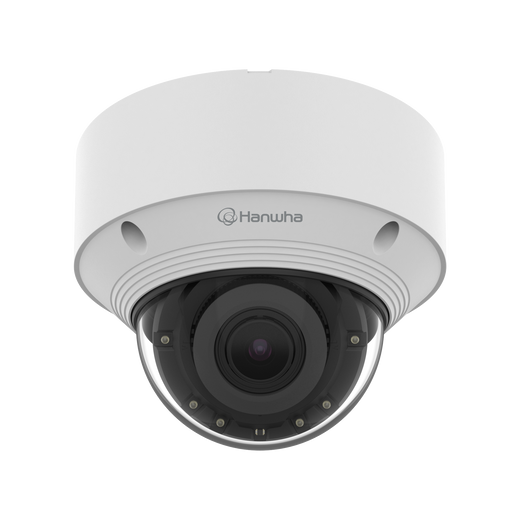

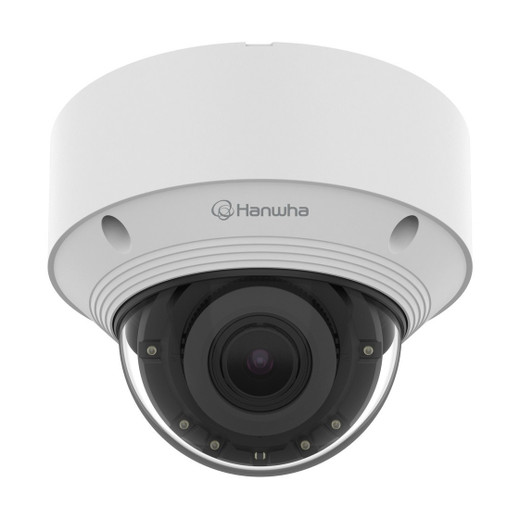

Hanwha QNV-C6083R 2MP Outdoor AI IR Dome Camera

Hanwha QNV-C6083R 2MP Outdoor AI IR Dome Camera

The Hanwha QNV-C6083R is a rugged 2MP outdoor dome engineered for perimeter protection, facility monitoring, and critical infrastructure where environmental durability and 24/7 identification capability are non-negotiable. Built on a 1/2.8 inch CMOS sensor delivering 1920×1080 resolution at 30fps, this camera combines motorized optics, wide dynamic range processing, and extreme weatherproofing to support enterprise deployments in coastal, industrial, and high-abuse environments.

Key Features

• 2MP 1920×1080 at 30fps: Delivers forensic-quality footage at standard frame rate—sufficient for identification across most outdoor zones without pushing storage or bandwidth costs unnecessarily high.
• 3.2–10.2mm motorized varifocal lens with 3.2x optical zoom: Eliminates the need to install separate fixed-focal cameras for different coverage zones. Wide setting (102° horizontal FOV) captures situational awareness; tele setting (32° horizontal FOV) concentrates pixels on critical areas, maximizing readable detail without additional hardware investment.
• 120dB Wide Dynamic Range (WDR): Handles extreme backlighting, bright reflections off water or metal, and nighttime rim-lit subjects—common outdoor challenges. Produces balanced, forensic-grade images across scenes that would otherwise require exposure compromise.
• 40m IR illumination at 850nm with 0.004 Lux minimum illumination (B/W mode): Extends reliable night coverage to 131 feet without external lighting, critical for perimeter zones and remote locations where power infrastructure is sparse. Low minimum illumination means the camera performs in near-complete darkness when IR is engaged.
• IP66 weatherproof and IK10 vandal impact protection: IP66 blocks dust and high-pressure water jets—adequate for direct rainfall, coastal spray, and washdown scenarios. IK10 (20J impact resistance) survives deliberate strikes and blunt-force attempts without optical or housing compromise. NEMA 250 Type 4X environmental compliance further confirms suitability for salt-air and chemically corrosive industrial environments.
• PoE powered (Max 9.8W, typical 4.0W, Class 3 support): Draws minimal power, so standard 802.3af switches won't be strained. No separate power supply needed. Enables remote installation in locations where AC power is inconvenient or unavailable.
• H.265/H.264/MJPEG codec support: H.265 cuts storage and bandwidth overhead roughly in half compared to H.264 at equivalent quality—meaningful when recording 24/7 across dozens of cameras or managing retention on edge storage. MJPEG fallback for motion-triggered events or low-bandwidth links.
• MicroSD/SDHC/SDXC edge storage up to 256GB: Provides local failover buffer if network connectivity drops, protecting against cloud dependency and connection loss. Up to 2GB RAM supports smooth stream handling and local analytics caching.
• Multi-protocol support (IPv4/IPv6, TCP/IP, UDP/IP, RTSP, MQTT, SNMPv3): Integrates with both traditional VMS platforms and modern edge-computing architectures. MQTT and SNMPv3 enable remote telemetry and system health monitoring without proprietary middleware.
• Operating range −40°C to +55°C, 0–100% RH non-condensing: Handles extreme temperature swings without optical fogging or electronics failure—relevant for outdoor installations in continental climates and high-humidity coastal zones.
• Dual audio in/out with G.711, G.726, AAC-LC compression: Supports two-way audio and external microphone input for event correlation and real-time communication, optional via dedicated cables.

Integration & Compatibility

The QNV-C6083R (often searched as QNV C6083R) supports ONVIF Profile S, G, T, and M, ensuring compatibility with IP cameras management platforms regardless of VMS vendor. Up to 5 simultaneous streaming profiles enable unicast delivery to 20 users plus multicast support for efficient bandwidth utilization in large-scale deployments. Dual alarm I/O ports support external triggers and relay control—essential for integrating perimeter sensors, gates, and audible alarms into unified security workflows.

Physical Design & Mounting

Aluminum housing with hard-coated polycarbonate dome resists UV degradation and thermal cycling. Compact 140mm diameter and 850g weight integrate easily into standard outdoor IP camera mounts—ceiling, wall-mounted pendant, or pole installation. Curved dome shape reduces wind loading in high-altitude or exposed-coast deployments.

When to Choose a Different Model

If your deployment requires higher resolution for long-distance identification (e.g., vehicle license plate capture beyond 100 feet), consider a higher-megapixel variant in the Hanwha IP cameras line. If you need fixed focal length to simplify configuration and reduce optical complexity, a fixed-lens variant may lower cost. If submersion or extremely high-pressure wash-down is required, verify IP67 or higher rating—IP66 is not rated for full underwater immersion.

Buyer's Guidance

Start by confirming that 2MP resolution and a 30fps frame rate align with your identification distance and bandwidth budget. Use the IP camera selection guide to cross-reference your specific field-of-view and coverage zone requirements against the 3.2–10.2mm lens range. If you're deploying multiple cameras on a single switch, review PoE power budgeting to ensure your switch has adequate capacity (the QNV-C6083R pulls under 10W typically, so power is rarely a bottleneck). For NVR selection, confirm your recorder supports H.265 decoding and ONVIF discovery—most modern appliances do, but legacy systems may require firmware updates.

Frequently Asked Questions

Q: What is the maximum IR illumination distance on the QNV-C6083R?

A: The camera delivers 40m (131 feet) of IR illumination at 850nm, enabling effective nighttime surveillance in complete darkness. At tele zoom (10.2mm), this range concentrates IR on distant subjects, maximizing identification detail in low-light conditions.

Q: Can the QNV-C6083R survive coastal salt-air environments?

A: Yes. The aluminum housing with hard-coated polycarbonate dome is NEMA 250 Type 4X compliant, confirming corrosion resistance in salt-air and chemically aggressive industrial environments. IP66 rating also blocks salt spray and moisture ingress.

Q: Does the motorized lens require manual setup for each zoom level?

A: No. The 3.2–10.2mm motorized varifocal lens is electronically controlled and can be adjusted remotely via the VMS or camera web interface. Once focused at your chosen focal length, the lens holds that position across power cycles.

Q: What VMS platforms are compatible with the QNV-C6083R?

A: The camera supports ONVIF Profile S, G, T, and M, which ensures broad compatibility with Milestone XProtect, Axis Camera Station, and most enterprise VMS platforms. Verify your specific VMS supports ONVIF discovery to streamline provisioning.

Q: How much storage do I need for 24/7 recording?

A: H.265 compression at 2MP produces roughly 300–500 MB per hour depending on scene complexity. For a 30-day rolling buffer on one camera, allocate 216–360 GB of local or NVR storage. The QNV-C6083R supports up to 256GB microSD cards for edge failover.

Q: Can I use standard PoE switches with the QNV-C6083R?

A: Yes. The camera draws a maximum of 9.8W and typically 4.0W, well within 802.3af (15.4W) limits. Standard Class 3 PoE switches will power this camera without dedicated high-power infrastructure.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QNV-C6083R strikes an effective balance between AI-class analytics capability and proven outdoor durability, making it a reliable choice for enterprise perimeter and infrastructure deployments where both identification and environmental resilience are critical. The motorized varifocal lens eliminates the need to spec separate cameras for different focal lengths—a real cost-of-ownership win when you're covering multiple zones from a single mount point.

Technical Highlights:

• 40m IR at 850nm with 0.004 Lux minimum illumination: Enables 24/7 operation without external lighting infrastructure. Combined with 120dB WDR, the QNV-C6083R handles extreme day/night transitions and backlighting that would leave fixed-exposure cameras blind.
• H.265 codec with typical 4.0W power draw: Cuts storage costs in half versus H.264 while drawing so little power that standard 802.3af switches handle dozens of these cameras without power budget strain or dedicated PoE injectors.
• IP66/IK10 plus NEMA 250 Type 4X: Triple-rated for environmental extremes. IP66 blocks rain and dust; IK10 survives deliberate impact; NEMA 4X adds corrosion resistance for coastal and chemical-spray industrial environments.

Deployment Considerations:

• The 3.2–10.2mm range is adequate for most perimeter and facility zones, but if you need tighter magnification (e.g., vehicle license plate capture beyond 150 feet), you'll want a higher-resolution model or fixed 10mm telephoto variant.
• PoE failover via 256GB microSD mitigates network dependency—configure rolling local buffer so you don't lose footage if your VMS recorder is offline.

Best-fit scenario: Multi-zone perimeter protection on industrial campuses, port facilities, and utility infrastructure where 2MP identification and extreme weather resilience are your primary concerns, and where reducing hardware complexity via a single motorized lens outweighs the marginal benefit of a second dedicated camera.

Key Specifications:
Color: White (RAL9003)
