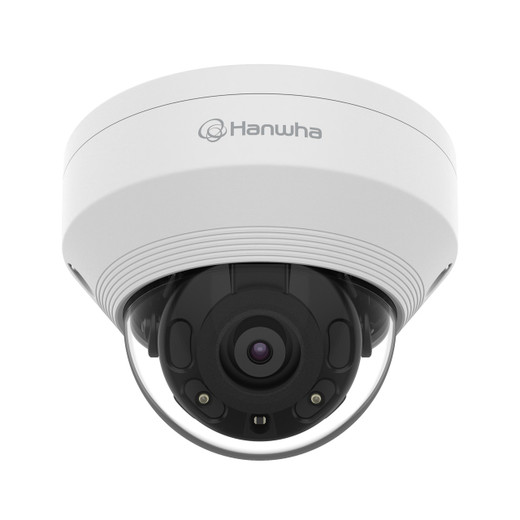

Hanwha QNV-6022R1 2MP Outdoor IR Vandal Dome Camera

Hanwha QNV-6022R1 2MP Outdoor IR Vandal Resistant Dome Network IP Camera

The Hanwha QNV-6022R1 is a compact, rugged 2-megapixel dome camera engineered for demanding outdoor surveillance environments. Its 1/2.8" CMOS sensor delivers 1920×1080 resolution at 30fps, combined with a fixed 4mm lens (87.6° horizontal field of view) optimized for perimeter monitoring and entry point coverage. Built to withstand harsh conditions, the camera carries IP66 weatherproof and IK10 vandal-resistant certifications, making it suitable for exposed outdoor installations where durability is critical.

Key Features

• 2MP Full HD (1920×1080) resolution at 30fps with H.265/H.264 and MJPEG codec support
• Integrated IR LEDs with 25m night vision range for 24/7 monitoring in complete darkness
• 120dB Wide Dynamic Range (WDR) and SSDR for balanced exposure in mixed lighting
• IP66/IK10 rated housing—fully weatherproof and vandal-resistant
• WiseStream II smart codec for optimized bandwidth without quality loss
• Intelligent analytics: motion detection, tampering alerts, directional detection, virtual line crossing, enter/exit, and defocus detection
• Day/Night auto ICR switching with multiple white balance modes (ATW, AWC, manual, indoor, outdoor)
• MicroSD/SDHC/SDXC edge storage up to 128GB for local recording
• PoE (IEEE 802.3af) and 12VDC power options; maximum 7.4W draw

Technical Highlights

The camera supports multiple resolution options (1920×1080 down to 640×360) and frame rates, allowing flexible bandwidth management for different network conditions. Its F1.6 maximum aperture and 0.03 Lux color sensitivity enable clear imaging in low-light environments before IR activation. Electronic shutter speeds range from 1/5 to 1/12,000 seconds with anti-flicker support, ensuring stability under fluorescent or LED lighting.

Advanced image processing includes Lens Distortion Correction (LDC), digital noise reduction (SSNR), and Hallway View (90°/270° rotation) for non-standard mounting scenarios. Pan/tilt/rotate capabilities (0–350°/0–67°/0–355°) provide flexible camera positioning without mechanical gimbal complexity.

Network capabilities include ONVIF Profile S/G/T compliance, SUNAPI HTTP API, and Wisenet open platform support for broad integration with third-party management systems. Security features encompass HTTPS/SSL encryption, digest and login authentication, 802.1X, IP filtering, and user access logging. Multilingual interface support (English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch) accommodates global deployments.

Applications

Ideal for warehouse perimeters, parking lot entries, building exteriors, utility installations, and any outdoor location requiring weatherproof, tamper-proof monitoring. The compact 120.3mm diameter housing and 510g weight simplify integration into tight spaces. PoE simplification reduces installation complexity and infrastructure costs compared to separate power runs.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QNV-6022R1 strikes a practical balance between cost and capability for mid-range outdoor surveillance. Its 25m IR range and 120dB WDR handle typical outdoor lighting extremes—direct sunlight against shadowed areas. The IK10 rating (1200J impact resistance) and IP66 sealing provide genuine durability; this is not a consumer-grade enclosure.

WiseStream II codec efficiency is particularly valuable on bandwidth-constrained networks common in remote sites. The fixed 4mm focal length and 87.6° FOV suit wide perimeter coverage rather than long-range detail; recognize-level facial identification is limited to 8m under ideal conditions. Edge storage up to 128GB mitigates network failures, though integration with cloud or NAS recording is recommended for mission-critical deployments.

ONVIF compliance ensures vendor flexibility, a significant advantage if future system expansion requires multi-brand components. Power consumption under 7.5W makes this PoE-friendly even on longer cable runs using higher-budget injectors.
