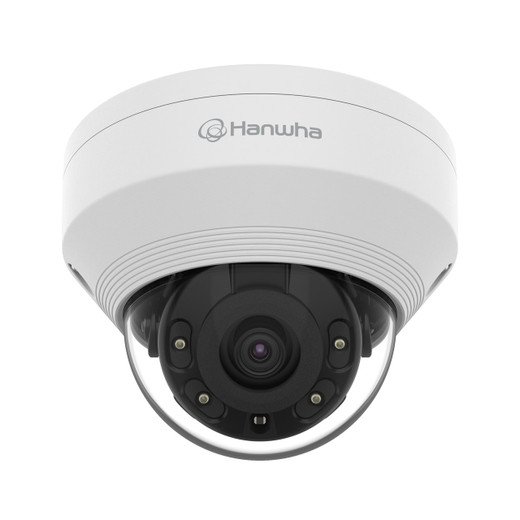

Hanwha QNV-6012R1 2MP Vandal-Resistant Outdoor IR Dome

Hanwha QNV-6012R1 2MP Vandal-Resistant Outdoor IR Dome

The Hanwha QNV-6012R1 is a compact 2MP dome camera purpose-built for outdoor perimeter surveillance in high-risk, high-impact environments. Built around a 1/2.8" CMOS sensor and fixed 2.8mm lens, it delivers 1920×1080 resolution across a 113.7° horizontal field of view—wide enough to cover parking lots, building facades, and entry points without excessive blind spots. The vandal-resistant dome housing rates IP66 (dust and water ingress protection) and IK10 (impact resistance up to 20 joules), making it suitable for areas where deliberate tampering or accidental damage is a realistic risk. QNV-6012R1 (often searched as QNV 6012R1) pairs durability with practical video intelligence for 24/7 outdoor deployments.

Key Features

• IP66 & IK10 Rated Housing: Direct rain and water spray won't compromise the camera, and the impact-resistant dome absorbs accidental or intentional strikes—critical for transit stations, parking structures, and public-access exteriors where vandalism is a known issue. This is your defense against weather and blunt-force damage; if you need full submersion capability, you'd need an IP67 or higher rated model instead.
• 20-Meter IR Illumination with 0 Lux Operation: Integrated IR LEDs light scenes at night without external illumination, enabling black-and-white capture in complete darkness. 20 meters (roughly 65 feet) is moderate range—sufficient for most building perimeters and parking lots, but insufficient for long-range perimeter fencing or remote access roads. Color sensitivity reaches 0.03 Lux at F2.0 aperture, so dusk/dawn scenes often stay in color mode rather than switching to IR.
• H.265, H.264, and MJPEG Codec Support: H.265 compresses video roughly 40–60% more efficiently than H.264, cutting storage and bandwidth costs significantly across 24/7 multi-camera deployments. H.264 provides broader legacy system compatibility, and MJPEG handles motion-heavy scenes without decoder overhead. You choose the codec per stream based on your recording infrastructure and VMS capabilities.
• 120dB Wide Dynamic Range (WDR) with SSDR & BLC: Handles scenes with bright sunlight on one half of the frame and deep shadows on the other—parking lots with mixed sun and overhang, building entrances with glass doors, and transit platforms at dawn all benefit. The combination of WDR, Selective Spatial Dynamic Range (SSDR), and Backlight Compensation (BLC) means you rarely lose detail in highlights or shadows across normal outdoor lighting transitions.
• PoE (IEEE 802.3af Class 3): Draws 6W typical, leaving your switch power budget intact even with dozens of cameras on a single PoE injector. No additional power cable runs; Cat5e/Cat6 carries both data and power. Minimal consumption also means lower heat dissipation and simpler thermal planning for outdoor enclosures.
• MicroSD/SDHC/SDXC Edge Storage (up to 128GB): Local backup and event recording on the camera itself. If your network drops or NVR is offline, recent footage survives on the card. 128GB holds approximately 4–7 days of continuous H.265 recording at full 2MP, depending on scene complexity and bitrate settings—useful as failsafe storage, not primary archive.
• On-Camera Analytics: Motion detection across 4 user-defined polygonal zones, tampering alerts (detects lens obstruction or sudden camera movement), defocus detection, directional detection, and virtual line crossing. These run on the camera, reducing backend processing load and enabling immediate local actions (alarm triggers, MicroSD event logging) without waiting for a central server.
• Operating Temperature -10°C to +55°C: Operates reliably in temperate and subtropical climates. Northern deployments exposed to sub-zero conditions or equatorial sites above 55°C require thermal planning or enclosure modifications. Fixed focus at 0.5m minimum object distance simplifies installation—no focus drift, no manual calibration required.

Integration & Compatibility

The QNV-6012R1 supports ONVIF Profile S/G/T, ensuring compatibility with third-party IP camera management platforms and network video recorders from various vendors. HTTPS/SSL encryption, digest and login authentication, IP filtering, and 802.1X EAP-TLS/EAP-LEAP support meet enterprise security requirements. Wisenet SUNAPI HTTP API and Hanwha's open platform integration provide flexible system architecture for mixed-vendor deployments. Video output supports up to 6 concurrent users with configurable multi-profile streaming—useful for simultaneous access by control center operators, mobile monitoring apps, and archival processes.

Alarm I/O (1 input, 1 output) enables integration with access control systems, door locks, or emergency notification frameworks. Event-triggered recording ensures the camera logs activity on MicroSD or sends alerts to the NVR when motion or tampering occurs. Refer to camera selection guidance and PoE infrastructure planning for network topology and power budgeting details.

Applications

Deploy the QNV-6012R1 at building perimeters, parking facilities and structures, public transit platforms, industrial loading docks, and any outdoor location where durability and reliable low-light capture take priority over ultra-high resolution. Its 2MP baseline and wide field of view suit area monitoring and general surveillance; high-resolution facial identification or vehicle license-plate capture require higher megapixel density.

Frequently Asked Questions

Q: Can the QNV-6012R1 withstand direct rain and snow?

A: Yes. IP66 rating means dust and water spray—including rain and snowmelt—won't degrade performance. Ensure proper installation angle to avoid pooling water on the dome.

Q: What is the actual storage capacity with 128GB MicroSD at H.265?

A: Approximately 4–7 days of 24/7 continuous recording, depending on scene complexity (static scenes compress more efficiently). For longer retention, pair with an NVR or cloud archive.

Q: Does the QNV-6012R1 work with Milestone XProtect or other third-party VMS platforms?

A: Yes. ONVIF Profile S/G/T compliance ensures broad third-party VMS compatibility. Verify your specific VMS supports ONVIF before deployment.

Q: Is 20 meters of IR range sufficient for a 50-meter perimeter?

A: No. For long-range outdoor perimeter monitoring beyond 20 meters, consider a higher-megapixel camera or a variant with longer IR range from the Hanwha surveillance line.

Q: What is the warranty on the QNV-6012R1?

A: Refer to your specialty distributor for specific warranty terms, as coverage varies by region and purchase channel.

Q: Can the QNV-6012R1 be mounted on a pole rather than a building wall?

A: Yes. The dome housing supports standard wall, ceiling, and pole mounts. Confirm electrical conduit routing and PoE cable strain relief before deployment.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QNV-6012R1 is a straightforward durability-first pick for outdoor surveillance in physically exposed or vandalism-prone sites. Its IK10 impact rating and IP66 sealing eliminate the need for protective housings or reinforced enclosures, cutting installation cost and complexity. H.265 codec efficiency is real—you're looking at 40–60% bandwidth/storage savings over H.264 on a 24/7 deployment, which matters immediately when budgeting for NVR capacity or PoE switch scaling.

Technical Highlights:

• 120dB WDR + 0 Lux IR capability: Combined with SSDR and BLC, this handles extreme lighting swings—bright midday sunlight adjacent to deep shadows from overhangs or trees—without losing forensic detail. The 0 Lux IR mode guarantees usable black-and-white footage in total darkness, eliminating the gamble on outdoor low-light performance.
• PoE at 6W typical consumption: Minimal power draw means you can run 30+ cameras per standard PoE+ injector without exceeding power budgets. No separate 12VDC or 24VAC runs; a single Cat5e run handles power and data, simplifying roughin and reducing field termination labor.
• MicroSD edge storage (up to 128GB): Local backup provides continuity if your network or NVR goes offline. At H.265, 128GB yields roughly 5 days of continuous recording—adequate for incident recovery without relying on central archival being online 24/7.
• On-camera motion and tampering alerts: Four polygon zones for motion detection and automatic tampering detection mean the camera acts as a semi-autonomous sentinel. Local I/O can trigger sirens, strobe lights, or door locks immediately without waiting for a backend server to process alerts.

Deployment Considerations:

• 20m IR range ceiling: Sufficient for building perimeters, parking lots, and plaza-scale coverage. Long-range fence lines (50+ meters) or rural sites require higher focal length or external IR illumination—consider it a hard limit upfront.
• Fixed 2.8mm lens: 113.7° field of view is wide, but you cannot zoom or refocus post-installation. Mount location and angle must be finalized during roughin. No motorized lens means no remote PTZ capability—static coverage only.
• 2MP baseline: Adequate for area monitoring and general surveillance. If facial identification, license-plate OCR, or fine detail forensics are requirements, this camera underperforms—you'd step up to 4MP or higher resolution within the outdoor IP camera range.

Best suited for sites where physical resilience (vandal resistance, weather immunity) and mid-range area coverage matter more than zoom capability or ultra-high resolution. Parking structures, transit platforms, building facades, and industrial perimeters where the camera absorbs impact and weather without flinching—that's the QNV-6012R1's wheelhouse.
