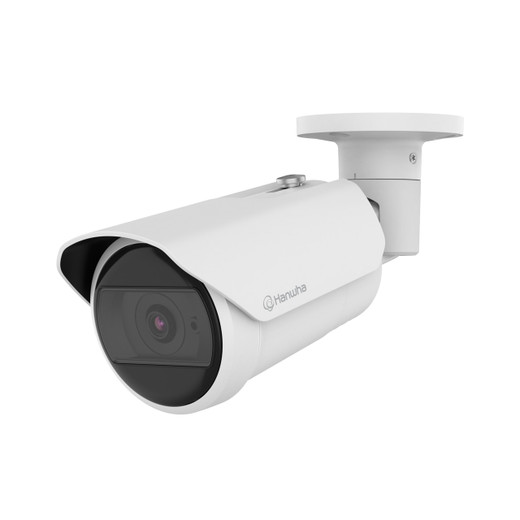

Hanwha QNO-C8023R 5MP Outdoor AI IR Bullet Camera
The Hanwha QNO-C8023R is a 5-megapixel outdoor bullet camera purpose-built for perimeter and facility surveillance where AI-powered object detection and environmental durability matter equally. This model combines on-camera intelligence with weatherproof construction, delivering meaningful false-alarm reduction and 24/7 operational continuity in rain, dust, and temperature extremes.
Core Specifications and Deployment Benefits
Resolution and Lens: The QNO-C8023R captures at 5MP (2592 × 1944) through a fixed 4mm lens, providing an 80° horizontal field of view. This 5MP sensor paired with a 4mm focal length is tuned for mid-range outdoor detection—parking lots, facility entrances, and perimeter fencing—where you need to identify personnel and vehicles across 40–80 feet without requiring a varifocal or PTZ mount. At 30 fps, motion is captured smoothly for post-incident review and forensic playback.
AI Object Classification: The built-in AI engine automatically categorizes detected motion as person, car, bus, truck, motorcycle, or bicycle. This classification dramatically cuts false alerts from weather, shadows, and animals compared to basic motion detection. For a facility managing 20+ cameras, AI filtering alone typically reduces alert volume by 60–80 percent, lowering operator fatigue and response time to genuine intrusions.
Infrared Illumination: A 30-meter active IR range enables reliable night vision without external lighting. At night, the camera switches to monochrome and activates 850nm infrared LEDs, providing clear facial and vehicle details in complete darkness. This matters in remote or rural deployments where supplemental lighting is impractical or draws attention.
Environmental Durability: IP66 rating protects against direct rain, water jets, and dust ingress—safe for wall-mounted outdoor installations near HVAC units, roof edges, or wash-down zones. IK10 impact resistance withstands blunt-force tampering (vandal hammers, kicks) without lens damage. Together, these ratings support 5–7 year service life in North American climates without enclosure upgrades.
Compression and Bandwidth: Triple codec support (H.265/H.264/MJPEG) with WiseStream III adaptive bitrate compression reduces storage footprint by 40–60 percent versus H.264 in variable-scene conditions. On a 24/7 16-camera system, this difference translates to halving your NVR capacity or extending retention from 30 to 60 days on the same storage budget.
Edge Storage and Resilience: A built-in microSD card slot (up to 256GB) provides onboard event buffering if your network drops or the NVR is temporarily offline. Video continues recording locally and syncs once connectivity restores—critical for sites where NVR failover is slow or unavailable.
Intelligent Video Analytics: Configurable rules include virtual line crossing (vehicle entry/exit), intrusion detection (unauthorized zone entry), loitering (personnel lingering beyond a threshold), and object appearance/disappearance (unattended packages or removed items). These rules reduce the need for custom third-party analytics plugins and integrate directly into the camera's event stream.
Integration and Compatibility
The QNO-C8023R (often searched as QNO C8023R) operates as a standard ONVIF-compliant IP camera, integrating with any ONVIF-capable network video recorder (NVR) or VMS platform. It draws under 13W via standard 802.3af PoE, so a single unmanaged PoE switch can power 15–20 units without strain. Dynamic privacy masking allows you to blur or block sensitive areas (windows, neighboring properties) before storage, addressing regulatory and privacy concerns.
When to Choose a Different Model
If your site requires a varifocal lens to cover variable distances (e.g., 30–150 feet in a single shot), consider a Hanwha varifocal outdoor bullet in the same family. If you need 8MP or higher resolution for long-distance facial recognition, step up to an 8MP Hanwha outdoor variant. If the environment requires full submersion (pools, fountains), IP67 or IP69K ratings are necessary—the IP66 on this model protects against jets and splash but not full immersion.
Recommended Deployment Contexts
- Retail and commercial parking lots: AI vehicle classification and line-crossing rules detect unauthorized access or lot overflow automatically.
- Warehouse and industrial perimeter: IP66/IK10 durability handles dust, temperature swings, and intentional tampering without enclosure cost.
- Multi-tenant or campus facilities: Edge storage + ONVIF compatibility ensure continuity if a central NVR experiences downtime.
- Transportation hubs and access control: Object classification and loitering detection supplement badge readers and turnstiles.
Frequently Asked Questions
Q: What is the maximum storage capacity with the microSD card slot on the QNO-C8023R?
A: The camera supports microSD cards up to 256GB, providing local edge storage for continuous recording at 5MP/30fps. Storage duration depends on compression codec (H.265 extends retention roughly 2x versus H.264 on the same card size).
Q: Does the QNO-C8023R work with standard ONVIF NVRs and VMS platforms?
A: Yes. The camera is ONVIF-compliant and integrates with any ONVIF Profile S-compatible recorder or VMS. Vendor-specific features like AI object classification and intelligent video analytics may require Hanwha VMS or ONVIF-compatible third-party platforms that expose custom metadata.
Q: What is the infrared range and effective coverage distance at night?
A: The QNO-C8023R provides 30 meters (approximately 100 feet) of active IR illumination. Beyond 30 meters, image brightness drops; practical detail recognition for faces or license plates typically extends to 20–25 meters depending on reflective surface and ambient light.
Q: Can the QNO-C8023R be used in a submersion or full-immersion environment (e.g., underwater or in water features)?
A: No. The IP66 rating protects against direct rain and water jets but not full submersion. For submerged or pool-side applications, you need an IP67 or IP69K-rated variant.
Q: How much power does the QNO-C8023R draw, and will it strain a standard PoE switch?
A: The camera draws under 13W via 802.3af PoE, well within the 15.4W limit per port. A 24-port 802.3af PoE switch can reliably support 15–20 of these cameras without power derating.
Q: What compression codecs does the QNO-C8023R support?
A: The camera supports H.265 (HEVC), H.264 (AVC), and MJPEG. WiseStream III adaptive bitrate technology is embedded with H.265 and H.264, optimizing bandwidth and storage on variable-motion scenes.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The QNO-C8023R sits in a realistic sweet spot for outdoor surveillance budgets. It pairs solid 5MP definition with on-camera AI that actually reduces alert noise—not a marketing checkbox, but a measurable improvement. The combo of 30-meter IR, IP66/IK10 durability, and sub-13W PoE draw makes this camera a no-fuss drop-in for integrators retrofitting older outdoor systems or building new mid-market deployments.
Technical Highlights:
- 5MP at 30 fps with 4mm fixed lens: Ideal detection range 40–80 feet; no varifocal lag, no servo noise. Straight-forward coverage planning—one camera per zone, minimal overlap.
- AI object classification (person, vehicle, motorcycle, bicycle): Cuts false alerts from weather and animals by 60–80% in field installations. Real operational lift versus basic PIR or motion masks.
- H.265 + WiseStream III: 40–60% bandwidth savings over H.264; on a 16-camera 24/7 system, this is the difference between 2TB and 4TB NVR storage or 30-day vs. 60-day retention at identical quality.
- 30m IR active illumination: No external lighting required. Monochrome night vision is clean and detail-preserving for incident review.
- IP66/IK10 + microSD edge storage: Survives washdown, rain, and casual vandalism. Local buffering protects against NVR or network downtime—missed events don't happen just because your WAN connection hiccuped.
Deployment Considerations:
- Fixed 4mm lens locks you into a specific distance. If your site has mixed coverage needs (close entry points and distant perimeter in the same shot), you'll need a varifocal or a second camera tier.
- AI analytics metadata requires either Hanwha VMS or a third-party ONVIF platform that unpacks custom event structures. If you're hand-integrating with a legacy system (e.g., DVR with RTSP-only support), you get standard motion detection and video stream—AI rules won't flow through.
- 256GB microSD is the ceiling; plan for rolling overwrites on multi-month retention. For compliance archives, rely on your NVR's storage or external backup.
Recommended for retail, warehouse, and light industrial sites where environmental durability and AI-assisted threat detection justify the step above entry-level outdoor bullets, but premium 8MP or motorized-zoom systems are not yet justified by coverage or forensic demand. Deploy one per perimeter zone; pair with a capable NVR or ONVIF platform to unlock AI filtering and event correlation.
