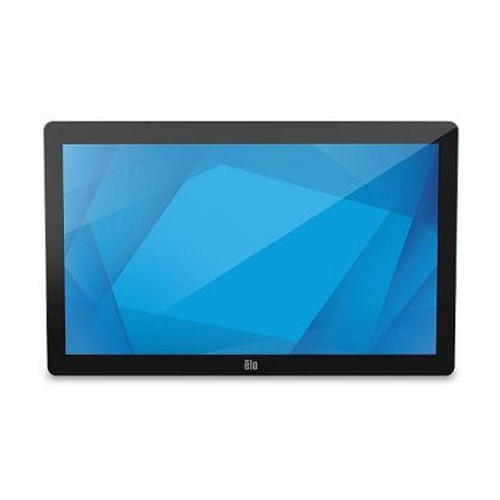

ELO Touch E992622 22-inch Full HD Projected Capacitive Touch Monitor
Overview
The ELO Touch E992622 is a 22-inch Full HD LCD display purpose-built for point-of-sale, kiosk, and interactive display applications where accurate touch response and glare control matter. This model combines a 1920x1080 resolution panel with projected capacitive 10-point touch capability, delivering reliable multi-touch input across the entire screen surface. The zero-bezel design minimizes visual interruption in wall-mounted or cabinet-mounted configurations, while the anti-glare coating reduces reflections in brightly lit retail or warehouse environments — a practical advantage when the display sits near windows or under fluorescent lighting.
The E992622 ships without a stand, making it a natural fit for custom mounting frameworks or VESA-compatible arms. USB connectivity drives the touch controller, simplifying integration into legacy and modern systems alike. Dual video inputs (VGA and HDMI) provide backward compatibility with older signage controllers while supporting current HD sources. This flexibility means you're not locked into a single video path during a retrofit or upgrade.
Key Features
- 1920x1080 Full HD Resolution: Delivers crisp text and graphics on a 22-inch diagonal without the cost or complexity of 4K. Practical for menu boards, transaction screens, and warehouse management displays where pixel density is sufficient and storage bandwidth is not a concern.
- Projected Capacitive 10-Touch: Recognizes up to ten simultaneous touch points, enabling multi-finger gestures and responsive pinch-zoom interactions. Unlike resistive touch, capacitive sensing doesn't require pressure and won't degrade from repeated use — important for high-traffic kiosk or self-service scenarios.
- USB Controller: Touch input routes through a single USB connection, eliminating the need for a separate serial or proprietary interface. Standard USB enumeration means most operating systems (Windows, Linux) recognize the device as a Human Interface Device (HID) without special drivers.
- Anti-Glare Coating: Reduces reflections and improves readability in environments with overhead lighting or natural daylight. Not an optical coating that would add thickness — this is a surface treatment that cuts specular glare by dispersing light.
- Zero-Bezel Design: Minimizes the frame around the active display area. In multi-display configurations or tight cabinet layouts, zero-bezel reduces dead space and creates a cleaner visual aesthetic. If you're tiling displays, the narrower bezels lessen the visual gap between panels.
- VGA and HDMI Video Inputs: Dual connectivity paths ensure compatibility with older analog systems and contemporary HDMI sources. You can switch inputs without powering down, useful during testing or failover scenarios.
Integration & Compatibility
The E992622 operates as a standard USB HID device for touch input and a dumb display for video. No proprietary drivers or manufacturer software are required on most systems. The VESA mounting pattern (100x100mm) aligns with standard monitor arms and wall brackets, though you'll need to source or fabricate a stand separately since this model ships as a panel only.
Touch input via USB means integration with POS middleware, kiosk software, or custom applications that already recognize standard mouse/pointer events. If your application requires calibration or pressure thresholds, check the manufacturer's configuration utility — some touch controllers expose these settings via USB HID reports.
Frequently Asked Questions
Q: Does the E992622 require a separate stand or mounting hardware?
A: No stand is included. The display uses VESA 100x100mm mounting holes, compatible with standard monitor arms, wall mounts, or custom brackets. You'll need to source or integrate your own mounting solution.
Q: Can I use both VGA and HDMI simultaneously, or do I need to switch between them?
A: The E992622 supports both inputs, but displays from only one source at a time. You can hot-switch between VGA and HDMI without restarting, but the display won't combine or mirror both sources.
Q: Does the USB touch controller require drivers?
A: On Windows, Linux, and macOS, the touch controller enumerates as a standard USB Human Interface Device. Most modern operating systems recognize it without drivers. If you're using legacy or specialized software, verify HID compatibility with your application vendor.
Q: Is the anti-glare coating durable in high-touch environments?
A: The anti-glare coating is a surface treatment. In public kiosk or heavy-use scenarios, routine cleaning with a soft microfiber cloth preserves clarity. Abrasive cleaners or rough wiping can degrade the coating over time.
Q: What is the warranty coverage for the E992622?
A: The E992622 is sourced factory-new with full warranty coverage. Review the manufacturer's warranty documentation or your sales agreement for specific terms and duration.
Q: Will the E992622 work with my existing retail or warehouse POS system?
A: If your system supports USB HID input and VGA or HDMI video, integration is straightforward. Verify that your POS or kiosk application recognizes multi-touch gestures if you plan to use them; some legacy systems expect only single-point touch or mouse emulation.
The ELO Touch E992622 sits in a practical middle ground: it's not an industrial-grade rugged display, and it's not a consumer monitor. It's a purpose-built POS/kiosk screen, and that focus matters. The 22-inch 1920x1080 panel is standard for transaction or menu-board work, and the projected capacitive 10-touch overlay handles multi-gesture input without the wear concerns of resistive touch. What makes this model worth considering is the USB-only connectivity for touch — no serial port, no proprietary controller board. That simplicity cuts integration cost and troubleshooting time in busy retail or warehouse environments.
Technical Highlights:
- Projected Capacitive 10-Point Touch: Multi-touch support lets you build intuitive pinch-zoom and two-finger gesture interfaces. Unlike resistive touch screens, there's no pressure requirement and no degradation from repeated contact — a real advantage in high-traffic kiosk deployments.
- USB HID Controller: Touch input is enumerated as a standard Human Interface Device, meaning Windows, Linux, and most embedded systems recognize it immediately. No driver hunting, no proprietary software stacks. Swap the E992622 into an existing kiosk frame and the touch usually works within seconds.
- Anti-Glare Surface Treatment: Reflection reduction is valuable in warehouse or retail lighting. You don't get perfect eliminator of glare, but the coating cuts specular bounce enough that sunlit display areas remain readable without a brightness spike.
- Zero-Bezel Form Factor: If you're building multi-display walls or fitting the screen into a tight cabinetry layout, the narrow bezel minimizes dead space. For single-display kiosk applications, the aesthetic benefit is secondary — the real win is easier mounting into custom frames.
Deployment Considerations:
- No Stand Included: The E992622 comes as a panel only. You'll need to budget for a VESA arm, wall bracket, or custom mount. That's not a flaw — it's by design, because integrators often have standardized mounting solutions already. But don't assume it arrives ready to stand on a desk.
- Legacy VGA is Still Useful: The dual VGA/HDMI input means you can support older signage controllers or POS terminals without HDMI adapters. In a retrofit scenario, that backward compatibility is a time-saver. But if your environment is all HDMI or DisplayPort, the VGA input adds no value — just plan accordingly.
- Touch Calibration and Maintenance: USB HID touch is straightforward, but if your application needs pressure thresholds or gesture remapping, check whether the manufacturer supplies a configuration utility. The anti-glare surface can accumulate fingerprints and dust in high-traffic zones — factor in regular cleaning cycles to maintain touch sensitivity and optical clarity.
The E992622 is a solid fit for new kiosk builds, menu-board upgrades, or transaction systems where durability and multi-touch responsiveness are the priority. Skip it if you need industrial IP ratings, extreme temperature operation, or HDMI-only connectivity with no legacy support. For standard POS or warehouse self-service interfaces where off-the-shelf mounting and simple USB integration matter, it delivers what it promises without unnecessary complexity.
